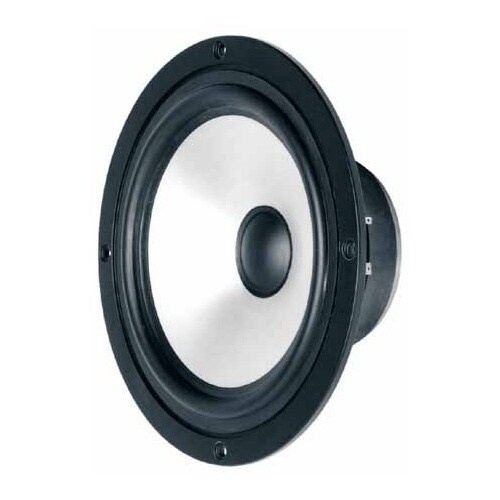

The AL 170's lightweight aluminum cone ensures a fast pulse response, making it suitable for high-fidelity audio applications. Its design allows for integration into various cabinet sizes, with recommended volumes ranging from 10 liters to 30 liters in both closed and bass reflex configurations, achieving tuning frequencies between 39 Hz and 79 Hz. This versatility makes the AL 170 an excellent choice for audiophiles and speaker builders aiming for superior low-midrange performance in their custom speaker designs.
Technical Data
- Rated power: 70 W
- Maximum power: 100 W
- Nominal impedance Z: 8 Ohm
- Frequency response: fu–10000 Hz
(fu: Lower cut-off frequency depending on cabinet) - Mean sound pressure level: 88 dB (1 W/1 m)
- Opening angle (-6 dB): 51°/4000 Hz
- Excursion limit: ±11 mm
- Resonance frequency fs: 38 Hz
- Magnetic induction: 1.1 T
- Magnetic flux: 520 µWb
- Height of front pole-plate: 6 mm
- Voice coil diameter: 25 mm
- Height of winding: 18 mm
- Cutout diameter: 150 mm
- Net weight: 1.2 kg
- D.C. resistance Rdc: 5.6 Ohm
- Mechanical Q factor Qms: 3.88
- Electrical Q factor Qes: 0.43
- Total Q factor Qts: 0.39
- Equivalent volume Vas: 34 l
- Effective piston area Sd: 133 cm²
- Dynamically moved mass Mms: 13 g
- Force factor Bxl: 6.9 T m
- Inductance of the voice coil L: 0.9 mH
- Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
