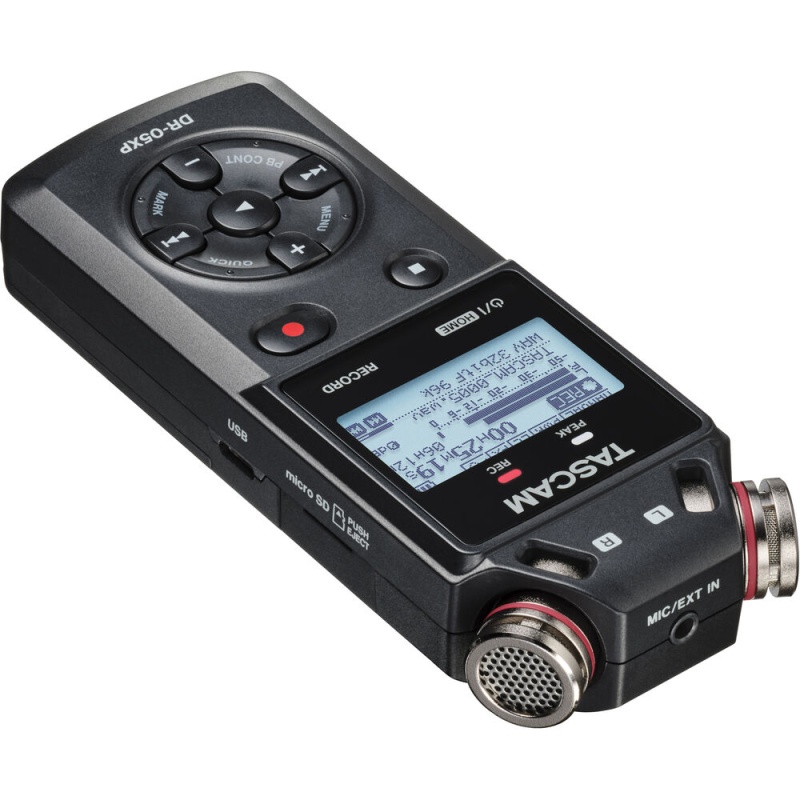

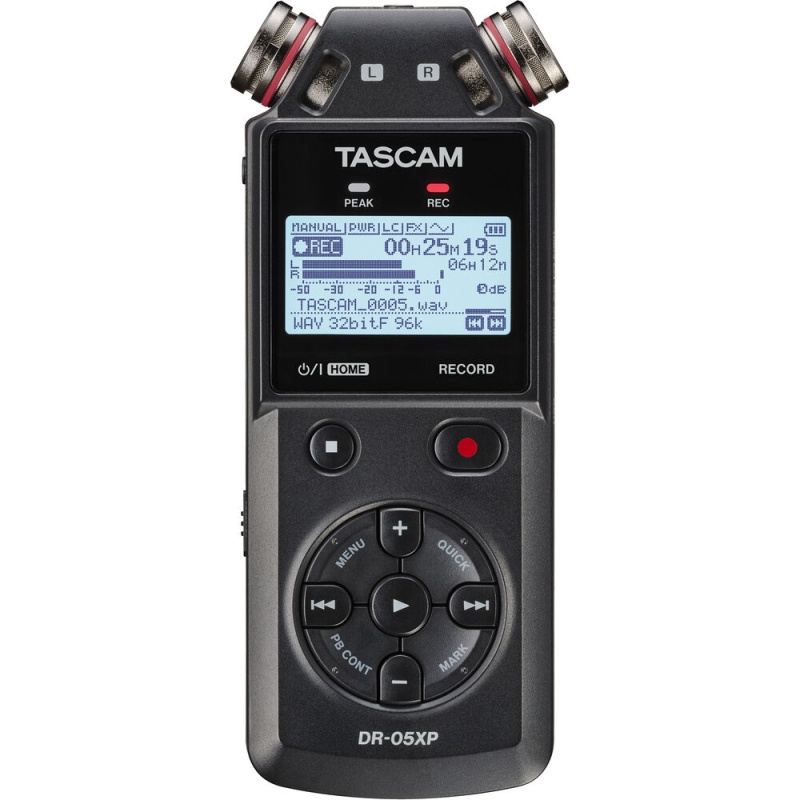

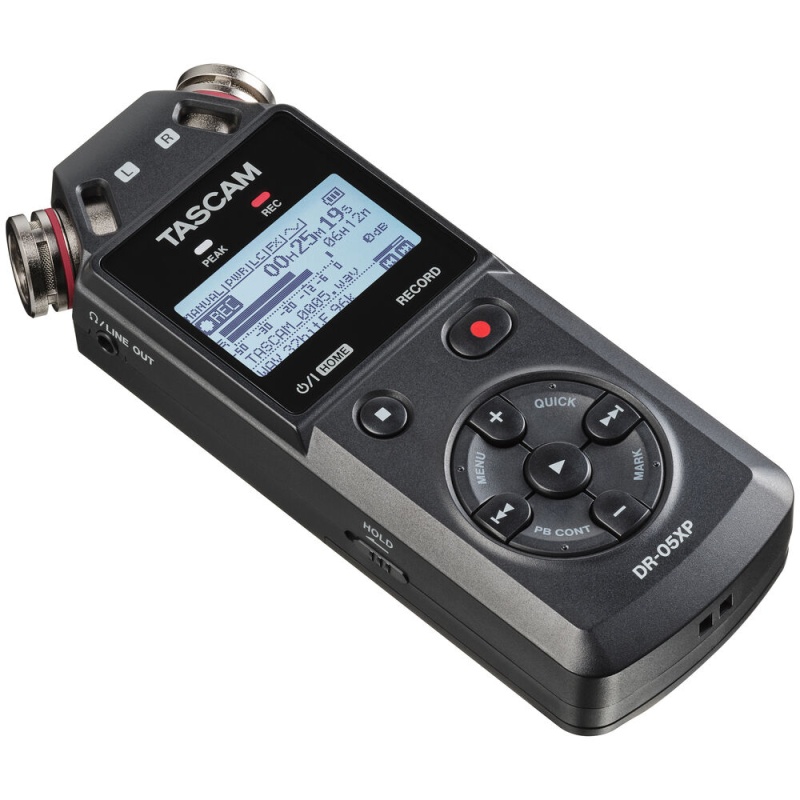

The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

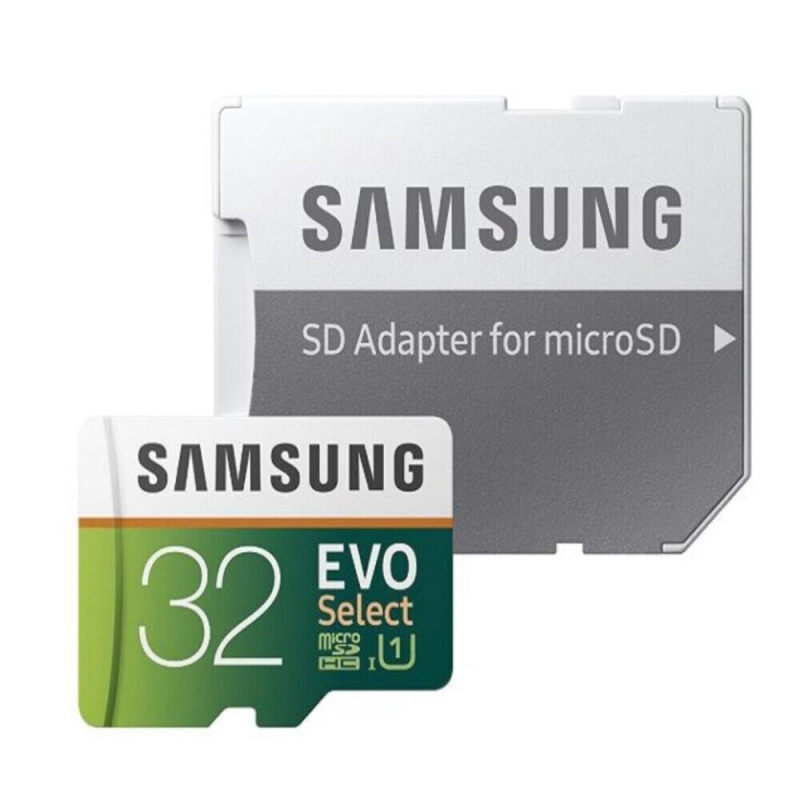

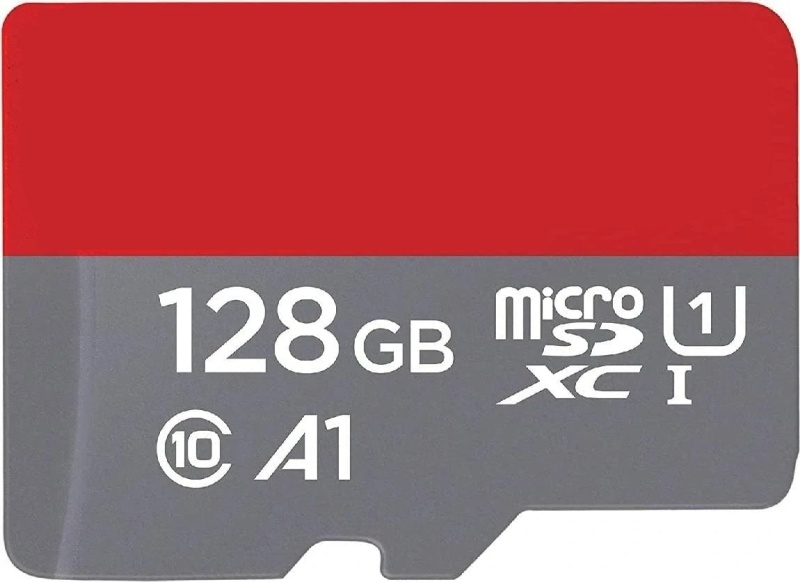

Features at a Glance Key Features 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3 Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL) 2-in/2-out USB-C audio interface for recording directly to your computer Up to 17.5 hours of operation with 2 x AA alkaline batteries Additional Features microSDXC (up to 512GB) cards can be used as recording media USB Type-C port Stereo mini jack for external stereo microphones (provides plug-in power) / External line input Support multiple menu languages (ENG / FRA / DEU / ITA / ESP / RUS / PRT / JPN / CHI / KOR) Long recordings as MP3 files possible Various recording function (Auto rec, Self timer, Pre rec) Overdubbing function Limiter and Peak reduction Four low-cut filter levels (40 / 80 / 120 / 220Hz) Auto Tone output for use with DSLR camera Reverb effect for vocal and instrument resonance Mark function 128×64 pixel graphic LCD with backlight Tripod mounting point attaches to any standard tripod Stereo mini line output and headphone output Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments) Playlist function Built-in monaural speaker makes it easy to check your recordings Chromatic tuner for tuning musical instruments before recording Spec Description Recorder specifications Recording media/file systems microSD cards / microSDHC cards / microSDXC cards (up to 512 GB) Recording/playback formats WAV (BWF) Sampling frequency 44.1 kHz / 48 kHz / 96 kHz Quantization bit depth 16-bit / 24-bit / 32-bit float MP3 Sampling frequency 44.1 / 48 kHz Quantization bit depth 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps Maximum number of input channels 2 Maximum number of recordable tracks 2 Analog audio input/output ratings MIC/EXT IN jack (can provide plug-in power) Connector 3.5mm (1/8″) stereo mini jack Input Impedance 18 kΩ or more (when plug-in power is turned off) 2 kΩ or more (when plug-in power is turned on) Nominal input level – 20 dBV Maximum input level -4 dBV PHONES/LINE OUT jack Connector 3.5mm (1/8″) stereo mini jack Output impedance 12 Ω Nominal output level – 14 dBV (10kΩ loaded) Maximum output level +2 dBV (10kΩ loaded) Maximum output 20 mW + 20 mW (32 Ω load) Working impedance 16 – 250Ω Built-in Speaker Output 0.3W (monaural) USB Connector USB Type-C Format USB 2.0 High Speed Mass Storage Class USB 1.1 Full Speed Audio Class USB Audio Sampling rate 44.1 / 48 kHz Quantization bit depth 24-bit Number of inputs 2 channels (output from this unit) Number of outputs 2 channels (input to this unit) General Power 2AA batteries (alkaline or NiMH) USB bus power (5V/0.5A) from a computer, etc. TASCAM PS-P520U AC adapter (sold separately) Power consumption 1.7 W (maximum) Weight 174 g / 0.384 lb (including batteries) 126 g / 0.278 lb (not including batteries) Operating temperature range 0 – 40 °C / 32 – 104 °F Dimensions 60.5 x 142.3 x 27 mm 2.39 x 5.61 x1.07 inch (W x H x D, including protrusions) Included items DR-05XP x1 Safety guide (including warranty) x1 TASCAM ID registration guide x1 *Note:0 dBV=1 Vrms, 0 dBu=0.775 Vrms
Recording duration Recording format Card capacity (hours:minutes) 32 GB 128 GB WAV 16-bit (stereo) 44.1 kHz 49:20 197:20 48 kHz 45:20 181:20 96 kHz 22:40 90:40 WAV 24-bit (stereo) 44.1 kHz 32:56 131:44 48 kHz 30:16 121:04 96 kHz 15:04 60:16 WAV 32-bit float (stereo) 44.1 kHz 24:40 98:40 48 kHz 22:40 90:40 96 kHz 11:20 45:20 MP3 (stereo/ mono) 32 kbps 44.1/48 kHz 2209:36 8838:24 64 kbps 44.1/48 kHz 1104:48 4419:12 96 kbps 44.1/48 kHz 736:32 2946:08 128 kbps 44.1/48 kHz 552:24 2209:36 192 kbps 44.1/48 kHz 368:16 1473:04 256 kbps 44.1/48 kHz 276:08 1104:32 320 kbps 44.1/48 kHz 220:56 883:44 Battery operation time (continuous operation) Batteries Rec/ play File format (recording setting) Operation time in hours Note Using alkaline batteries (EVOLTA) Recording WAV, 96 kHz, 32-bit float About 14.5 With built-in stereo mic input WAV, 96 kHz, 24-bit About 15.5 With built-in stereo mic input WAV, 44.1 kHz, 16-bit About 17.5 With built-in stereo mic input MP3, 44.1 kHz, 128 kbps About 13 With built-in stereo mic input MP3, 48 kHz, 320 kbps About 11 With built-in stereo mic input Playback WAV, 96 kHz, 32-bit float About 11 Using headphones About 11 Using built-in speaker WAV, 96 kHz, 24-bit About 14 Using headphones About 14 Using built-in speaker WAV, 44.1 kHz, 16-bit About 16.5 Using headphones About 16.5 Using built-in speaker MP3, 44.1 kHz, 128 kbps About 16.5 Using headphones About 16.5 Using built-in speaker MP3, 48 kHz, 320 kbps About 15.5 Using headphones About 15.5 Using built-in speaker Using NiMH battery (eneloop) Recording WAV, 96 kHz, 32-bit float About 11.5 With built-in stereo mic input WAV, 96 kHz, 24-bit About 12.5 With built-in stereo mic input WAV, 44.1 kHz, 16-bit About 14.5 With built-in stereo mic input MP3, 44.1 kHz, 128 kbps About 13 With built-in stereo mic input MP3, 48 kHz, 320 kbps About 10 With built-in stereo mic input Playback WAV, 96 kHz, 32-bit float About 10 Using headphones About 10 Using built-in speaker WAV, 96 kHz, 24-bit About 13 Using headphones About 12 Using built-in speaker WAV, 44.1 kHz, 16-bit About 14 Using headphones About 15 Using built-in speaker MP3, 44.1 kHz, 128 kbps About 13.5 Using headphones About 13 Using built-in speaker MP3, 48 kHz, 320 kbps About 13.5 Using headphones About 13 Using built-in speaker Recording: JEITA recording time Playback: JEITA music playback time Note: The battery operation times (during continuous operation) could vary depending on the media being used.
Audio Performance Frequency Response 20–20 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA) 20–22 kHz +0/−1 dB (MIC/EXT IN to LINE OUT, 48 kHz, JEITA) 20–40 kHz +0/−1.5 dB (MIC/EXT IN to LINE OUT, 96 kHz, JEITA) Total harmonic distortion ratio (THD+N) 0.01% or less (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA) Note: JEITA indicates conformance to JEITA CP-2150
Information Latest version info Firmware V1.01 ASIO Driver for Windows V1.00 Firmware V1.01 The TIMER REC function would not work. This has been fixed. Notices About Products 06/30/2025 02/03/2025 01/29/2025
Documents Manuals 01-25-2025 – 01-23-2025 110.21 KB Firmware / Software Instructions 02-03-2025 0.98 KB 02-03-2025 34.29 KB Firmware 02-03-2025 1.12 MB Software 01-24-2025 10.53 MB Compatibility 02-12-2025 232.82 KB
