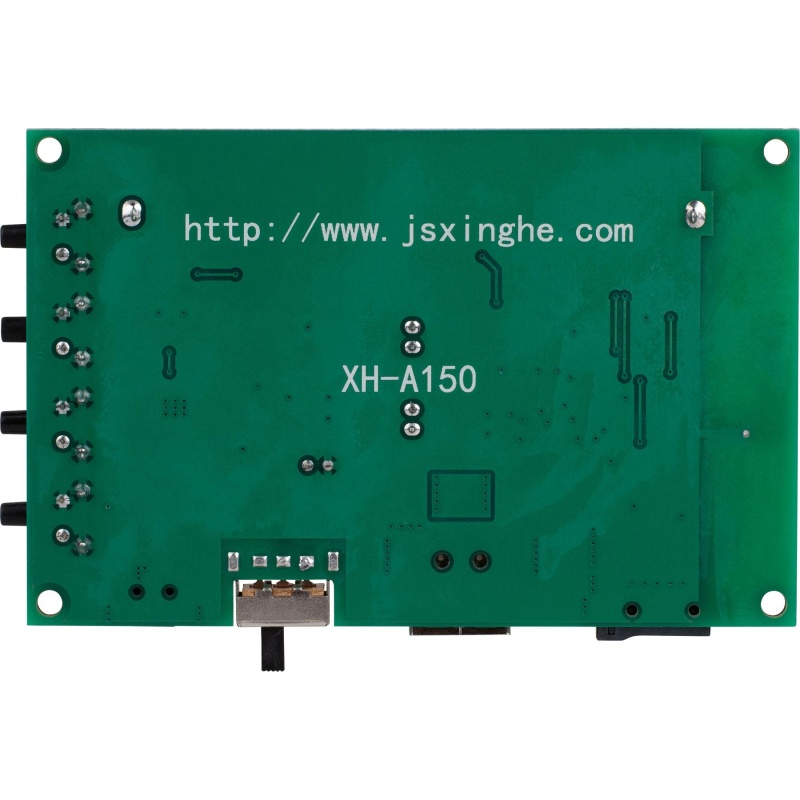

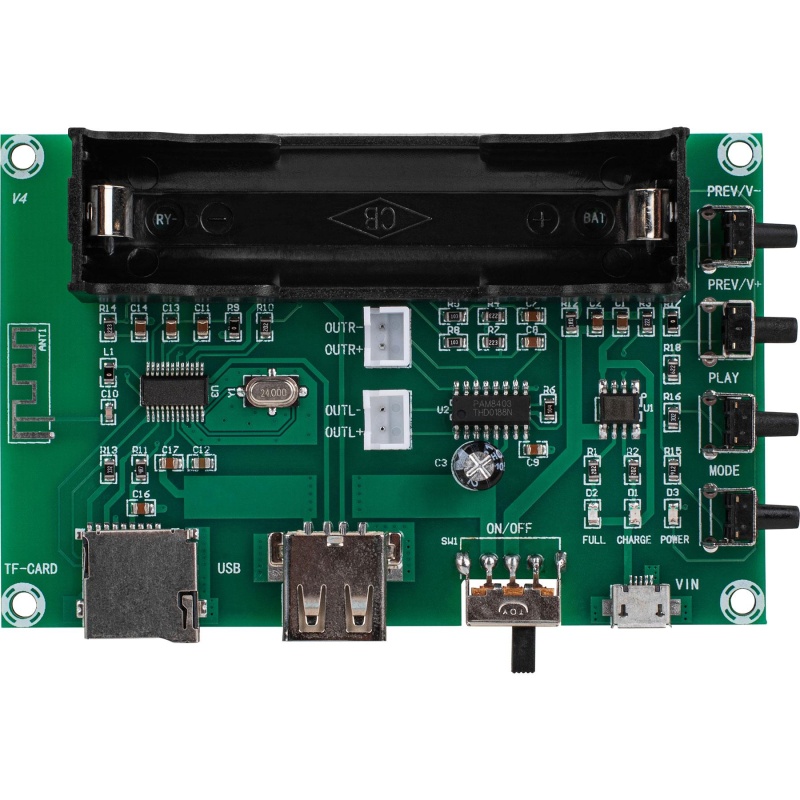

Build a portable speaker or amplifier with this Parts Express 2 x 5W digital amp board. It has 2 channels and maximum output power of 5W+5W. Bluetooth 4.0 wireless playback pairs using the Bluetooth name HW-BT; remove flash drives to connect to a phone.
Built-in pushbutton switches control volume, previous and next song, pause/play, and mode. For playback without a smartphone, the board has two flash drive ports: 1 USB A and 1 micro SD/TF.
The onboard 18650 Li-Ion battery holder requires an 18650 Li-Ion battery of at least 2600mAh, sold separately. Working voltage is 4-5V DC. Recharge through the micro USB port using USB 5 VDC power. The board plays while charging, though charging time increases; the built-in power switch helps save battery power when not in use.
Specifications: PAM8403 amp chip; output impedance 4-8 ohm; board size 3.9" x 2.48" (99 x 63); total dimensions 4.1" W x 2.72" D x 0.98" H (102 x 69 x 25mm); board mounting hole spacing to center 2.28" and 3.66" (58mm and 93mm).
