30 Watt Powered Bluetooth Speaker Package with 2-1/2" Full-Range DriversParts express has put together all of the electronic components needed to build your own 30 watt powered Bluetooth speaker with 2-1/2" full-range drivers. This kit is perfect for building a custom self-contained Bluetooth enabled speaker from the ground up or simply incorporating audio capability into any existing enclosure. Thanks to the convenience, ease of assembly, and great sound this kit is sure to impress! Recommended enclosure volume for this package is 0.21 ft³ tuned to 70 Hz using 2 ports that are 1" diameter x 3.25" long.
Note: This is version of this package does require a connection to a power source. Part # is a wireless battery powered version of this kit.
Features:Includes a Bluetooth amplifier, battery board, batteries, wires, power supply, and drivers Dayton Audio PC68-4 drivers feature smooth response with true full-range reproductionThe Dayton Audio KAB-215 amplifier provides 2 x 15 watts and includes BluetoothPowered by 3 x 2,600 mAh Li-Ion batteries for long lasting run timeCustomer Comments:"For the prices it is probably the best sounding speakers on the market" - Byron M ⋆⋆⋆⋆⋆
"Great all-in-one solution for building your unique wireless speaker project." - John M ⋆⋆⋆⋆⋆
"Great and very loud! Just threw these in an intake tube for a vehicle and they sound amazing despite not having the proper size "box"." - Lloyd B ⋆⋆⋆⋆⋆
Customer Projects:
About the Amplifier BoardThe Dayton Audio KAB-215v2 2 x 15 watt Bluetooth amplifier board delivers high quality sound without drawing a lot power. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.
California Prop 65: This product can expose you to chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
About the Drivers The Dayton Audio PC68-4 2-1/2" full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. The Dayton Audio PC68-4 driver will deliver high fidelity and low distortion from compact applications.
About the BracketThe KAB-AB aluminum bracket makes it easy to securely mount the KAB boards and improve space efficiency . This aluminum bracket supports vertical and horizontal mounting configurations to satisfy different installation requirements.

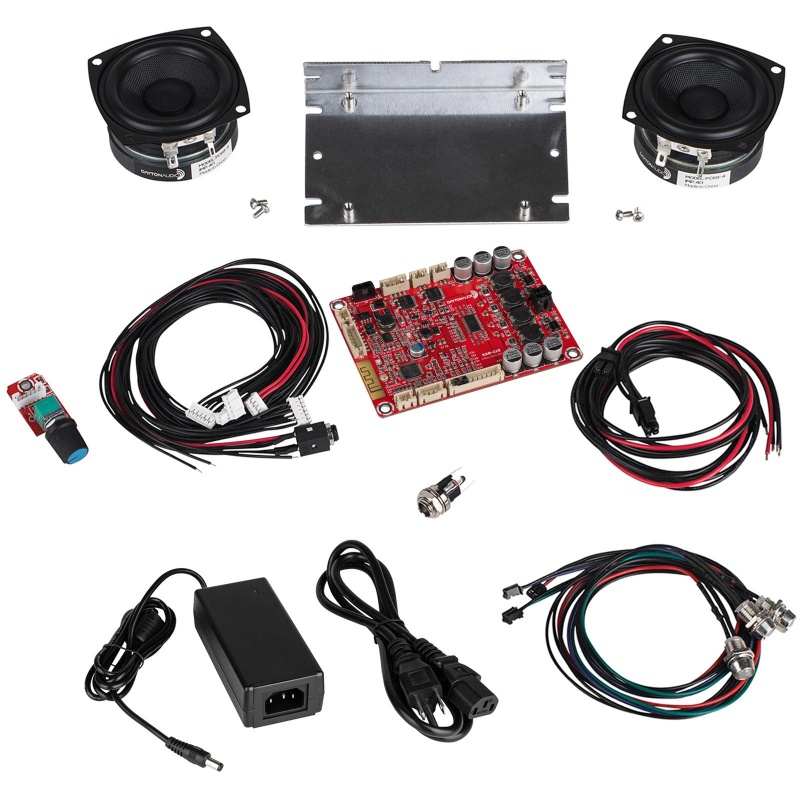

Kit Components:Part #QtyDescription1Dayton Audio KAB-215v2 2 x 15W Class D Audio Amplifier Board with Bluetooth 5.0 2Dayton Audio PC68-4 2-1/2" Full-Range Poly Cone Driver1Dayton Audio KAB-AB L-type Aluminum Bracket for Bluetooth Amplifier Boards115V 4A DC Power Supply AC Adapter with 2.1 x 5.5mm Center Positive (+) Plug1Dayton Audio KAB-FC Function Cables Package for Bluetooth Amplifier Boards1Dayton Audio KAB-LED Red/Green/Blue LED Package for Bluetooth Amplifier Boards12.1mm Panel Mount DC Barrel Power Jack1#6 x 3/4" Deep Thread Pan Head Screws Black 16 Pcs. Driver Specifications: Impedance: 4 OhmRe: 3.8 OhmLe: 0.29 mHFs: 117.1HzQms: 2.49Qes: 0.87Qts: 0.65Mms: 1.7gCms: 1.07mm/NSd: 21.2 cm²Vd: 4.2 cm³Bl: 2.4 TmVas: 0.7 litersXmax: 2.0 mmVC Diameter: 0.75"SPL: 86.1 dB @ 2.83V/1mRMS Power Handling: 20 WattsUsable Frequency Response: 120 - 17,000 Hz
