The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300′ (100 m) and are available in two frequency bands – DE2 (470-530 MHz) and EE1 (530-590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

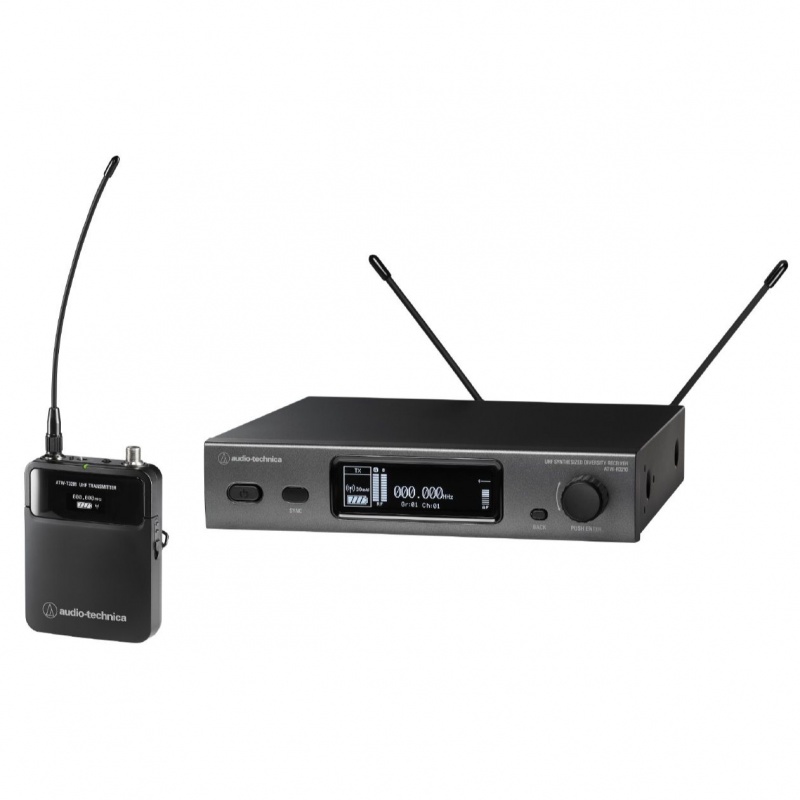

Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica’s new rugged cH-style screw-down 4-pin connector for secure connection to A-T’s cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.
CONSUMER ALERT Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at .
FEATURES
Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz) Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered True Diversity operation reduces dropouts Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference Frequency scan and IR sync functionality for ease of setup Dual-mode receiver display can switch between standard view or a performance view that highlights key metering Transmitters and receivers include OLED screens for optimal readout of key settings and alerts Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries Antenna power available for powered antennas and other in-line RF devices Ground-lift switch helps eliminate audible hum caused by ground loops Balanced and unbalanced audio output jacks Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Minimum Frequency Step: 25 kHz Modulation Mode: FM Maximum Deviation ATW-T3201: plus/minus 38 kHz (THD:10%) ATW-T3202: plus/minus 36 kHz (THD:10%) Dynamic Range ATW-T3201 Mic input: > 115 dB (A-weighted), typical ATW-T3201 Inst input: > 112dB (A-weighted), typical ATW-T3202: > 115 dB (A-weighted), typical Total Harmonic Distortion
RECEIVER SPECIFICATIONS
Receiving System True Diversity Image Rejection 60 dB nominal RF Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohms termination) Antenna Power 12 V DC, 160 mA (combined) Maximum Output Level XLR, balanced: +14 dBV 6.3 mm (1/4″), unbalanced: +8 dBV Antenna Input BNC-type, 50 ohms Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27″ x 7.52″ x 1.71″ (W x D x H) Net Weight 1100 g (38.8 oz), without accessories Accessories Included Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
BODY-PACK TRANSMITTER SPECIFICATIONS
RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms Spurious Emissions Following Federal and National Regulations Input Connections Four Pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V High-pass (low-freq. roll-off) 125Hz, 12dB/octave Batteries Two 1.5V AA, not included Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. Dimensions 64 mm x 82 mm x 23 mm (W x D x H) 2.52″ x 3.22″ x 0.91″ (W x D x H) Net Weight 102 g (3.6 oz), without batteries
