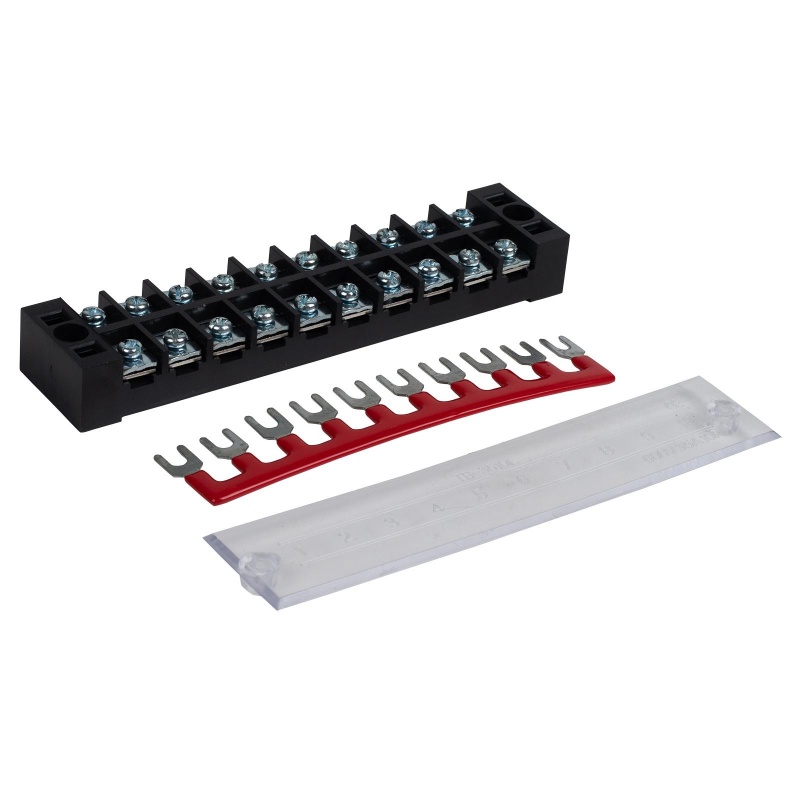

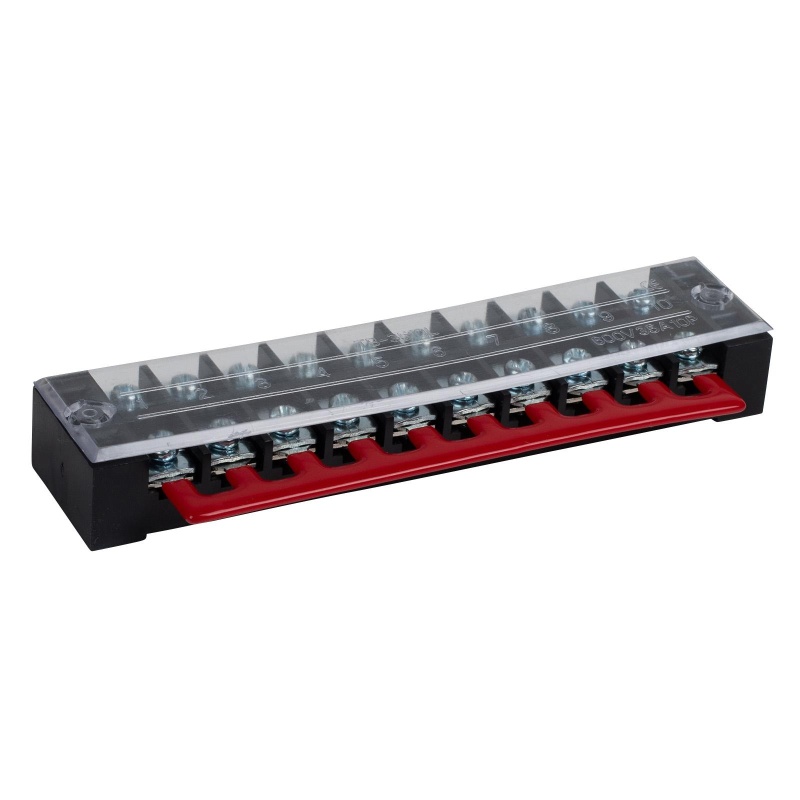

This Parts Express 35A dual-row barrier terminal block helps power multiple automotive accessories or home electronics from one hot wire. It has 10 positions and includes a clear plastic cover and a red jumper bar with a rubber coating.
Connect all ten screws on one side with short jumper wires or the included jumper bar to run a hot wire from a fuse box or positive battery terminal. The opposite side then provides ten hot terminals; keep the accessories’ total amperage at or below 35A. Ground each accessory to the nearest metal chassis screw, and fuse the main hot wire as recommended. The cover and jumper-bar coating help prevent accidental contact with metal materials.
Specifications: Dimensions: 139 mm (5.5") L x 30.2 mm (1.19") W x 19.9 mm (0.76") H; individual terminal gap: 10.22 mm (0.4"); pitch: 12 mm (0.47"); screws: M4; maximum voltage: 600 V; maximum current: 35A; maximum temperature: 110° C (230° F); poles: 10.
