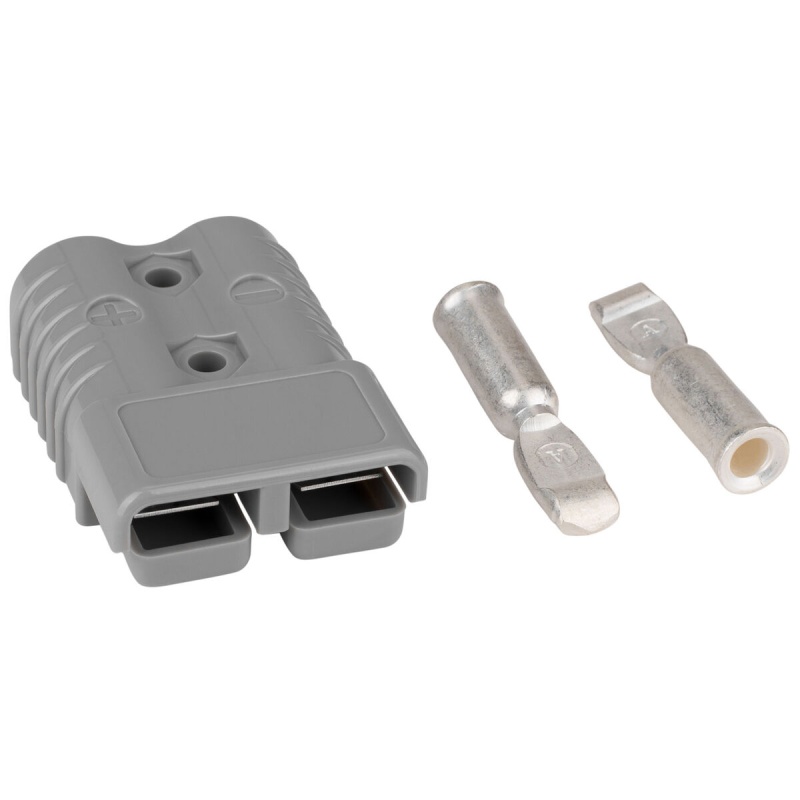

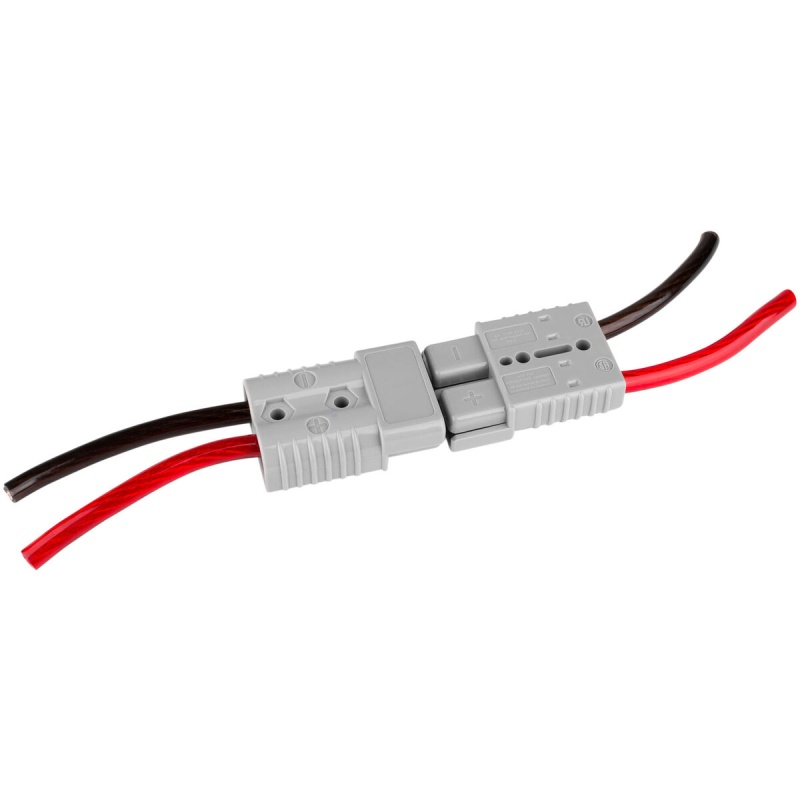

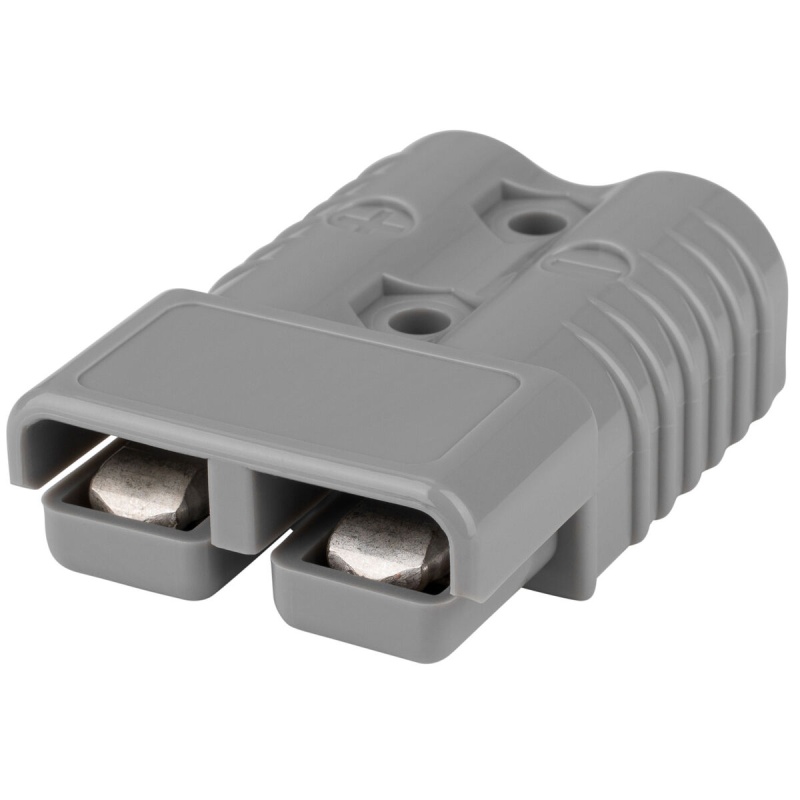

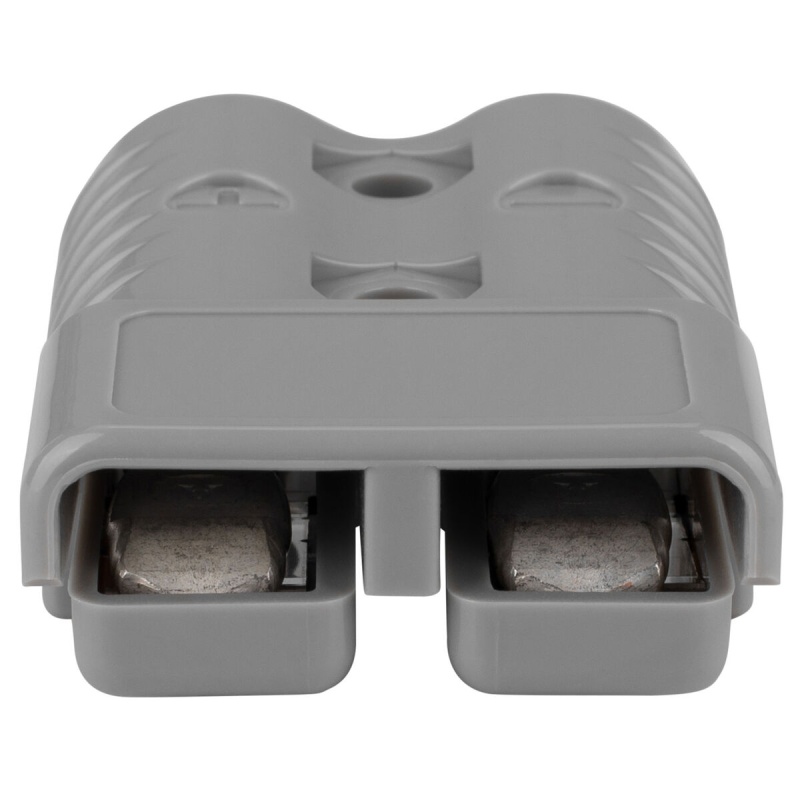

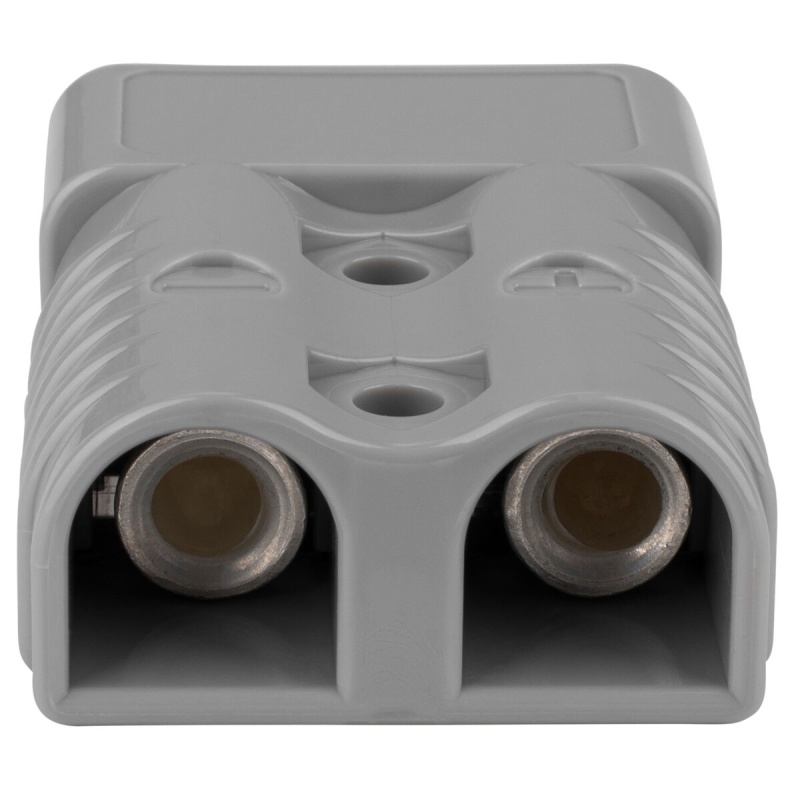

These high-current breakaway DC battery connectors are perfect for use as a quick disconnect for car audio amplifier power, RV and marine applications, and other high-current DC charging circuits. Requires two kits for operation, sold individually. Dimensions: 3.13" L x 2.19" W x 1" H.
Specifications
CE amperage*/voltage rating: 175 amps/600 VDC Operating temperature range: -20° to 105° C Current rating*: 175 amps on 1/0 AWG wire produces 30° C rise Insulation with standing test voltage (volts, dc): 2200dc Maximum wire insulation diameter: 0.75"/19 mm Average contact retention force: Approximately 300 lbs. Average contact resistance: With 1-3/4" (45 mm) of 1/0 AWG wire 100 µΩ Vibration resistance: Excellent Mating cycles: 10,000 / For disconnect use only Impact resistance: High Environmental restrictions: Protected-no hydrocarbon fluids Average mating and unmating force: 25 lbs. (11.25 kg) * For largest wire or cable size
