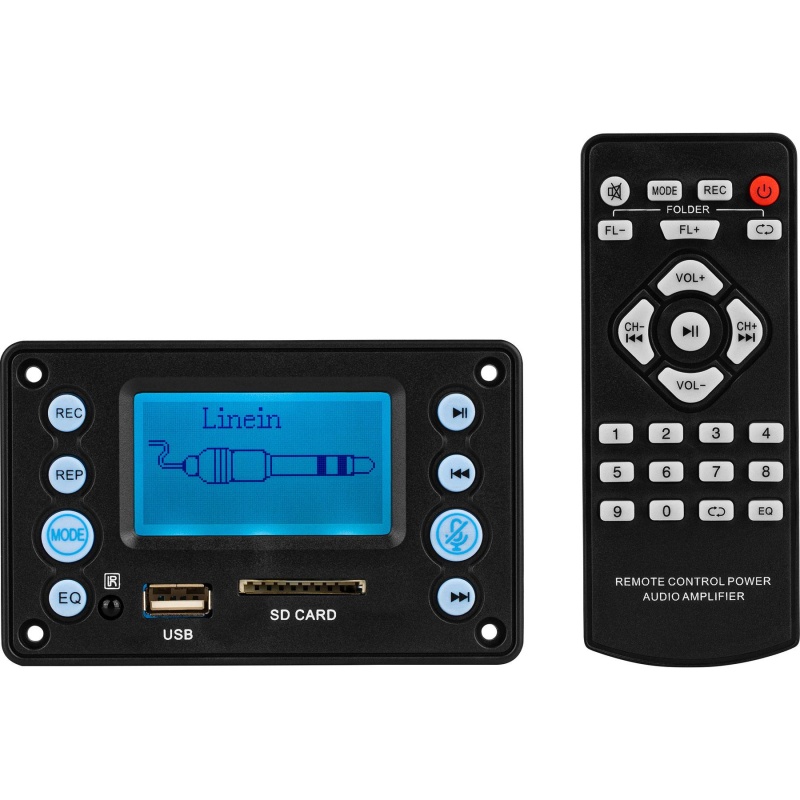

Why only add Bluetooth to an audio DIY project when FM radio, media player, Aux in, and Bluetooth are all available in one preamp module with LCD display? Hook up the audio output using the included cable to an amp board. The preamp includes a two-conductor cable with two connectors that hooks up to a 5 VDC source and the FM antenna. Use the connector that matches the power polarity and cut the wire to the desired length needed. Use the other connector for the FM antenna socket. Cutout a 2" x 3.4" rectangle hole and mount the Bluetooth module into your project, and you now have an FM radio, media player, and Bluetooth available with faceplate controls. You must use the included remote to type in a specific FM stations frequency. Use the pause/play button to search and save stations. If you need to stop the search before the end of the FM band press pause/play again.
Play APE FLAC WAV WMA MP3 audio files through this Bluetooth 4.2 preamp module with a USB/SD flash memory card and adjust the sound with preset EQ levels built into the module. Adjust the sound wirelessly with a Bluetooth EQ app on a smartphone for the line input and Bluetooth mode, or use the included IR remote to control volume, play, FM station selection, and source functions. Feel free to record from the line-input or FM radio to a flash memory card. The audio DIY project possibilities for this all-in-one faceplate preamp Bluetooth module are only limited by your imagination.
Note: USB jack is not a charging port.

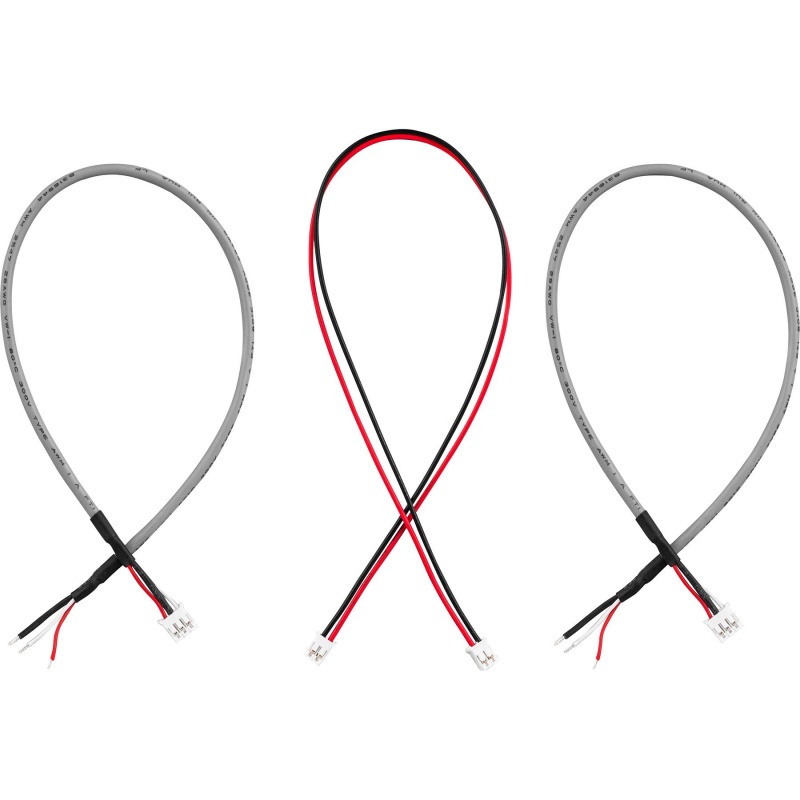

Specifications: • Outer dimensions: 4.2" W x 2.6" H x 0.84" D • Cutout dimensions: 3.4" W x 2" H • Input voltage: 5 VDC @ 100mA • Included cables: One 12" 3-conductor Aux output, one 12" 3-conductor Aux input and one 12" FM antenna/power cord with two connectors. Verify the correct polarity for the power connector before cutting the wire to the desired length • Maximum memory card: 32G • Recording format: MP3.
