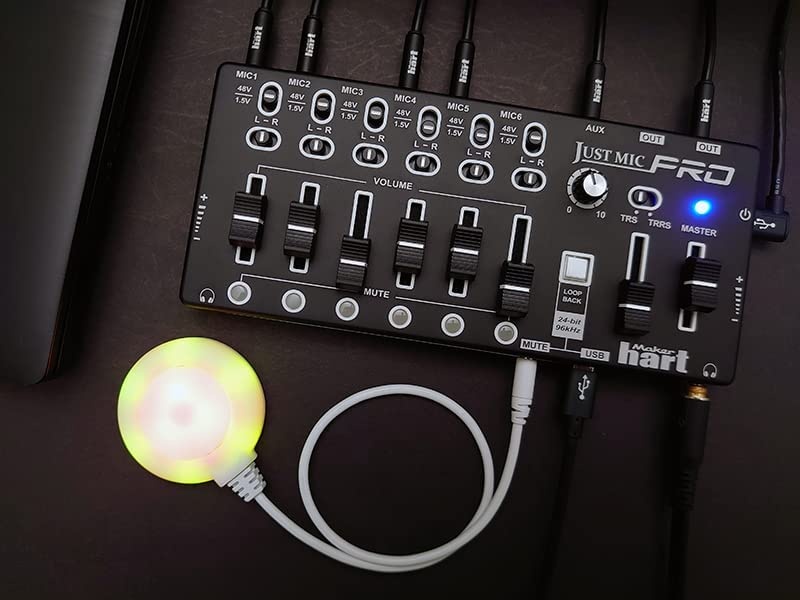

48V/1.5V phantom power – This allows simultaneously connecting six 3.5mm condenser microphones, dynamic microphones or electret condenser microphones. USB Audio output/input – 24 bit/96kHz USB Audio supports the audio transmission of computer and some mobile devices with OTG technology. TRS/TRRS mode – Switch this mode as required. TRS allows connecting output to speakers, while TRRS allows connecting output to cell phones or computers. LOOP BACK key – When there is USB input audio signal, press LOOP BACK to turn on the green light; USB audio can be played through OUT/headphones. USB mute module – When you’re using the USB output audio signal, this button can be pressed to quickly mute the USB output audio signal. SP-MIXER-6 Mini Microphone Mixer 6 Channels Microphone input / Portable Phantom Power / Audio Interface for Podcast Living stream
Features : Adding to our growing family of mini microphone audio mixers, we welcome the SP-MIXER-6. This is more advanced version of SP-MIXER-4. The SP-MIXER-6 can input 6 microphone channels at the same time for your in-person or Zoom/hybrid Court Reporting session.
SP-MIXER-6 has a built-in multiple functions:
TRS/TRRS mode – Switch this mode as required. TRS allows connecting output to speakers, while TRRS allows connecting output to cell phones or computers. LOOP BACK key – When there is USB input audio signal, press LOOP BACK to turn on the green light; USB audio can be played through OUT/headphones. USB mute module – When you’re using the USB output audio signal, this button can be pressed to quickly mute the USB output audio signal. 48V/1.5V phantom power mode – This allows simultaneously connecting six 3.5mm condenser microphones, dynamic microphones or electret condenser microphones.
USB Audio output/input: 24 bit/96kHz USB Audio supports the audio transmission of computer and some mobile devices with OTG technology.
NOTE: USB mute module only controls computer audio output. This function will not work if USB is not connected to a computer.

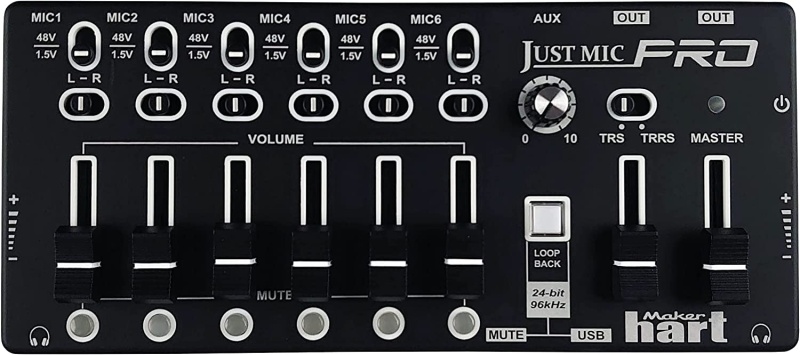

Panel Functions :
Specifications : Amplification gain: 45dBm
Current consumption: 500mA (max)
Power supply: USB 5V/1A
Exterior dimensions: 182 × 80.2 × 24mm / 7.16″ × 3.15″ × 0.94″
Weight: 210 g/ 7.4oz (main body)

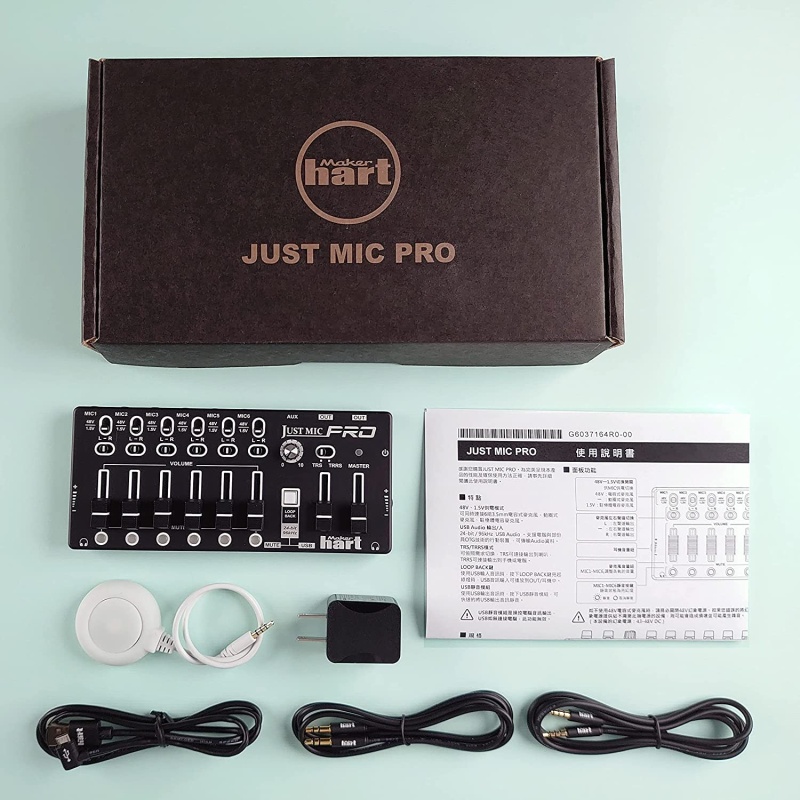

Accessories :
USB transformer 5V1A ×1
L-type USB power cord ×1
TRRS-to-TRRS audio cord ×1
TRS-to-TRS audio cord ×1
USB Mute Module ×1
User Manual ×1
Quick Operation: Connect headphones/speakers/microphone to audio inputs/outputs. Connect USB to computer or mobile device, and connect USB Mute to the USB mute module. Connect USB power. Adjust the volume of each track/main volume. NOTE: Microphone(s) must be kept away from the speakers, to avoid interference.
TRS/TRRS mode : Switch this mode as required. TRS allows connecting output to speakers, while TRRS allows connecting output to cell phones or computers.
USB Mute Module: When you’re using the USB output audio signal, this button can be pressed to quickly mute the USB output audio signal.
NOTE: USB mute module only controls computer audio output. This function will not work if USB is not connected to a computer.
USB Audio Transmission / LOOP BACK USB Audio output/input:
24 bit/96kHz USB Audio supports the audio transmission of computer and some mobile devices with OTG technology.
NOTE : Supports Windows 7/8/10 and Mac OS. Supports some mobile devices with OTG technology.
LOOP BACK key:
When there is USB input audio signal, press LOOP BACK to turn on the green light; USB audio can be played through OUT/headphones.
NOTE : LOOP BACK can be used to play or stop USB audio input
48V/1.5V power supply mode:
This allows simultaneously connecting six 3.5mm condenser microphones, dynamic microphones or electret condenser microphones.
NOTE : When using a dynamic microphone, switch to 0V; otherwise the microphone may be damaged.
