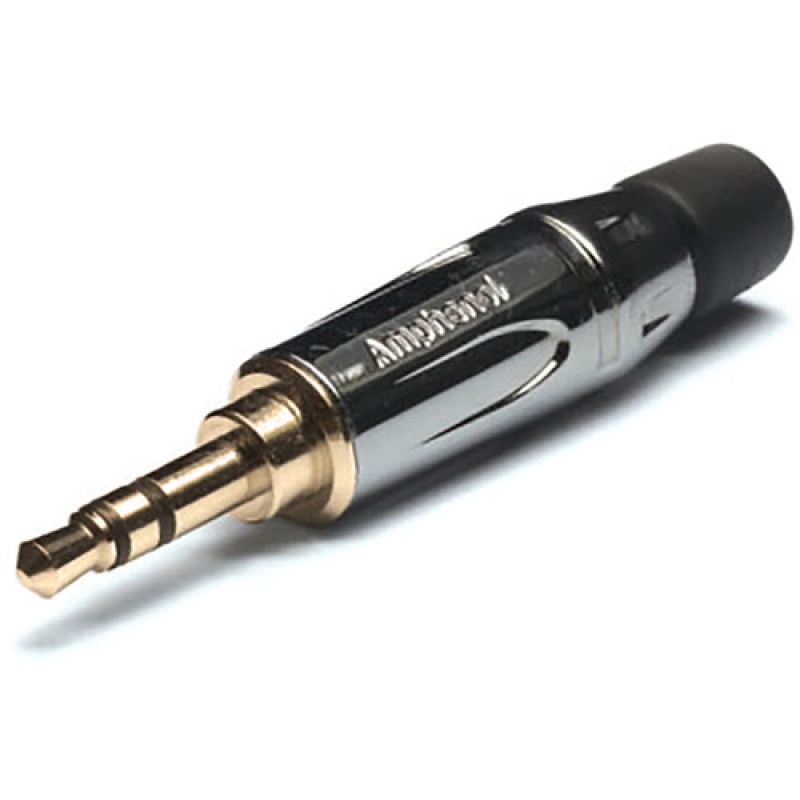

Key Features Diecast Shell For Cables 2.5 to 5mm Diameter Precision-Machined Contacts Gold-Plated Contacts Quick Assembly 3 Piece Design Flexible Grommet Cable Protection RoHS Compliant The black chrome K Series 3.5mm 3-Pole Stereo Phone Plug Connector by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. With an extended shaft over other connectors in the K series, it features a diecast shell with precision-machined , gold-plated contacts. The connector is offered with a flexible grommet to help protect the cable. This K series connector is RoHS compliant.
Materials Shell Material Diecast Zinc Alloy EZDA No.3 Finish Connector Shell Finish: Black chrome Insulator PA66 Bushing Santoprene Contacts Brass Plating Gold flash General Contacts 3-pole Termination Solder Wire Gauge AWG 18 – 1mm² Flammability Rating Rating of Insulated Plastics: UL94V-0 Solderability Complies with IEC 68-2-20 Environmental Complies with EU RoHS 2 Directive 2011/65/EU Electrical Characteristics Maximum Current Capacity >0.5 mA (depends on mating connector and cable) Contact Resistance ≤ 20 mOhm (depends on mating connector and cable), typical Insulation Resistance Initial: > 200 MOhm After damp heat test: > 100 MOhm Voltage Test voltage AC RMS: 250 VAC Environment Protection Class IP40 Operating Temperature -4 to +149°F / -20 to 65°C Mechanical Characteristics Insertion / Withdrawal Force 3 N (depends on mating connector) Mechanical Operation 1000 mating cycles Cable O.D. 0.118 to 0.196″ / 3 to 5 mm Weight 0.3 oz / 8 g Packaging Info Package Weight 0.02 lb Box Dimensions (LxWxH) 2.75 x 2.7 x 0.3″
