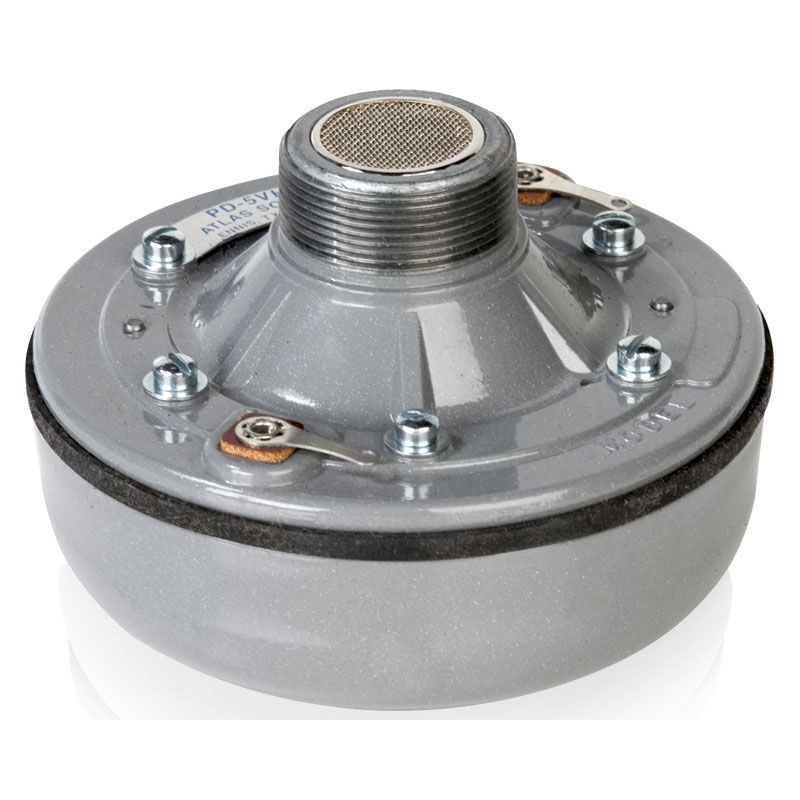

The 40W, 16 ohm AtlasIED PD-5VH compression driver provides a powerful, intelligible, extended frequency response to large format horns. The 2" voice coil is machined to the optimum tolerances. Equipped with an Alnico V-DG magnet, the PD-5VH offers maximum temperature stability and optimizes output for yielding the lowest amplifier power requirements. The driver also provides terminals direct to the voice coil. The units are finished in gray, baked epoxy and mounts to large format horns that terminate in standard 1-3/8"-18 male coupling thread.
Specifications: • Power rating: 40W @ 16 ohms • Plane wave frequency response: 110 - 4,100 Hz • Sensitivity: 110.7 • Impedance: 16 ohms • Voice coil: 2" • Dimensions: 5.125" H x 4.375" W.
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
