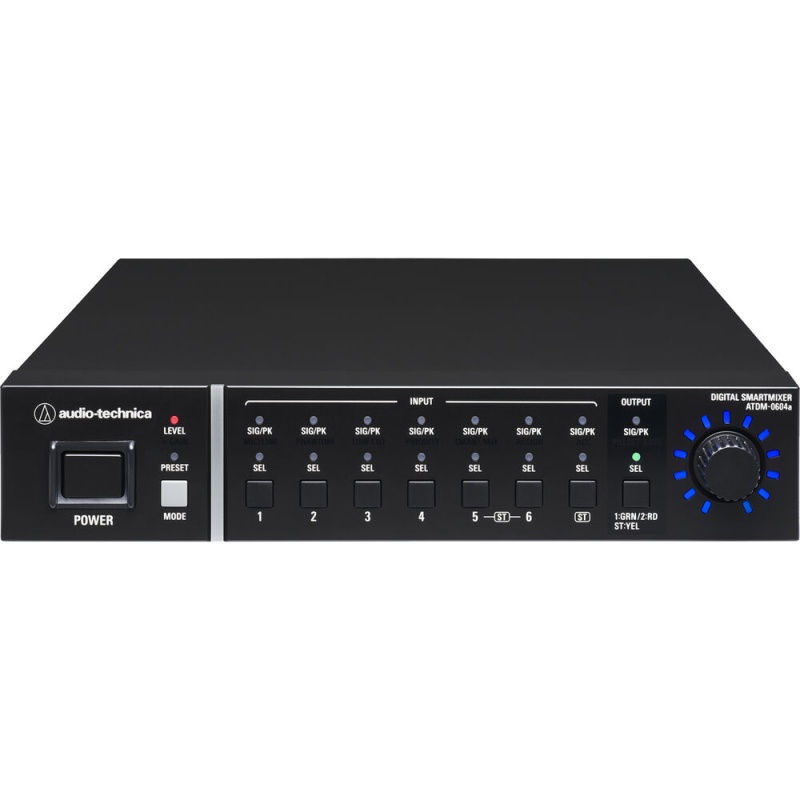

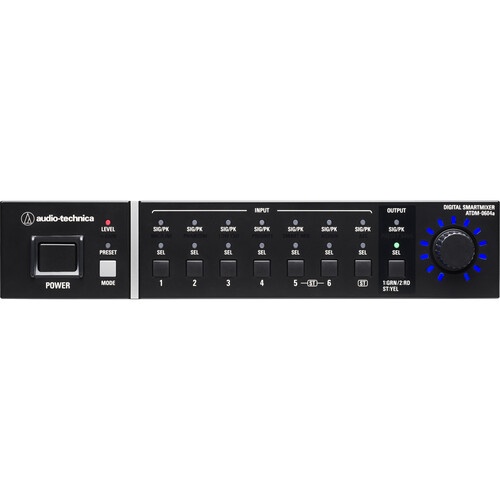

Key Features 6-Channel SmartMixer with Gain Sharing 6 Mic/Line Inputs + 1 Stereo Input 2 Balanced Outputs + 1 Stereo Out Two-Channel USB Audio Interface 4-Band EQ, Comp, De-Esser for Each Input 8-Band Feedback Suppressor 12-Band PEQ, Comp, Limiter on Output Front-Panel and Web Remote Control Link up to Eight Mixers Includes Euroblock Connectors Audio-Technica ATDM-0604A Overview Audio professionals in search of a compact, yet feature-rich digital mixer will be impressed with the Audio-Technica ATDM-0604a, an automatic digital SmartMixer with advanced functionality well suited for meetings, courtroom proceedings, conferences, soft codec applications, radio and TV broadcasts, and other applications involving the use of multiple microphones or other media inputs.

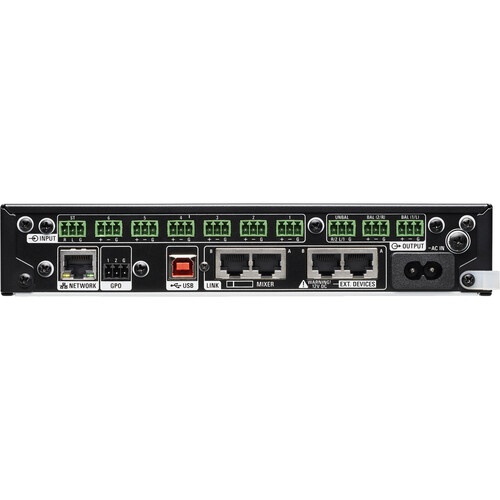

Building upon the success of the original, the ATDM-0604a features improved echo and noise-cancellation performance, remote LED control of ES954 hanging microphone arrays, support for up to eight mixers sharing audio buses, expanded compatibility with Audio-Technica LINK-enabled products, and mic/line support on input channels. What’s more, the ATDM-0604a includes web remote functionality via Windows PC, Mac, iOS, or Android devices. The Audio-Technica ATDM-0604a includes eleven Euroblock connectors, rackmount hardware, rack screws, a power cord, and four rubber feet.
What’s New Improved echo and noise-cancellation performance Remote LED control of ES954 hanging microphone array via the GPO terminal Cascade connectivity for up to eight mixers sharing audio buses and SmartMix controls Expanded compatibility with a wide variety of Audio-Technica LINK-enabled products Mic/line-level support for input channels 1 to 6 At a Glance 6 mic/line inputs and 1 unbalanced stereo input 2 balanced outputs and 1 unbalanced stereo output USB audio input/output (1 stereo input, 1 stereo output) Remote LED control of ES954 hanging microphone arrays using the GPO terminal SmartMixer with selectable gain sharing or gate mode High-performance echo canceler for each input channel Noise cancellation that can be assigned to any output channel Built-in 4-band EQ and compressor/de-esser for each input channel Eight 8-band feedback suppressors that can be assigned to mic/line inputs and any output channel Built-in 12-band PEQ, compressor, and limiter for each output channel Dedicated Audio-Technica LINK terminals are compatible with a wide variety of Audio-Technica LINK-enabled products Audio input/output settings can be configured from the front panel in applications without a computer Advanced settings can be configured using the web browser or Smart Mixer Manager app GUI in applications with a computer IP Protocol-based external remote control Audio-Technica ATDM-0604A Specs Frequency Characteristics 20 Hz to 20 kHz (Mic -16 dBu): ±1.0 dB 20 Hz to 20 kHz (Mic -60 dBu): +1.0/-2.0 dB 20 Hz to 20 kHz (Line 24 dBu): ±1.0 dB 20 Hz to 20 kHz (Line -40 dBu): +1.0/-2.0 dB Dynamic Range 110 dB or Higher, (A-Weighted/ST) Signal-to-Noise Ratio (SNR) 90 dB or Higher, (A-Weighted/ST) Headroom 20 dB or Higher Input Noise Input Referred Noise: -126 dBu or Less (Rs = 150 Ohms, DIN) Common Mode Rejection Ratio 80 dB or Higher, 1 kHz Residual Noise -86 dBu or Less, (A-Weighted) Maximum Gain 64 dB Channel Separation -80 dB or Less (1 kHz Unity) THD 0.03% or Less (1 kHz Unity) Analog Inputs Mic 1-6: 0 dBu (Maximum) Mic 1-6 Unity: -40 dBu Line 1-4: +10 dBu (Maximum) Line 1-4 Unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV Line 5-6: +24 dBu (Maximum) Line 5-6 Unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV Stereo: +10 dBV (Maximum) Stereo Unity: -10 dBV / -20 dBV Analog Outputs Unbalanced: +10 dBV / -13 dBV (Maximum) Unbalanced Unity: -10 dBV / -33 dBV Balanced (1/L and 2/R) +24 dBu / 20 dBV / +10 dBV (Maximum) Balanced (1/L and 2/R Unity) +4 dBu / 0 dBV / -10 dBV Phantom Power +48 VDC Pad -24 dB I/O Connector Input Stereo: Euroblock Connector (3-Pin) Input Mic/Line 1-6: Euroblock Connectors (3-Pin) Output Unbalanced: Euroblock Connector (3-Pin) Output Balanced 1/L and 2/R: Euroblock Connectors (3-Pin) GPO: Euroblock Connectors (3-Pin) Indicators Signal/Peak: 1-Point (Red/Yellow/Green) Peak Indicate: -5 to 0 dB (Red) Peak Hold Time: 2 Seconds Remote Control IP Protocol: 1 x RJ-45 IP Address: 192.168.33.102 (Factory Default) Communication Speed: 100 Mb/s Network IP Protocol: RJ-45 Link Input/Output IP Protocol: 2 x RJ-45 Communication Speed: 100 Mb/s USB USB: Type-B Channel: 1 x Stereo Channel Input, 1 x Stereo Channel Output (24-Bit) Communication Speed: High-Speed (480 Mb/s) A/D/A Converter Resolution: 24-Bit Dynamic Range: 115 dB Temperature & Humidity Operating Temperature Range: 32 to 104°F / 0 to 40°C Operating Humidity: 25 to 85% (With No Condensation) Power Power Supply: 100 to 240 VAC, 50/60 Hz Power Consumption: 17 W Dimensions 8.6 x 14 x 1.8″ / 21.8 x 35.6 x 4.4 cm Weight 4.2 lb / 1.9 kg Packaging Info Package Weight 6.31 lb Box Dimensions (LxWxH) 17 x 12.7 x 4.8″ 42005211364
