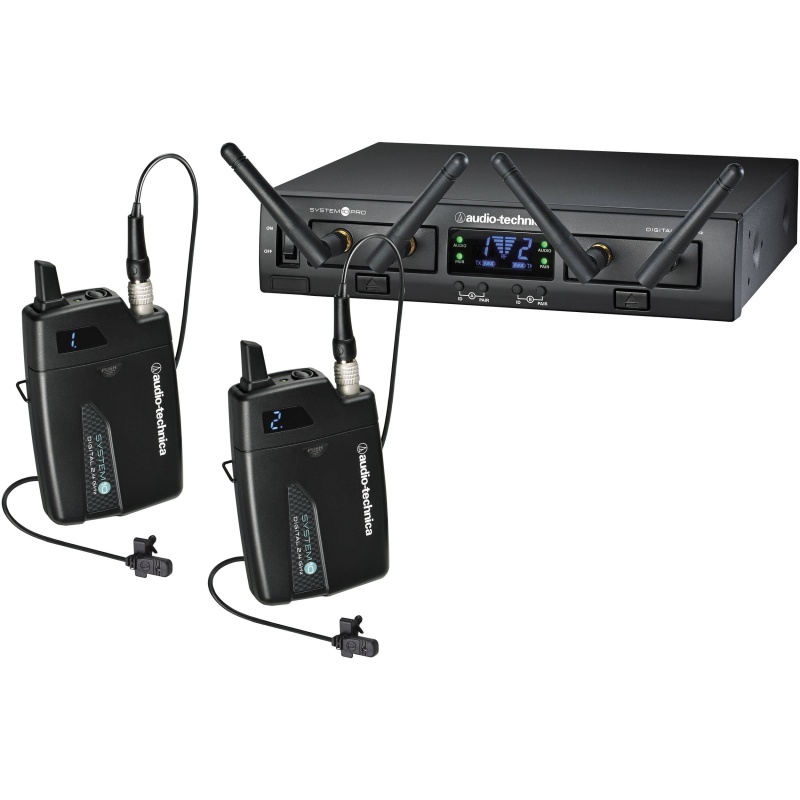

ATW-RC13 Rack-mount receiver chassis, ATW-RU13x2 receiver unit and ATW-T1001 x2 body-pack transmitter with MT830cW x2 lavalier microphone.
Audio-Technica System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.
OVERALL SYSTEM SPECIFICATIONS Operating Frequencies 2.4 GHz ISM band Dynamic Range >109 dB (A-weighted), typical Total Harmonic Distortion Operating Range 60 m (200′) Open range env. with no interfering signals Operating Temperature Range 0 C to +40 C (32 F to 104 F) Battery performance may be reduced at very low temperatures Frequency Response 20 Hz to 20 kHz
Depending on microphone type
RECEIVER SPECIFICATIONS Receiving System Diversity (frequency/time/space) Output Connectors Remote Receiver Connector: RJ45
Link Connector: RJ12 Maximum Output Level XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external Dimensions 209.8 mm (8.26″) W x 44 mm (1.73″) H x 169.3 mm (6.67″) D Net Weight 940 grams (33.2 oz) Accessory Included Power supply Accessories Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
BODY-PACK TRANSMITTER SPECIFICATIONS RF Power Output 10 mW Spurious Emissions Following federal and national regulations Input Connections Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V Batteries Two 1.5V AA not included Battery Life >7 hours (alkaline) Depending on battery type and use pattern Dimensions 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D Net Weight 100 grams (3.5 oz) without batteries
