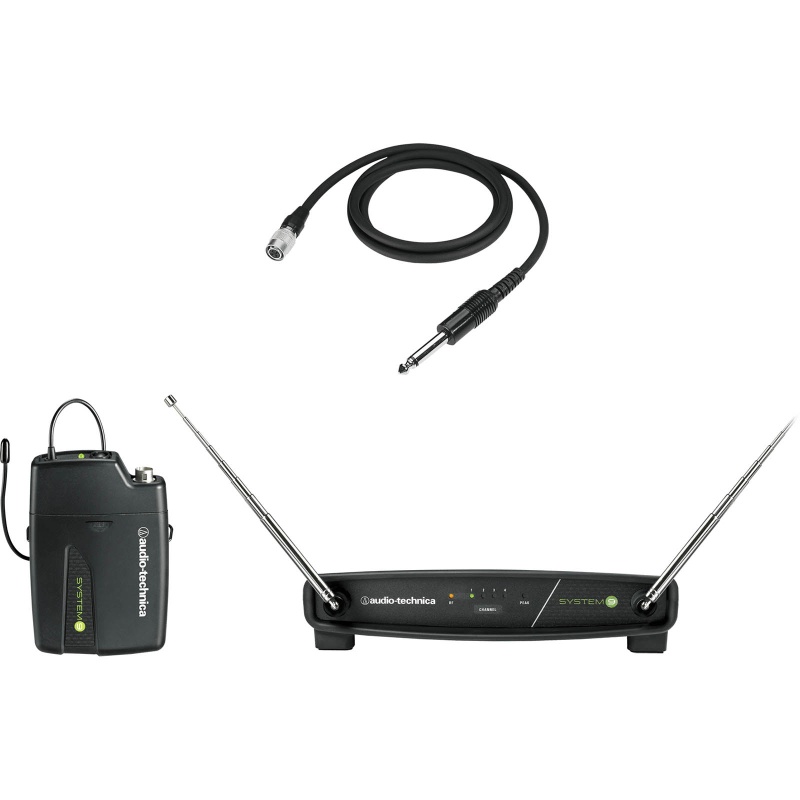

Audio-Technica ATW-901A/G System 9 Wireless Guitar SystemThe ATW-R900a receiver features a user-friendly design with LED indicators that display channel selection, RF signal presence, and peak levels, giving you everything you need to keep an eye on your performance. The balanced XLR and unbalanced 1/4" outputs provide offer the ability to connect to nearly any amp or sound system imaginable.
The ATW-T901a body-pack transmitter is compact and lightweight, offering adjustable input levels to cover whichever instrument you're playing. Powered by two AA batteries, it provides up to 8 hours of continuous use to last for the whole show. The included AT-GcW 1/4" instrument cable means a secure and high-quality connection between your instrument and the transmitter. With four selectable VHF frequencies, the ATW-901A/G System 9 allows users to choose the clearest channel for their environment, minimizing potential interference. Its operating range of up to 200 feet offers flexibility for any stage configuration, enabling you to move freely without compromising sound quality.
Whether you're performing on stage or rehearsing, Audio-Technica's ATW-901A/G System 9 provides a dependable and high-quality wireless solution for instrumentalists seeking freedom and clarity in their sound.
SpecificationsOverall System
Operating Frequencies: VHF highband, 169 MHz to 172 MHz Modulation Mode: FM Maximum Deviation: +/-10 kHz Frequency Response: 80 Hz to 13 kHz Operating Range: 200' (60 m) typicalOpen range environment with no interfering signals Total Harmonic Distortion: Operating Temperature Range: 40° F (4° C) to 110° F (43° C)Battery performance may be reduced at very low temperatures Notes: First-generation System 9 (original) components: ATW-R900 receiver ATW-T901 body-pack transmitter ATW-T902 unidirectional dynamic microphone transmitter
Body Pack
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
RF Power Output: 10 mW Battery Life: 8 hours (alkaline) Depending on battery type and use pattern Battery Type: Two 1.5V AA not included Dimensions: 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D Input Connections: Four-pin Locking Connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +9V Net Weight: 2.8 oz (80.0 grams) without batteries Spurious Emissions: Following federal and national regulations
Receiver
Receiving System: Non-diversity, single-channel, dual antenna system Image Rejection 50 dB minimum RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination) Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply Operating Temperature Range: 40° F (4° C) to 110° F (43° C) Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D Weight: 12.0 oz (337 grams) Accessories Included: Power supply Audio Output: Nominal Output Level XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
