Audio-Technica's System 20 Pro SeriesThe wireless system you can use anywhere!

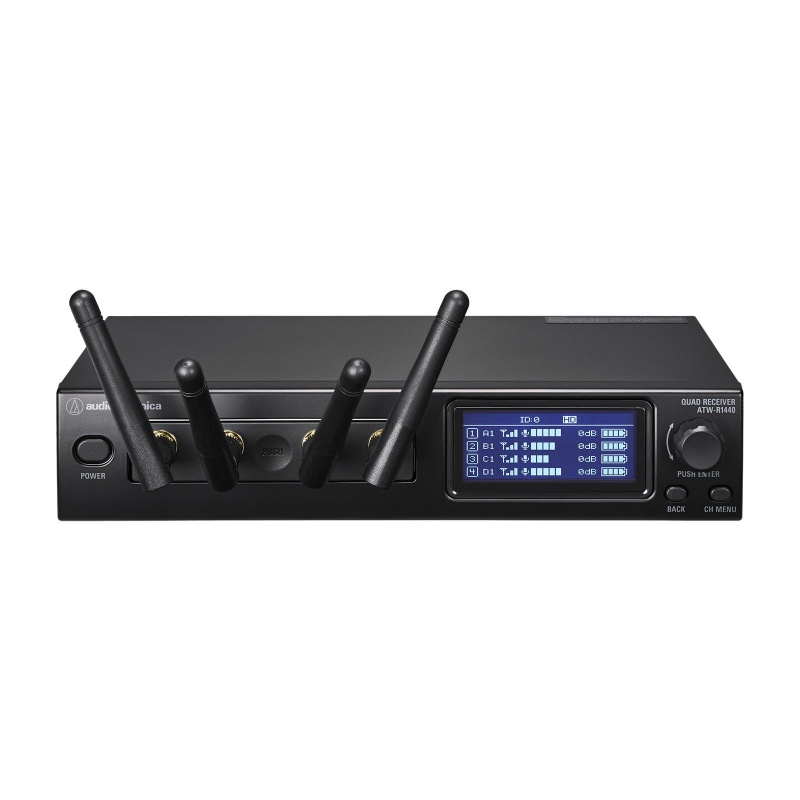

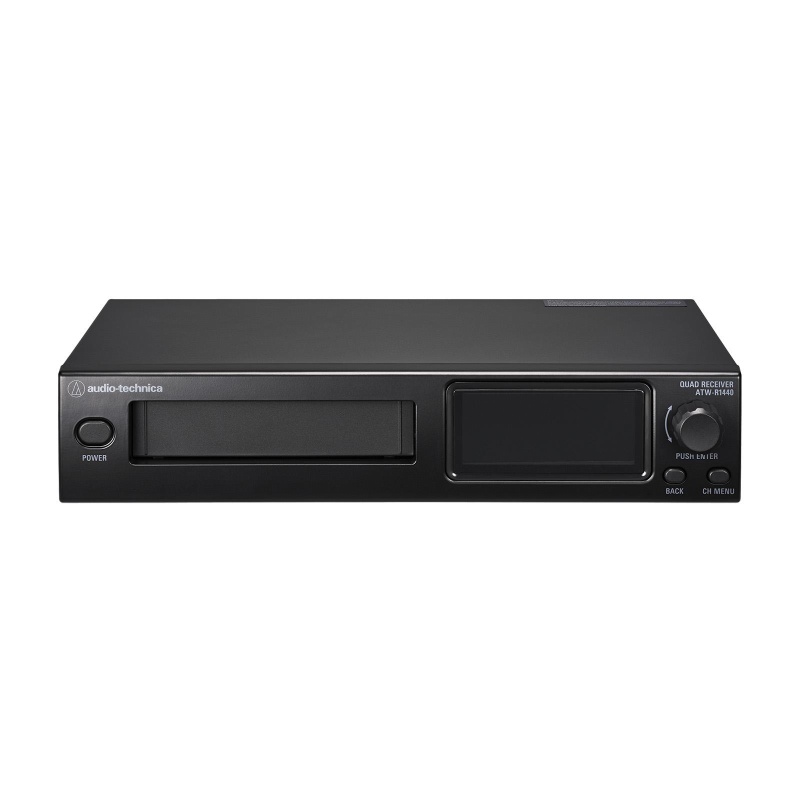

The Audio Technica ATW-R1440 4-channel receiver is composed of one ATW-RC14 Receiver and one ATW-RU14 Chassis. The receiver can be undocked and mounted separately in the included cover and connected via ethernet up to 328' away from the chassis, giving the user significantly more optionality in setup. Each receiver can pair with up to four transmitters, and up to five chassis can be linked and used simultaneously. With the included hardware, the chassis can be mounted solo in a rack or two can be mounted side-by-side. And with the auto-lock function, you'll be safe from accidently changing your settings.
Please note this receiver does not come with any transmitters. The ATW-T1440 4-channel receiver is for adding to a pre-existing System 20 PRO wireless system or starting a new system with a separate transmitter such as a ATW-T1401 body-pack or ATW-T1402 handheld microphone.
System 20 PRO Features

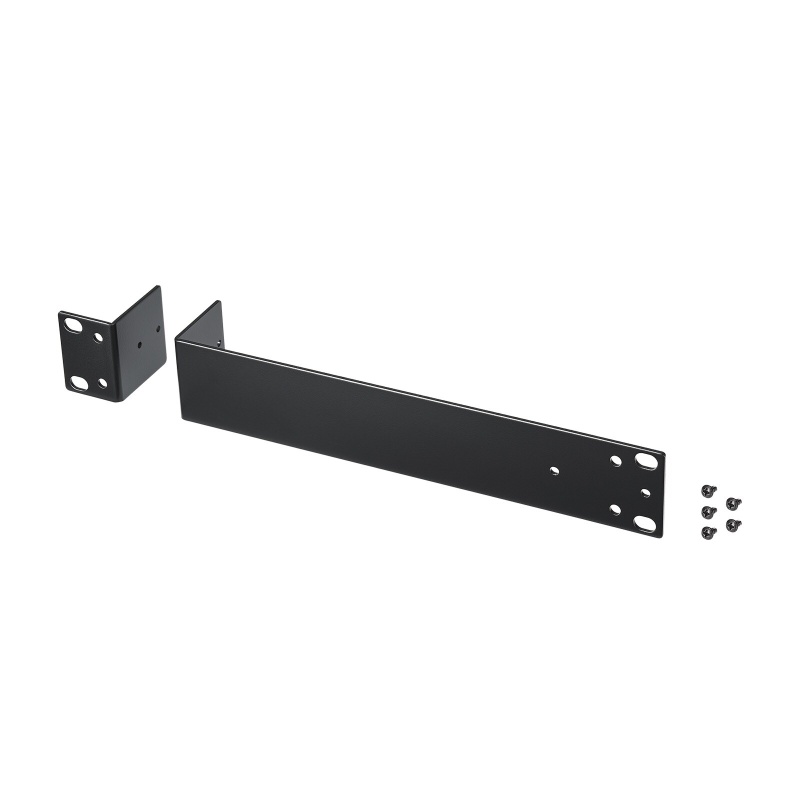

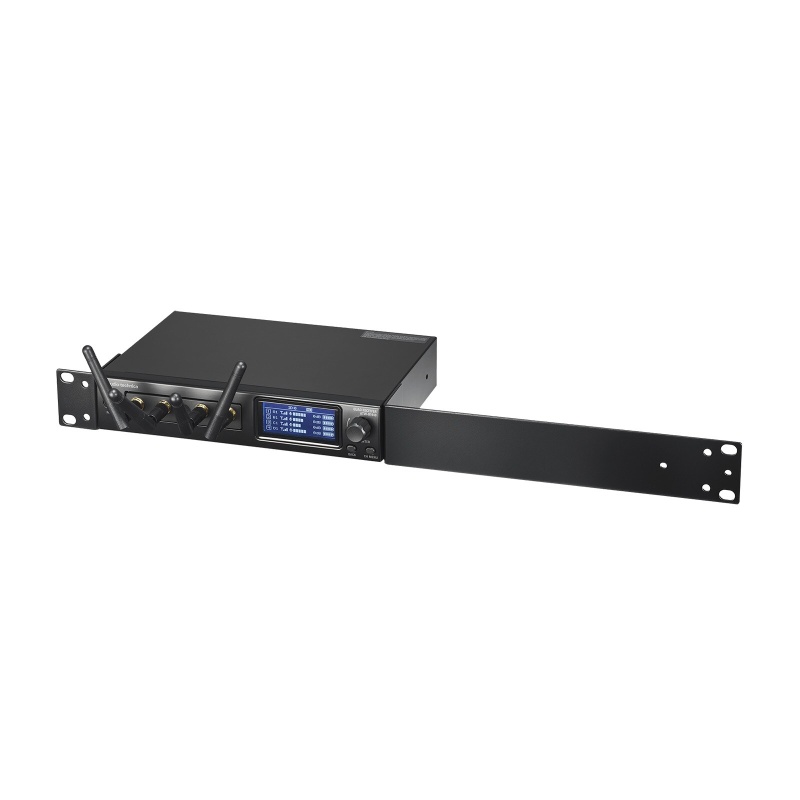

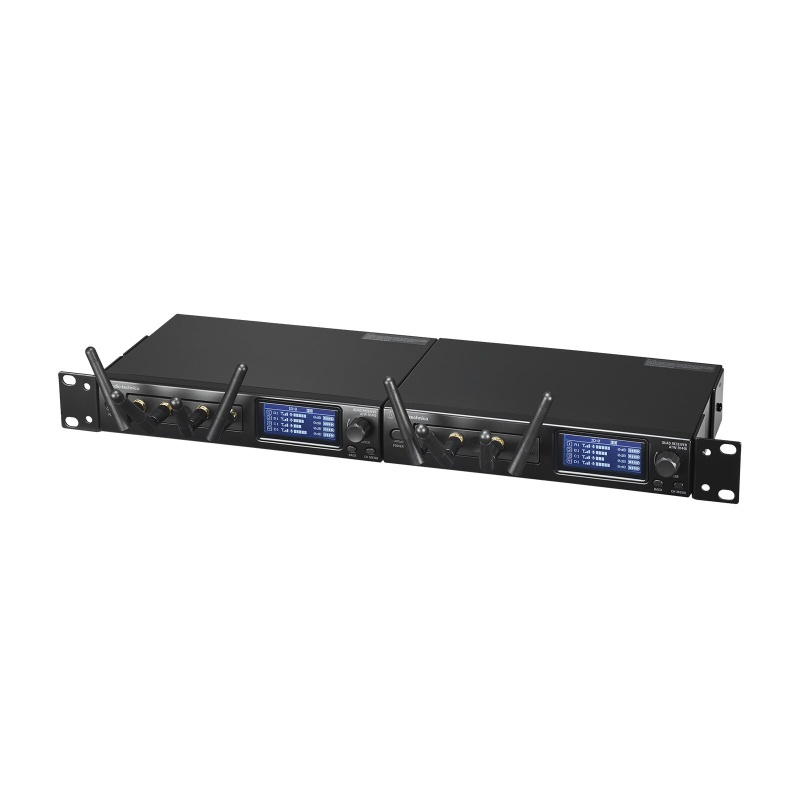

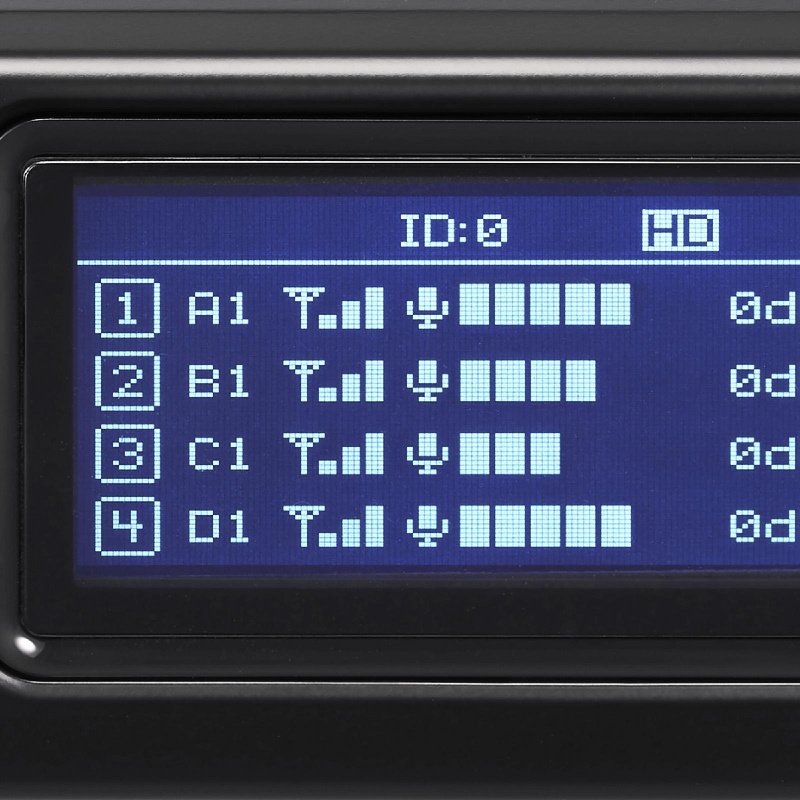

Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performancePlug-and-play operation in the 2.4 GHz range – completely free from TV interferenceUser can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectivelyReceiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatilityUp to five chassis can be linked and used simultaneouslyEach receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurationsChassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link statusEach half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack spaceCompatible with software for centralized management of system settings and operationsAuto-lock function prevents unintended operations like turning off the power or displaying the channel select screenAES128 encryption for securityCompatible with Syslog protocolAbility to configure, monitor, and save device settings as projects in Wireless ManagerTransmitters and receivers include OLED screens for optimal readout of key settings and alertsWater- and sweat-resistant cW-style connector on ATW-T1401 body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connectorCharging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteriesSupports mixed output for situations with limited input channels
Mounting OptionsUndock the Receiver from the Chassis and mount remotely for a significantly greater versatility in your setup options!

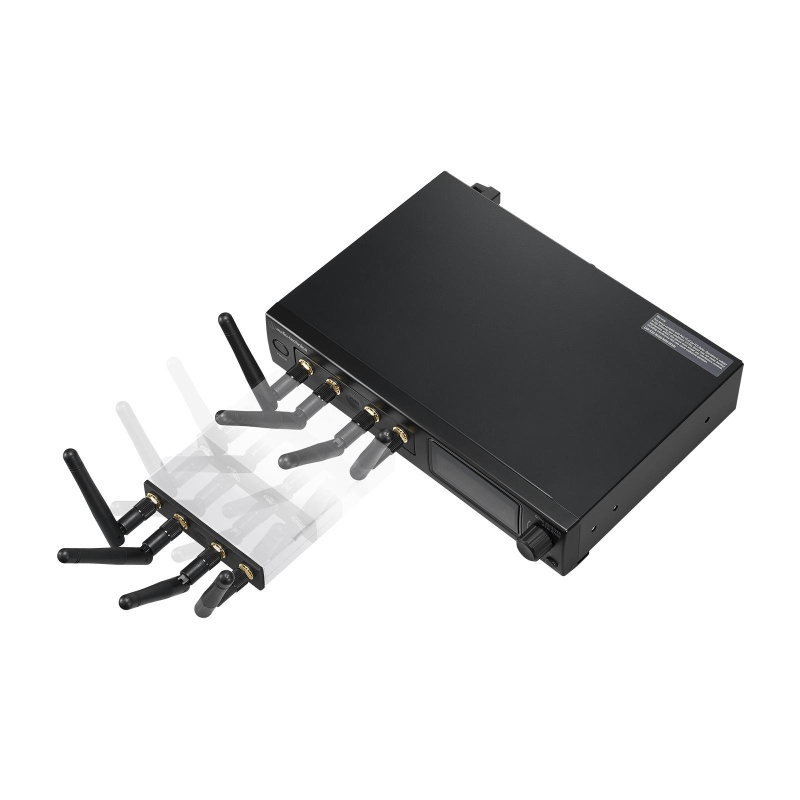

Remove the ATW-RC14 Receiver from the ATW-RU14 Chassis

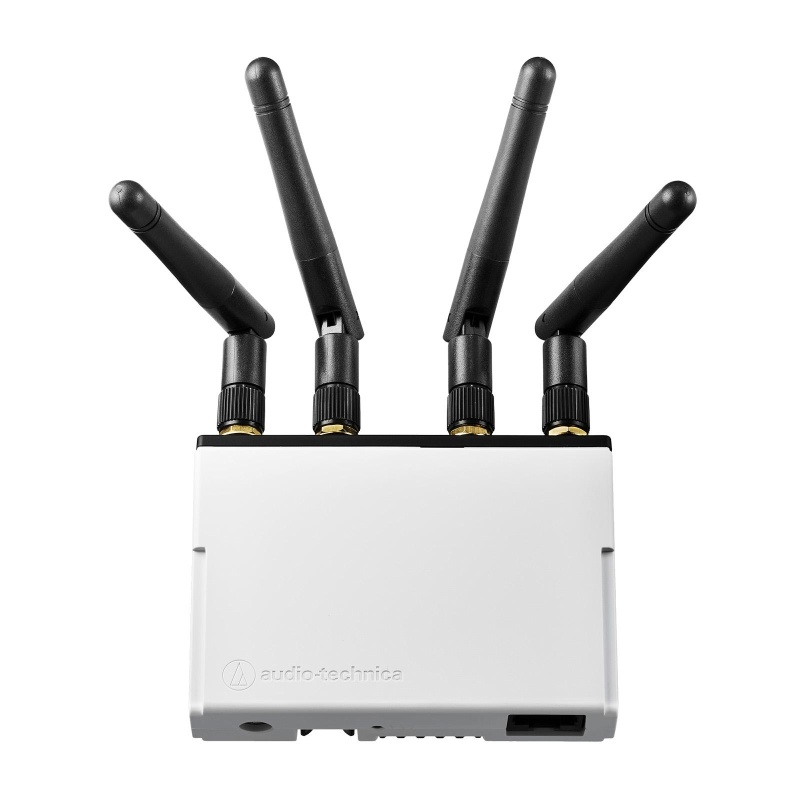

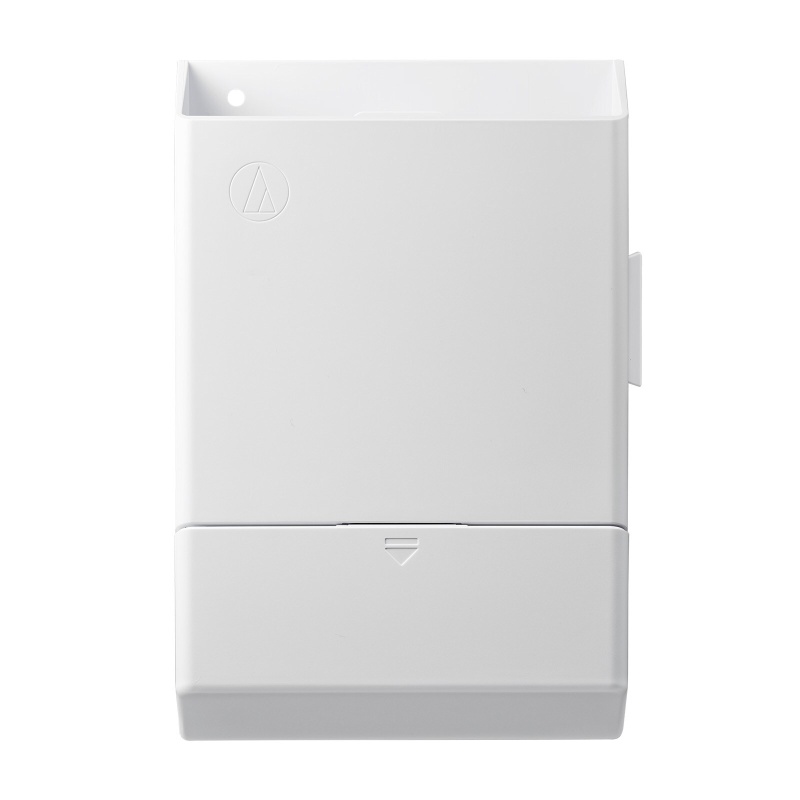

Secure the ATW-RC14 Receiver in the included unit holder cover.

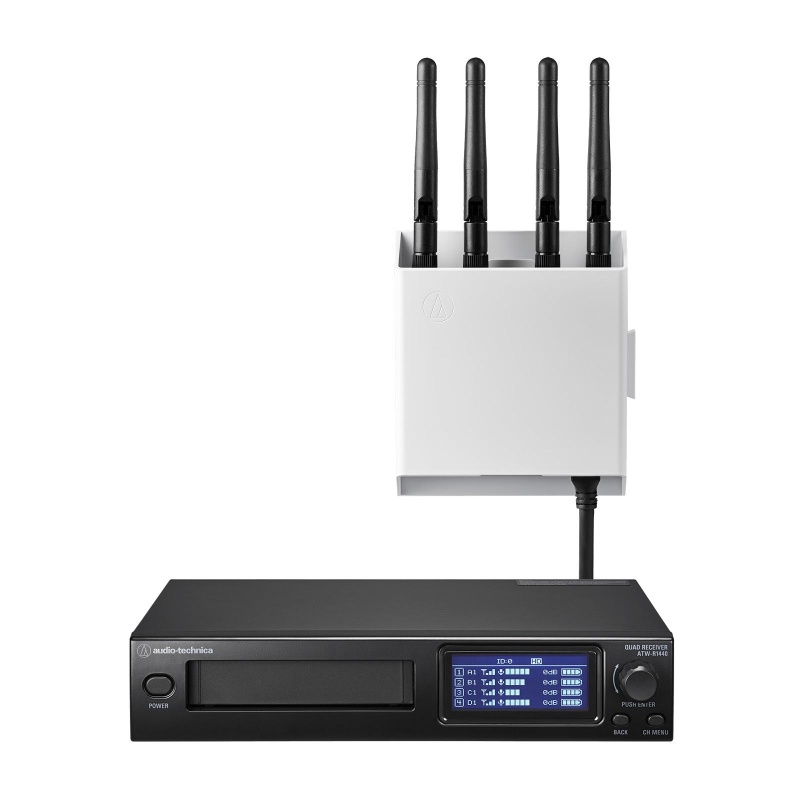

The ATW-RC14 Receiver can be mounted separately from the ATW-RU14 Chassis up to 328 ft. away via ethernet cable.
SpecificationsGeneral Specifications
Operating Frequencies: 2,402 to 2,480 MHzDynamic Range: 120 dB (A-weighted), typicalTotal Harmonic Distortion: Maximum Simultaneous Use (recommended): -Standard: 10 channels -HD mode: 20 channels It depends on the region and environment.System Frequency Response: 20 to 20K Hz Varies depending on the microphone to be installed.Delay: -Standard: 2.8ms -HD mode: 6.7msAudio Sampling Rate: -Standard: 24-bit/48 kHz -HD mode: 24-bit/48 kHzEncryption Method: AES128
ATW-RC14 Receiver Specs

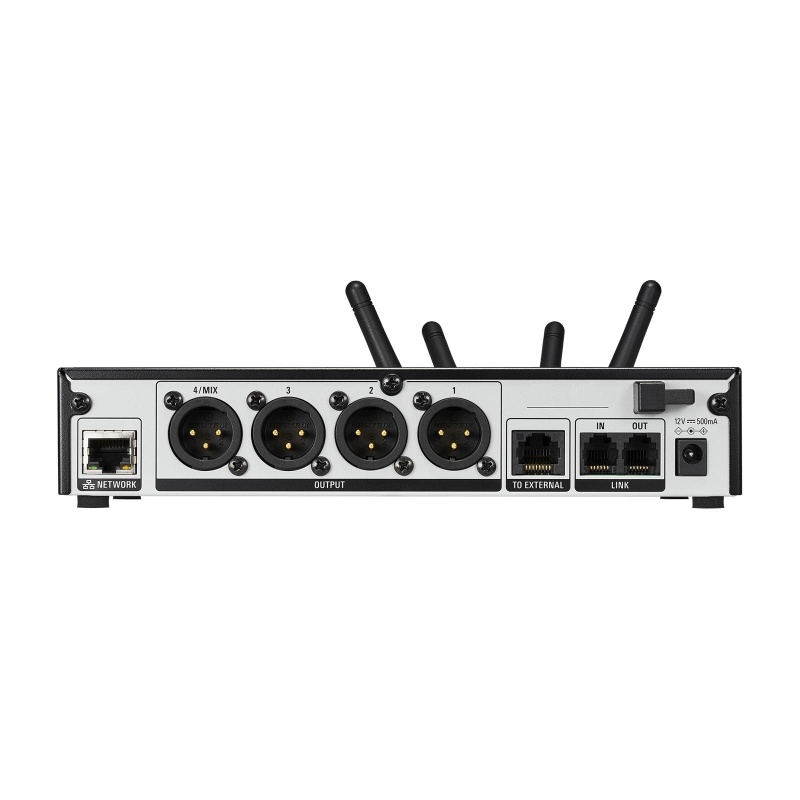

External Receiver Unit Port: RJ45NETWORK Port: RJ45: Fast EthernetLINK IN/OUT Port: RJ12Output Level: -LINE max: +22 dBu (+20 dBV) -LINE Unity: -20 Bu (-22 dBV) -MIC max: -12 dBu (-10 dBV) -MIC Unity: -50 dBu (-52 dBV)Power Consumption: 3.7WPower Supply: 12 V DC, 0.5 A (AC adapter)Operating Temperature Range: 0ºC to +40ºC (32°F to 104°F)Dimensions: 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H)Weight: 740 g (26 oz)Included Accessories: AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12"]), leg × 4
ATW-RU14 Chassis Specs

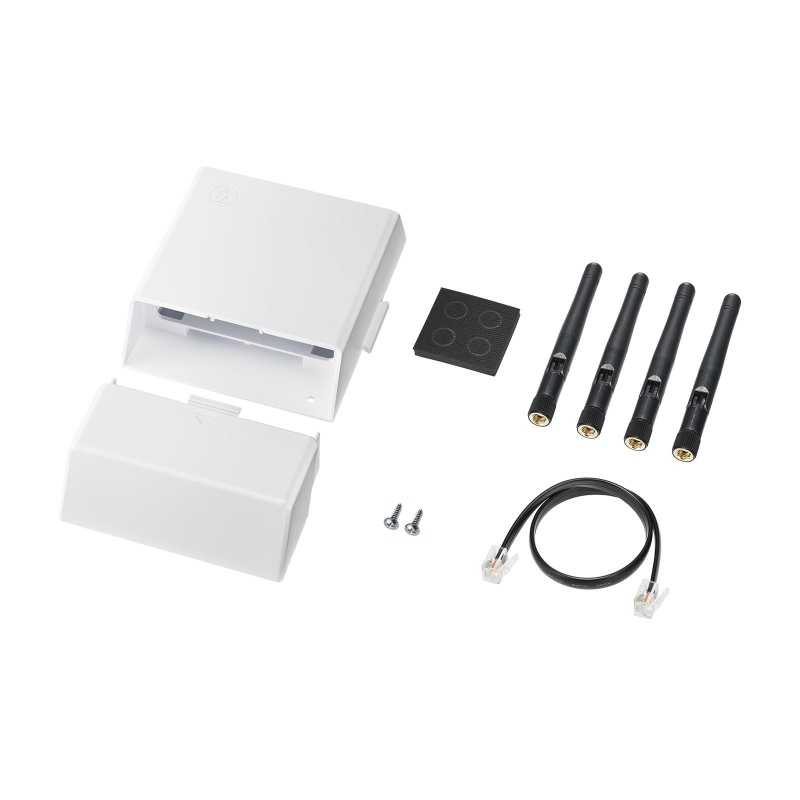

Modulation Mode: GFSKRF Output Power: 10mW EIRPRF Sensitivity: -90 dBm, typicalAntenna: 1/2 wave dipole antenna, true diversityExternal Connection Port: RJ45Power Supply: 12 V DC (RC14)Operating Temperature Range: 0ºC to +40ºC (32°F to 104°F)Dimensions: 86.0 mm (3.4") × 70.2 mm (2.8") × 18.7 mm (0.74") (W × D × H)Weight: 77 g (2.7 oz)Included Accessories: Unit holder, holder cover, wood screws x 2, antenna x 4
Ready-to-Go Systems from System 20 PROKeep things simple and buy one of Audio-Technica's pre-made systems! The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.
ATW-1421 Dual Body-Pack System
ATW1422 Dual Handheld Microphone System
ATW-1423 Handheld and Body-Pack SystemSystem 20 Pro ComponentsBuild your system from the ground up to be confident you have exactly what you need to meet your demands!
ATW-R1440 4 Channel Receiver
ATW-T1402 Handheld Wireless Mic
ATW-T1401 Body-Pack Transmitter
ATW-T1406 Boundary Microphone
ATW-T1407 Desk Stand Transmitter
Transmitter Charging Options
