Audio-Technica's System 20 Pro SeriesThe wireless system you can use anywhere!

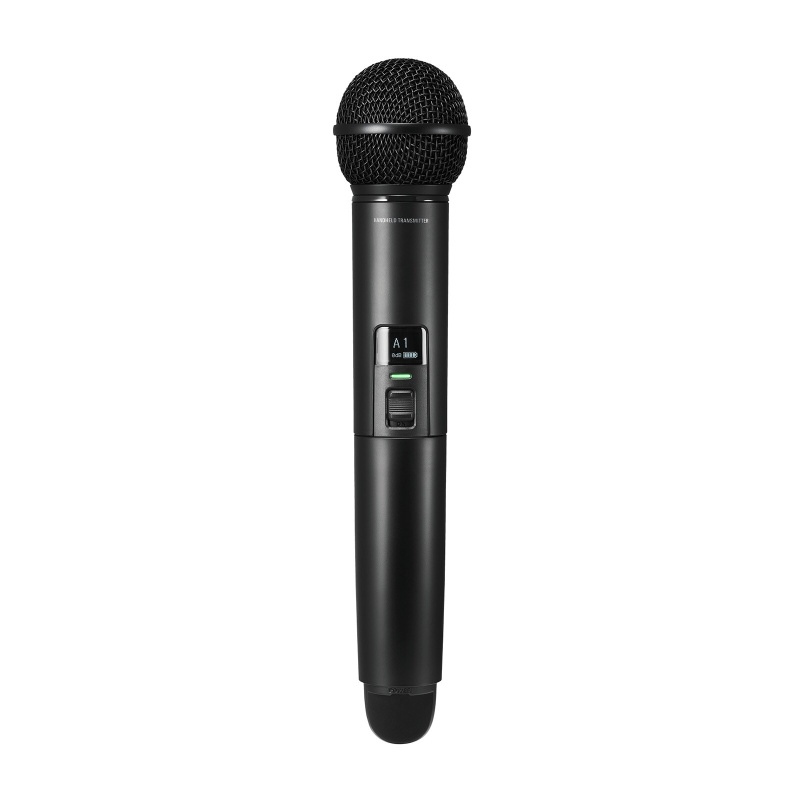

The Audio Technica ATW-T1402 handheld microphone transmitter from the System 20 PRO line offers performers the freedom to roam. Whether you're a singer, preacher, presenter, or just giving a speech at a wedding, free yourself up from tripping on cables with the liberty of a wireless handheld mic.

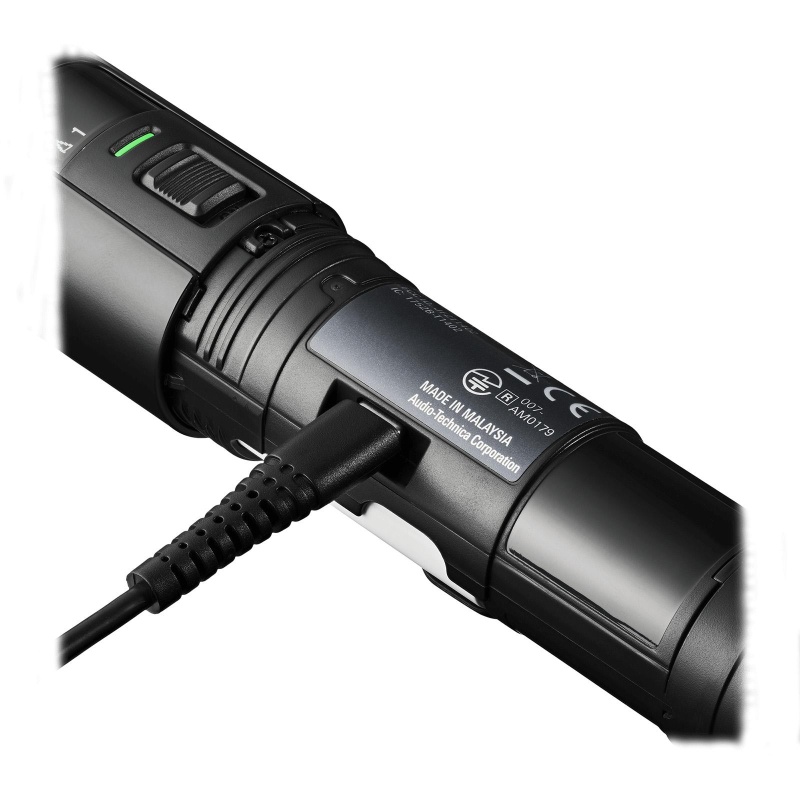

Each transmitter has two built-in antennas, a slide-to-mute switch, OLED display, and are compatible with NiMH batteries for all day use.
Please note that this microphone transmitter will require an Audio-Technica ATW-R1440 receiver. The ATW-T1402 handheld microphone transmitter is for adding to a pre-existing System 20 PRO wireless system or starting a new system with a separate ATW-R1440 receiver.
System 20 PRO Features
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance Plug-and-play operation in the 2.4 GHz range – completely free from TV interference User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility Up to five chassis can be linked and used simultaneously Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space Compatible with software for centralized management of system settings and operations Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen AES128 encryption for security Compatible with Syslog protocol Ability to configure, monitor, and save device settings as projects in Wireless Manager Transmitters and receivers include OLED screens for optimal readout of key settings and alerts Water- and sweat-resistant cW-style connector on ATW-T1401 body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries Supports mixed output for situations with limited input channels
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
SpecificationsGeneral Specifications
Operating Frequencies: 2,402 to 2,480 MHz Dynamic Range: 120 dB (A-weighted), typical Total Harmonic Distortion: Maximum Simultaneous Use (recommended): -Standard: 10 channels -HD mode: 20 channels It depends on the region and environment. System Frequency Response: 20 to 20K Hz Varies depending on the microphone to be installed. Delay: -Standard: 2.8ms -HD mode: 6.7ms Audio Sampling Rate: -Standard: 24-bit/48 kHz -HD mode: 24-bit/48 kHz Encryption Method: AES128
ATW-T1402 Handheld Mic Specifications

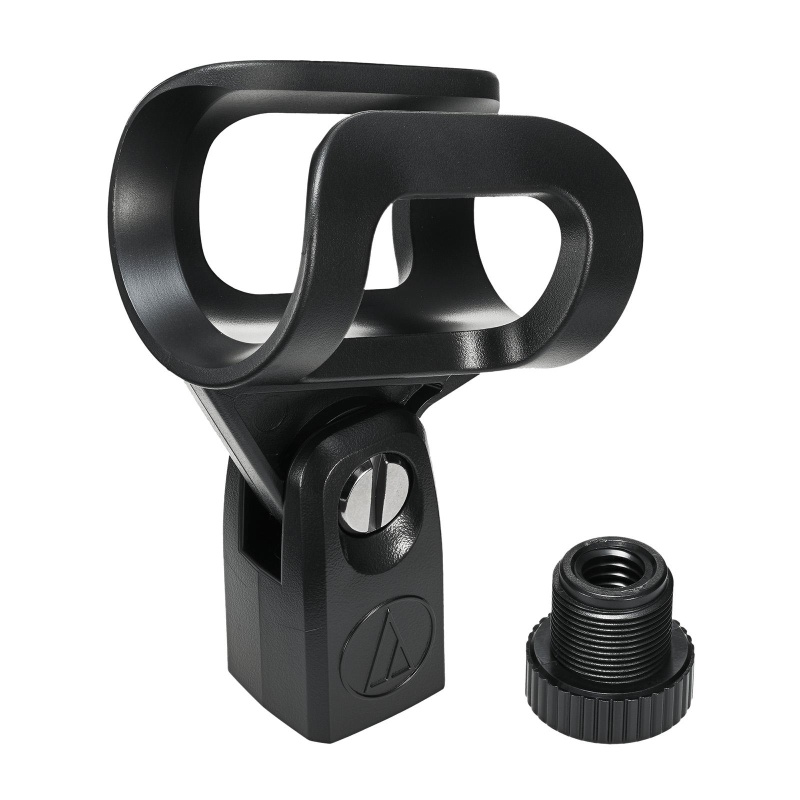

Modulation Mode: GFSK RF Output Power: 10mW EIRP RF Sensitivity -90 dBm, typical Antenna: True diversity Battery: 3 V DC (two 1.5 V AA) Battery Life: -Approx. 18 hours (alkaline) -Approx. 16 hours 30 minutes (Ni-MH) -Approx. 35 hours (lithium) This varies depending on usage conditions. Microphone Type: Dynamic Microphone Polar Pattern: Hypercardioid Operating Temperature Range: 5ºC to +40ºC (41°F to 104°F) Dimensions: 265.0 mm (10") × 53.7 mm (2.1") Weight: 300 g (11 oz), without batteries Included Accessories: Mic holder AT8456a, converting thread adapter (3/8" - 5/8")
Ready-to-Go Systems from System 20 PROKeep things simple and buy one of Audio-Technica's pre-made systems! The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.
ATW-1421 Dual Body-Pack System
ATW1422 Dual Handheld Microphone System
ATW-1423 Handheld and Body-Pack SystemSystem 20 Pro ComponentsBuild your system from the ground up to be confident you have exactly what you need to meet your demands!
ATW-R1440 4 Channel Receiver
ATW-T1402 Handheld Wireless Mic
ATW-T1401 Body-Pack Transmitter
ATW-T1406 Boundary Microphone
ATW-T1407 Desk Stand Transmitter
Transmitter Charging Options
