Audio-Technica's System 20 Pro SeriesThe wireless system you can use anywhere!
The Audio Technica ATW-T1406 boundary microphone transmitter from the System 20 PRO line is the perfect grab-and-go choice for a preacher, a politician, or presenter of any kind. Just plug in your gooseneck microphone (sold separately) and let the people know what you have to say. With the choice of toggle, touch-to-talk, and touch-to-mute, you're covered in all scenarios. The OLED display on the bottom makes setting up simple, and the LED on top can also be set in standard mode or conference mode. The internal lithium-ion batteries last up to 12 hours for a full days work, or be used while charging via USB Type-C.

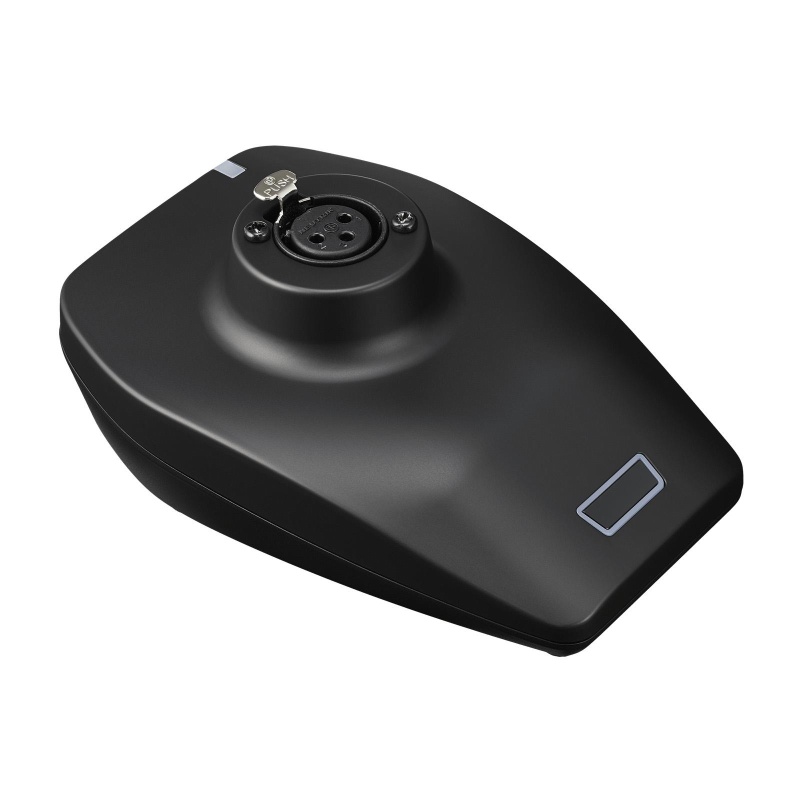

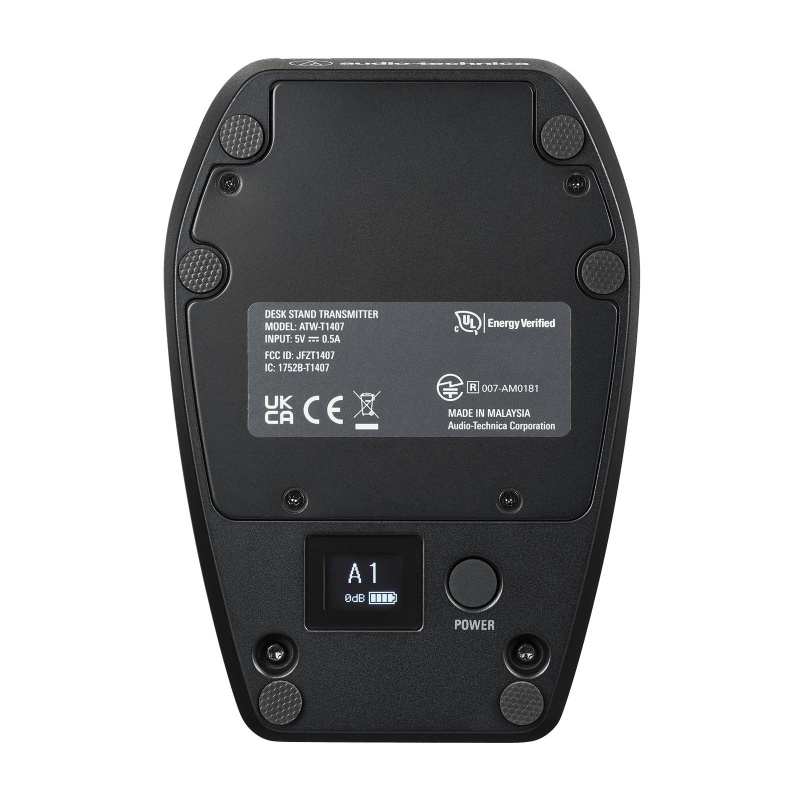

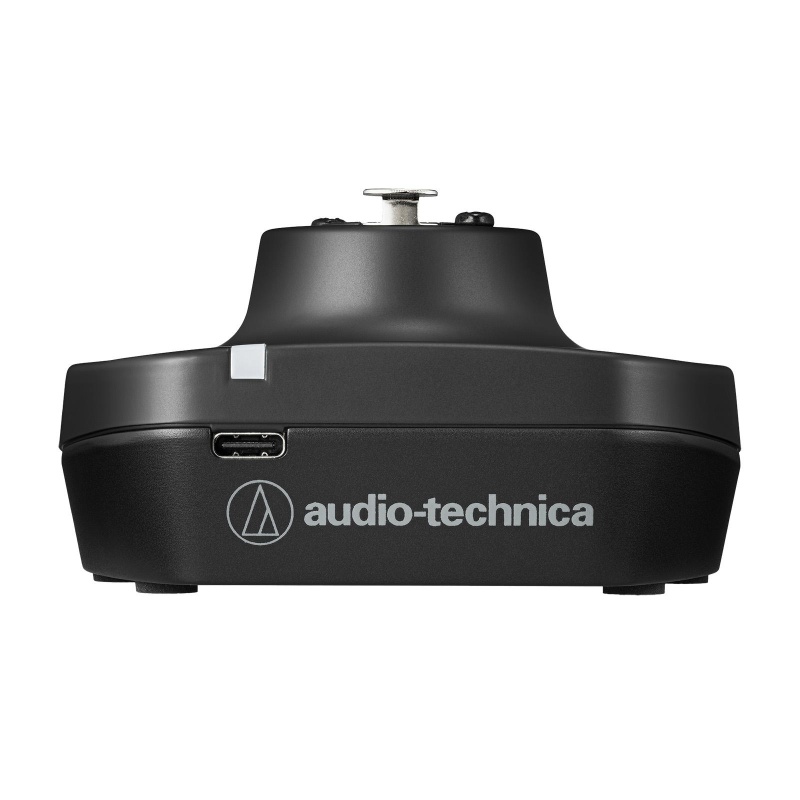

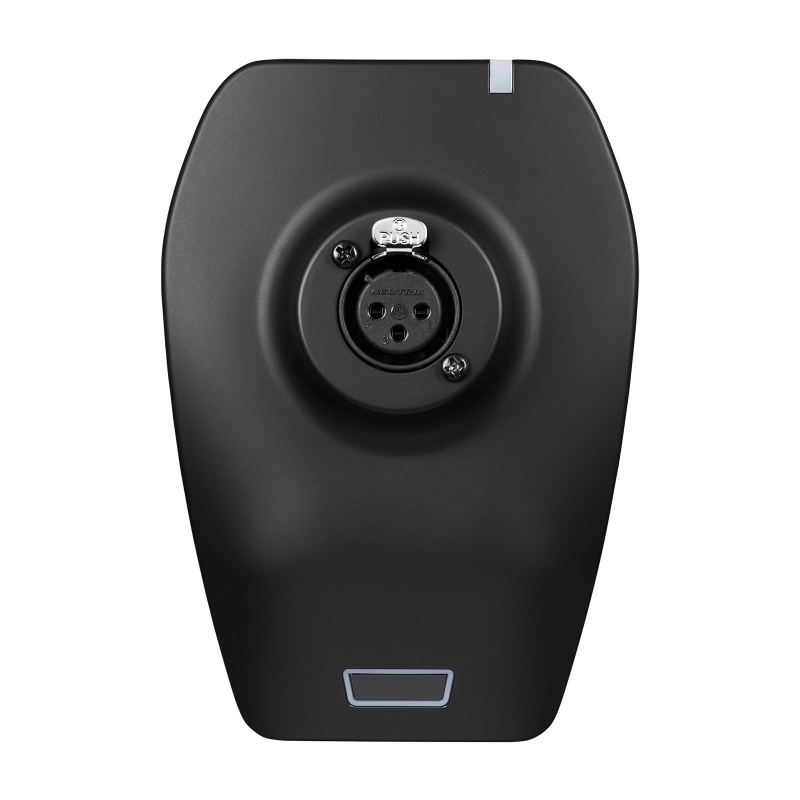

Please note that this transmitter will require an Audio-Technica ATW-1421 receiver. The ATW-T1407 desk stand transmitter is for adding to a pre-existing System 20 PRO wireless system or starting a new system with a separate ATW-1421 receiver.
System 20 PRO Features
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance Plug-and-play operation in the 2.4 GHz range – completely free from TV interference User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility Up to five chassis can be linked and used simultaneously Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space Compatible with software for centralized management of system settings and operations Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen AES128 encryption for security Compatible with Syslog protocol Ability to configure, monitor, and save device settings as projects in Wireless Manager Transmitters and receivers include OLED screens for optimal readout of key settings and alerts Water- and sweat-resistant cW-style connector on ATW-T1401 body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries Supports mixed output for situations with limited input channels
SpecificationsGeneral Specifications
Operating Frequencies: 2,402 to 2,480 MHz Dynamic Range: 120 dB (A-weighted), typical Total Harmonic Distortion: Maximum Simultaneous Use (recommended): -Standard: 10 channels -HD mode: 20 channels It depends on the region and environment. System Frequency Response: 20 to 20K Hz Varies depending on the microphone to be installed. Delay: -Standard: 2.8ms -HD mode: 6.7ms Audio Sampling Rate: -Standard: 24-bit/48 kHz -HD mode: 24-bit/48 kHz Encryption Method: AES128
ATW-T1406 Boundary Mic Specifications
Modulation Mode: GFSK RF Output Power: 10mW EIRP RF Sensitivity: -90 dBm, typical Antenna: True diversity Microphone: Gooseneck microphone supported Phantom Power Supply DC24V Built-in Battery: 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) Battery Life: -When using a gooseneck microphone with no LED: Approx. 12 hours -When using a gooseneck microphone with an LED: Approx. 8 hours This varies depending on usage conditions. Charging Time: Approx. 3 hours and 10 minutes This varies depending on usage conditions. USB Charging Port: USB Type-C (USB 2.0) Operating Temperature Range: 5ºC to +40ºC (41°F to 104°F) Dimensions: 90.5 mm (3.6") × 129.4 mm (5.1") × 47.6 mm (1.9") (W × D × H) Weight: 490 g (17 oz), including battery Included Accessories: USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9'])
Ready-to-Go Systems from System 20 PROKeep things simple and buy one of Audio-Technica's pre-made systems! The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.
ATW-1421 Dual Body-Pack SystemATW1422 Dual Handheld Microphone SystemATW-1423 Handheld and Body-Pack SystemSystem 20 Pro ComponentsBuild your system from the ground up to be confident you have exactly what you need to meet your demands!
ATW-R1440 4 Channel ReceiverATW-T1402 Handheld Wireless MicATW-T1401 Body-Pack TransmitterATW-T1406 Boundary MicrophoneATW-T1407 Desk Stand Transmitter
