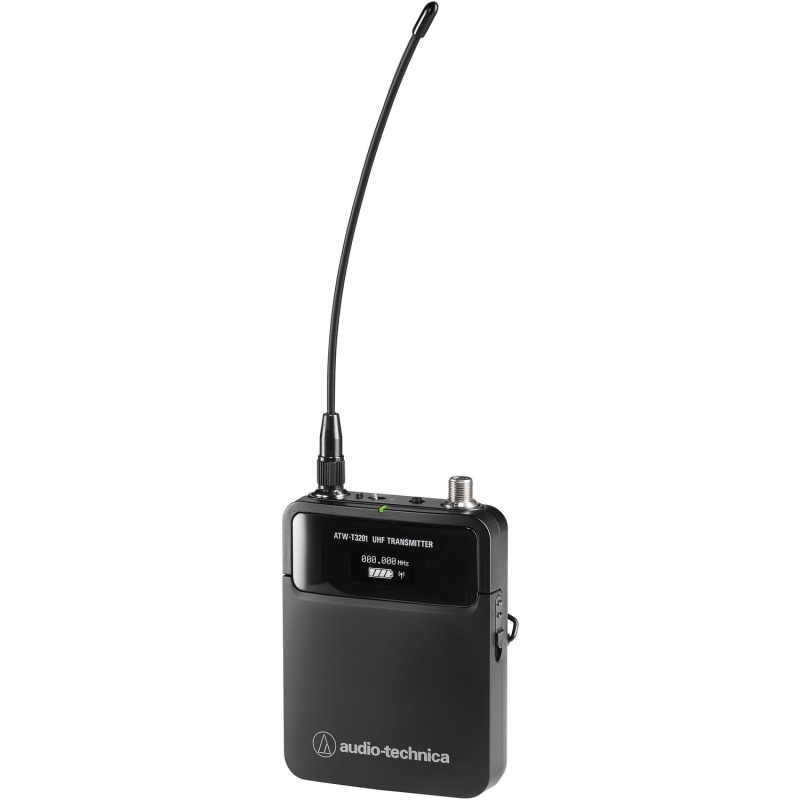

Key Features For 3000 Series Receivers Use with Lav/Headset Mic or Instrument 4-Pin Hirose cH-Style Connector 2400 Auto-Scan Frequencies Selectable 10/30mW RF Power Mute Switch, Backlit OLED Adjustable Input Level Control 9.5-Hour NiMH Batteries The Audio-Technica ATW-T3201 is a 3000 Series (4th generation) bodypack transmitter compatible with ATW-R3210 and ATW-R3210 Networked receivers. It features a 4-pin cH-style screw-down connector and an adjustable input level to accommodate the cH-style lavalier or headset microphone of your choice, or an adapter cable for guitar and bass. With a rugged metal housing and rounded corners, the transmitter is comfortable to wear and provides natural audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages.
The ATW-T3201 operates on a wide 60 MHz UHF tuning range with 2400 selectable frequencies available. It provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330′.
Versatile Features for Easy Operation The transmitter’s input accepts low-impedance microphone levels as well as high-impedance musical instrument or line levels. The gain ranges from -10 to +20 dB and can be adjusted in 2 dB increments. The bright OLED screen presents comprehensive setup and operating information, including battery indicator, mute status, and operating frequency. Setup functions are menu-driven via soft-touch controls, which are covered to prevent accidental changes. A tactile mute toggle switch (defeatable) provides physical confirmation of mute status when transmitter display is not visible. The transmitter easily syncs to the receiver via infrared with a quick press on the Sync button. Two RF power output settings are available: the low-level setting extends battery life while the high-level offers a stronger RF signal link. In case of interference, the programmable multifunction button on the transmitter can be used to switch to a clean, backup frequency with minimal interruption. The durable metal chassis is equipped with a field-replaceable whip antenna and a secure, locking battery compartment door. Smart Power Options for Longer Performance The transmitter operates for up to 9 hours on two AA alkaline batteries and up to 9.5 hours on two rechargeable AA NiMH batteries. Charging terminals on the base of the transmitter work with the optional ATW-CHG3 charging dock or ATW-CHG3N networked charging dock (both available separately) to recharge AA NiMH batteries while inside the transmitter. To protect against misuse, the dock automatically shuts off if alkaline or damaged batteries are detected in the transmitter. The ATW-CHG3N networked dock allows users to monitor the charging status of the transmitter. Audio-Technica ATW-T3201 Specs Key Specs Wireless Technology Analog UHF Max Operating Range 328.1′ / 100 m Transmitter Type Bodypack Audio I/O 1x Hirose cH-Style 4-Pin Male Input (Locking) RF Frequency Band EE1: 530 to 589.975 MHz RF Bandwidth 60 MHz Frequency Step Size 25 kHz RF Channel Scanning Auto-Scan Max Operating Range 328.1′ / 100 m Built-In Recorder No Timecode Support No Mobile App Compatible No Encryption No Modulation FM Transmitter Transmitter Type Bodypack RF Output Power 10 / 30 mW (Switchable, at 50 Ohms) Audio I/O 1x Hirose cH-Style 4-Pin Male Input (Locking) Plug-In Power 5 V Muting Mute Switch Auto-Level Control No Gain Range -10 to +20 dB (2 dB Steps) Signal Processing High-Pass Filter: 125 Hz, 12 dB/Octave Slope Sync Method IR Antenna 1x Flexible Whip, Detachable (Beltpack) Power Requirements Battery Battery Type 2x AA (Not Included) 2x Rechargeable (Not Included) Approx. Battery Life Low: 9 Hours (Alkaline) 9.5 Hours (NiMH Rechargeable) High: 8 Hours (Alkaline) 9 Hours (NiMH Rechargeable) Display & Indicators 1x Backlit OLED (Battery Status, High-Pass Filter, Mute, RF Output Power) Housing Metal Dimensions 2.5 x 0.9 x 3.2″ / 64 x 23 x 82 mm Weight 3.6 oz / 102 g (without Batteries) Packaging Info Package Weight 0.42 lb Box Dimensions (LxWxH) 10.5 x 3.4 x 2″
