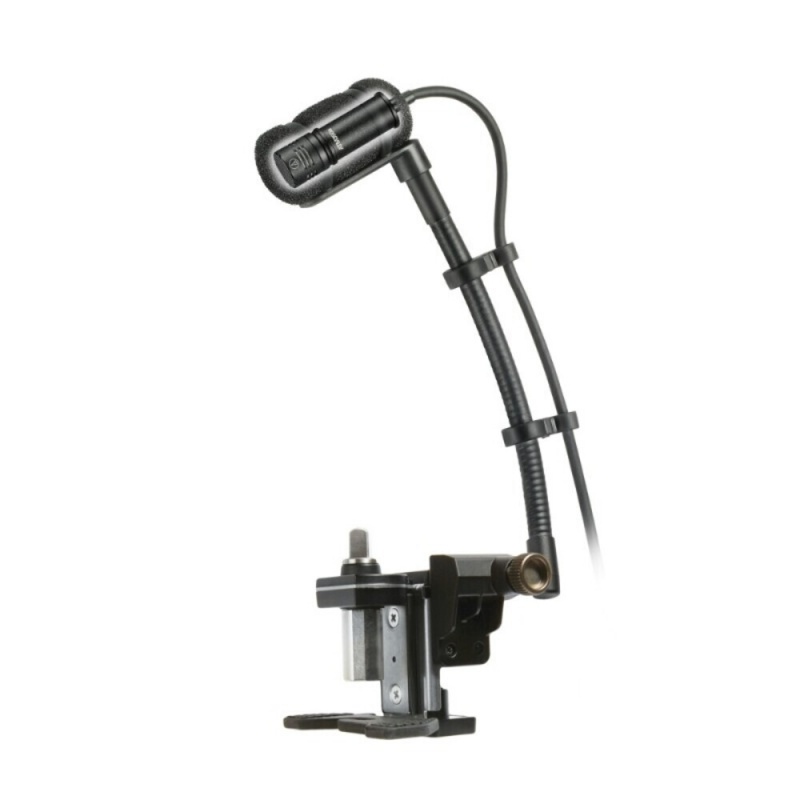

Features Low-profile mic design for minimum visibility Crisp, clear, well-balanced microphone response, even at high SPLs Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source UniMount® drum mount with unique spring-loaded mechanism attaches securely to a drum lug, and provides excellent shock resistance for the microphone Rugged UniMount® 5″ gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise Interchangeable elements available for hyper-cardioid and omnidirectional polar patterns Included violin mount with hook-and-loop fastener provides an additional mounting option Specifications Microphones Element Fixed-charge back plate, permanently polarized condenser Polar Pattern Cardioid Frequency Response 40 – 20,000 Hz Low Frequency Roll Off 80 Hz, 12 dB/octave Open Circuit Sensitivity –49 dB (3.5 mV) re 1V at 1 Pa Maximum Input Sound Level 159 dB SPL, 1 kHz at 1% T.H.D. Dynamic Range 130 dB, 1 kHz at Max SPL Signal-to-Noise Ratio 65 dB, 1 kHz at 1 Pa Phantom Power Requirements 11– 52V DC, 3.5 mA typical Switches Flat, roll-off Weight (Microphone) 14.5 g (0.5 oz) Weight (Power Module) 90 g (3.2 oz) Weight Microphone: 14.5 g (0.5 oz) Powermodule: 90 g (3.2 oz) Cable 4.0 m (13.1′) long (permanently attached to microphone), 3.2 mm (0.13″) diameter, 2-conductor shielded cable with HIROSE HR10-type connector Dimensions Microphone: 37.8 mm (1.49”) long, 12.2 mm (0.48”) maximum body diameter
Powermodule: 92 mm (3.62″) long, 18.9 mm (0.74″) diameter
Dimensions (Power Module) 92 mm (3.62″) long, 18.9 mm (0.74″) diameter Dimensions (Microphone) 37.8 mm (1.49”) long, 12.2 mm (0.48”) maximum body diameter Output Connector (Power Module) Integral 3-pin XLRM-type Output Connector Powermodule:
Integral 3-pin XLRM-type Optional Interchangeable Elements UE-H hypercardioid (100°); UE-O omnidirectional (360°) Accessories Included ATM350a cardioid condenser microphone; AT8543 power module; AT8491D UniMount® drum mount; AT8490 UniMount® 5″ gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case Audio-Technica Case Style M36
