Key Features For Two Presenters or Performers Two Cardioid Lavalier Microphones Two Bodypack Transmitters Dual-Channel Half-Rack Receiver Two Battery Chargers 138 MHz US Bandwidth, AES256 Encryption Antenna & MRC Diversity Switching Filter, EQ & Compressor per Channel 12 Hr Rechargeable Battery, 328′ Range HD Mode: 47 Mics per 6 MHz Channel System Features:
ATW-DR3220LK Receiver Features
Audio-Technica LINK-enabled, 2-channel, half-rack receiver Full tuning bandwidth of up to 244 MHz, depending on region (up to 138 MHz in the U.S.), in the broadcast range enables flexible channel planning in complex RF environments Switchable between normal mode (Antenna Combining Diversity) and robust mode (MRC True Diversity), which offers superior RF stability User can switch from Standard mode (17 frequencies per 6 MHz TV channel) to HD mode (47 frequencies per 6 MHz TV channel) when operating in congested urban RF environments Onboard DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel Supports AES256 encryption for superior security Equipped with a network port for monitoring and device configuration via Wireless Manager Receiver can be powered by included AC adapter or PoE+; PoE+ also provides redundancy to keep the receiver powered if AC drops out Receiver can be set to mixed output in situations where input channels are limited Spectrum analysis (accessible via receiver’s front-panel display and/or Wireless Manager software) and IR sync functionality make setup easy Wireless Manager’s system management tools include those to configure detailed EQ and COMP settings, and an advanced walk test for visual confirmation of multiple RF conditions Multipoint receiver function allows a transmitter to be detected by multiple D50 networked receivers, with Wireless Manager software automatically switching to the receiver that has the best signal Included short and long rack ears can be used to mount one receiver in a half-rack space and two long ears can be combined as a joining plate to mount two receivers in a full space TAA-compliant (U.S.); Radio Equipment Directive (RED) cybersecurity-compliant (EU) Firmware updates are performed in Wireless Manager Includes: ATW-DR3220LK receiver, short and long rack ear kit, power supply, antennas, front-mount antenna kit ATW-DT3201 Transmitter Features

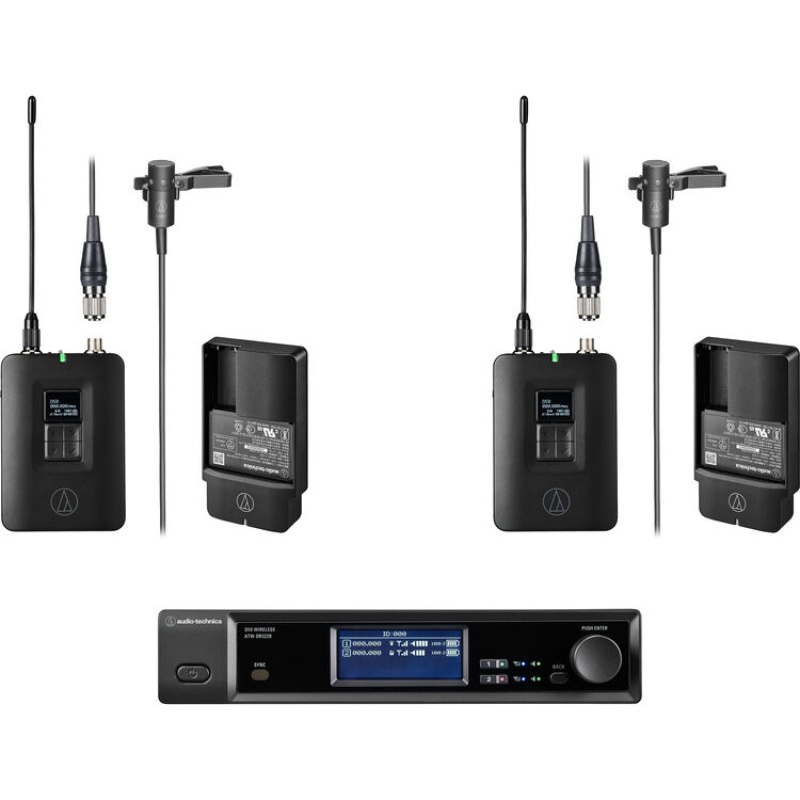

Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with a cH-style screw-down 4-pin connector Features external control buttons, mute switch, OLED display, and a SideTrack function that enables switching between multiple outputs Powered by a custom-designed lithium-ion battery for best-in-class battery life and convenient charging in the ATW-CHG6 two-bay charging station (sold separately) or ATW-CHGA6 battery charger (included with ATW-DT3201DF2C) Seven-color LED, along with seven physical color rings, make it easy to color code each channel IR sync functionality enables easy synchronization with receiver Best-in-class, all-metal construction Includes: two ATW-DT3201 Body-pack transmitters, two ATW-CHGA6 battery chargers, two LI-220 rechargeable lithium-ion batteries, two ATW-TI10 color ring indicator kits, two AT831cH wireless cardioid condenser lavalier microphones This D50 2-channel body-pack system features the Audio-Technica LINK-enabled 2-channel receiver, two ATW-DT3201 compact body-pack transmitters, and two AT831cH wireless clip-on lavalier mics.
The half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system’s HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD – a feature that can be especially useful in the congested RF environments of large cities.
The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC.

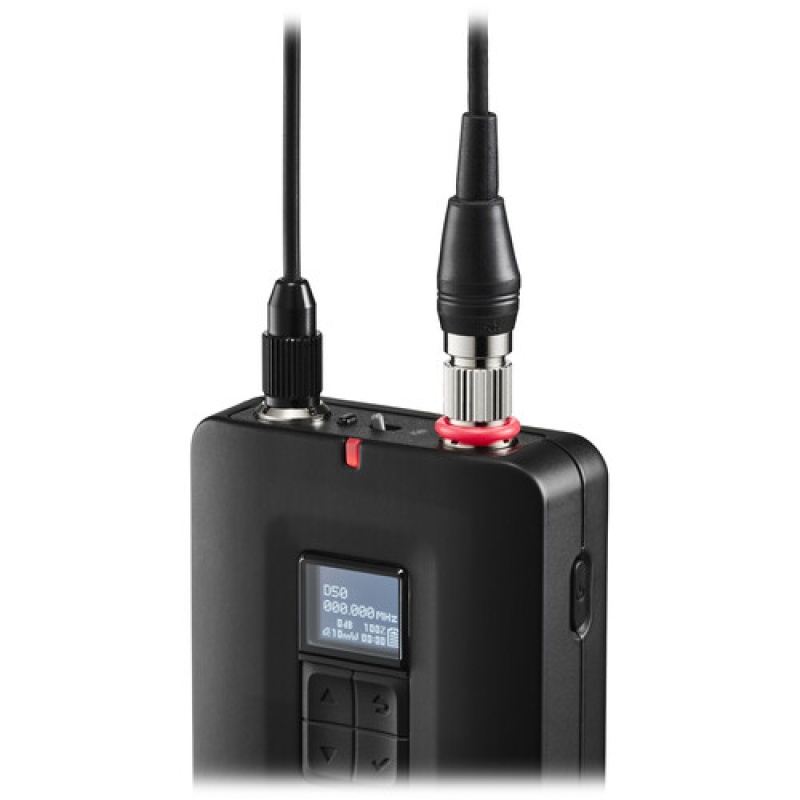

The ATW-DT3201 is a compact body-pack transmitter equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output — providing discrete live communications with fellow performers or audio engineers.

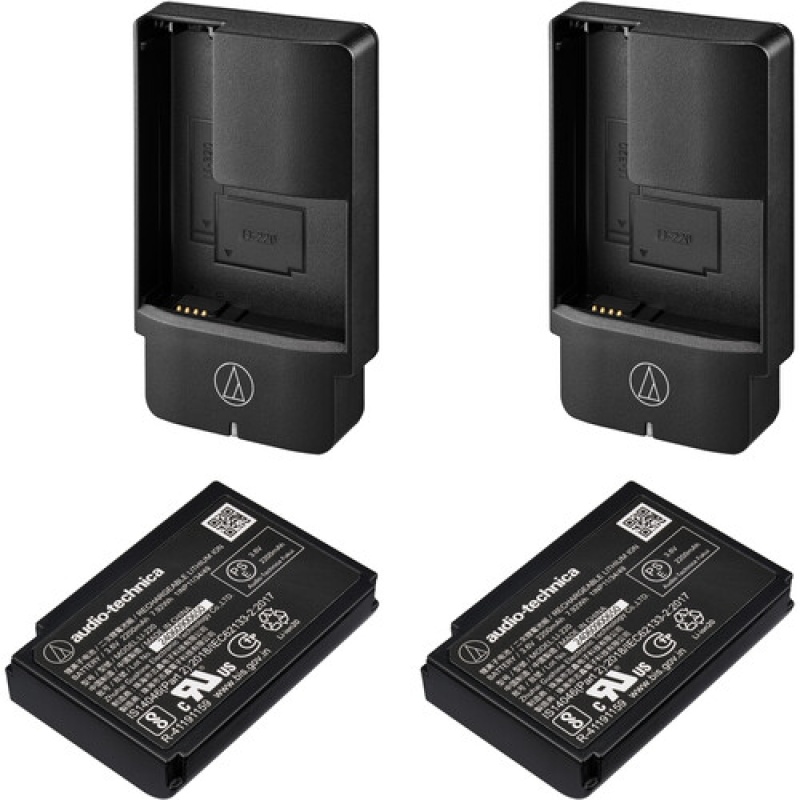

The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station (sold separately), or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger (Included with this system).

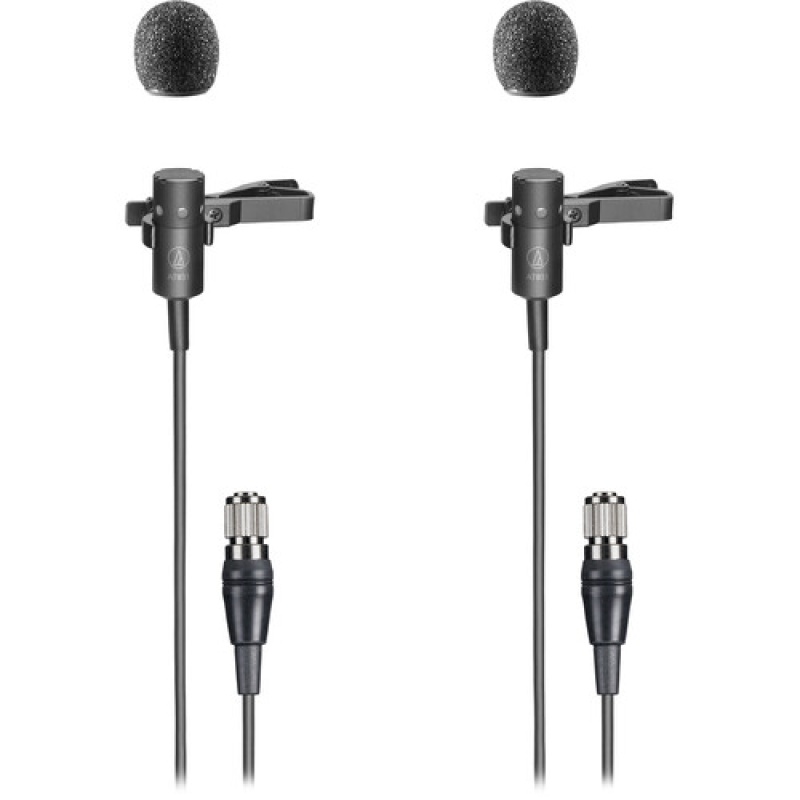

The AT831cH wireless clip-on lavalier mic provides crisp, full-sounding voice pickup, and offers excellent gain before feedback and suppression of background noise. Includes windscreen and clothing clip.
Specifications Overall System Operating Frequencies DF2: 470.125 to 607.875 MHz Modulation Mode Standard: 8-PSK HD mode: 16QAM Occupied Bandwidth Standard: 192 kHz HD mode: 96 kHz Frequency Response Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on attached microphone element. Operating Range 100 m (328′) Open range environment with no interfering signals. Dynamic Range ATW-DT3201 (Mic input): 120 dB, A-weighted, typical ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical ATW-DT3202: 120 dB, A-weighted, typical ATW-DT3207: 120 dB, A-weighted, typical Total Harmonic Distortion 0.1% or less (at 1 kHz, -20 dBFS) Maximum Simultaneous Use (recommended) Standard: 17 channels / 6 MHz Results may vary depending on the radio environment and usage conditions. Delay Standard: 2.1 ms typ. HD mode: 3.3 ms typ. Audio Sampling Rate Standard: 48 kHz HD mode: 48 kHz Encryption System AES256 Notes For product improvement, the product is subject to modification without notice. Receiver & Transmitter Specifications ATW-DR3240DAN RECEIVER Receiving System Robust: MRC true diversity Normal: Antenna combining diversity Image Rejection 70 dB RF Sensitivity -98 dBm (10⁻⁵ BER) Maximum Output Level +18 dBV Antenna Input BNC, 50 ohms Antenna Power 12 V DC, 150 mA x2 Maximum Power Consumption AC adapter: 22 W (75 Btu/h) PoE+: 22 W (75 Btu/h) Power Supply 100 to 240 V AC 50/60 Hz PoE+ (IEEE 802.3at Class 4) Network IP control: 100 Mbps Dante: 1 Gbps Operating Temperature Range -5°C to 40°C (23°F to 104°F) Storage Temperature Range -20°C to 55°C (-4°F to 131°F) Cooling Method Fan-assisted air cooling Airflow Direction Front intake / Rear exhaust Dimensions 210 mm (8.3”) × 288.2 mm (11”) × 42.5 mm (1.7”) (W x D x H) Weight (without included accessories) 2.25 kg (5.0 lbs) Included Accessories ・Whip antenna ×2 ・AC adapter (AD-SA1230XA) ・AC cable ・Rubber foot ×4 ・Rack-mount adapter (short) ・Rack-mount adapter (long) ・Fixing screw × 7 (3 for the bottom, 4 for the sides) ・BNC cable kit ×2

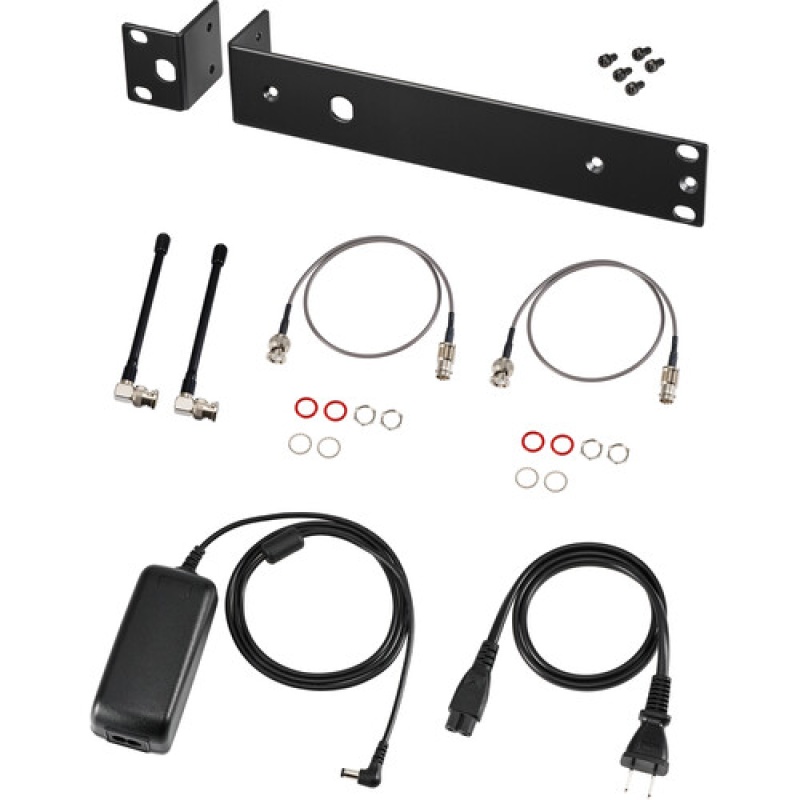

ATW-DR3220LK RECEIVER Receiving System Robust: MRC true diversity Normal: Antenna combining diversity Image Rejection 70 dB RF Sensitivity -98 dBm (10⁻⁵ BER) Maximum Output Level +18 dBV Antenna Input BNC, 50 ohms Antenna Power 12 V DC, 150 mA x2 Maximum Power Consumption AC adapter: 13 W (44 Btu/h) PoE+: 14 W (48 Btu/h) Power Supply 100 to 240 V AC 50/60 Hz PoE+ (IEEE 802.3at Class 4) Network IP control: 100 Mbps Audio-Technica Link: 100 Mbps Operating Temperature Range -5°C to 40°C (23°F to 104°F) Storage Temperature Range -20°C to 55°C (-4°F to 131°F) Cooling Method Fan-assisted air cooling Airflow Direction Front intake / Rear exhaust Dimensions 210 mm (8.3”) × 288.2 mm (11”) × 42.5 mm (1.7”) (W x D x H) Weight (without included accessories) 2.1 kg (4.6 lbs) Included Accessories ・Whip antenna × 2 ・AC adapter (AD-SA1230XA) ・AC cable ・Rubber foot × 4 ・Rack-mount adapter (short) ・Rack-mount adapter (long) ・Fixing screw × 7 (3 for the bottom, 4 for the sides) ・BNC cable kit × 2
ATW-DT3201 BODY-PACK TRANSMITTER RF Output Power Standard: 20 mW, 10 mW, 1 mW HD mode: 1 mW Input Connection Four pin locking connector Pin 1: GND Pin 2: INST. INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +10V High-pass Filter 120 Hz, 12 dB/octave Battery Lithium-ion battery LI-220 (included) Battery Life 12 hours (10 mW) May vary depending on usage conditions. Operating Temperature Range -5◦ C to +45◦ C (23◦ F to 113◦ F) Storage Temperature Range -20°C to 55°C (-4°F to 131°F) Dimensions 56 mm (2.2”) × 80 mm (3.1”) × 24 mm (0.94”) (W x D x H) Weight (with included battery) 172 g (6.1 oz) Included Accessories ・Transmitter indicator set (seven colors) ・Pouch
ATW-DT3202 HANDHELD TRANSMITTER RF Output Power Standard: 20 mW, 10 mW, 1 mW HD mode: 1 mW Microphone Interchangeable microphone capsule-compatible High-pass Filter 120 Hz, 12 dB/octave Battery Lithium-ion battery LI-320 (included) Battery Life 17.5 hours (10 mW) May vary depending on usage conditions. Operating Temperature Range -5◦ C to +45◦ C (23◦ F to 113◦ F) Storage Temperature Range -20°C to 55°C (-4°F to 131°F) Dimensions ATW-DT3202 (without capsule): 183.5mm (7.2”) × 37 mm (1.5”) in diameter ATW-DT3202/C510: 255 mm (10”) × 53.7 mm (2.1”) in diameter Weight (with included battery) ATW-DT3202 (without capsule): 245 g (8.6 oz) ATW-DT3202/C510: 374 g (13 oz) Included Accessories ・Transmitter indicator set (seven colors) ・AT8456a Quiet-Flex™ microphone stand clamp ・5/8″-27 male to 3/8″-16 female threaded screw adapter ・ATW-RR1 anti-rolling ring ・Pouch
ATW-T3207 DESK STAND TRANSMITTER RF Output Power Standard: 20 mW, 10 mW, 1 mW HD mode: 1 mW Microphone Gooseneck microphone supported High-pass Filter 120 Hz, 12 dB/octave Battery Lithium-ion battery LI-220 (included) Battery Life When using a gooseneck microphone with no LED: Approx. 9.5 hours (10 mW) When using a gooseneck microphone with an LED: Approx. 7.5 hours (10 mW) May vary depending on usage conditions. Operating Temperature Range -5◦ C to +45◦ C (23◦ F to 113◦ F) Storage Temperature Range -20°C to 55°C (-4°F to 131°F) USB Charging Connector USB Type-C (USB 2.0) Dimensions 90.5 mm (3.56”) × 129.4 mm (5.1”) × 52.1 mm (2.1”) (W × D × H) Weight (with included battery) 495 g (17 oz) Included Accessory Transmitter indicator set (seven colors)
ESW-CHG6 CHARGING STATION Power Supply 12 V DC, 3.0 A Charging Output AC adapter: When charging one to four transmitters: 5V 1.1A When charging five or six transmitters: 5 V 0.8 A When charging seven or eight transmitters: 5 V 0.5 A PoE+: When charging one to two transmitters: 5V 1.1A When charging three to six transmitters: 5 V 0.5 A Energy-saving mode: 12 V 0.2 A Maximum Power Consumption When charging two transmitters: AC adapter: 15 W (51 Btu/h) PoE+: 16 W (55 Btu/h) Charging Time ・AC adapter ATW-DT3201 (LI-220): When charging one to four transmitters: Approx. 2 hours 30 minutes When charging five to six transmitters: Approx. 3 hours 10 minutes When charging seven to eight transmitters: Approx. 5 hours ATW-DT3202 (LI-320): When charging one to four transmitters: Approx. 3 hours 50 minutes When charging five to six transmitters: Approx. 5 hours When charging seven to eight transmitters: Approx. 7 hours 10 minutes ・PoE+ ATW-DT3201 (LI-220): When charging one to two transmitters: Approx. 2 hours 30 minutes When charging three to six transmitters: Approx. 5 hours ATW-DT3202 (LI-320): When charging one to two transmitters: Approx. 3 hours 50 minutes When charging three to six transmitters: Approx. 7 hours 10 minutes ・Energy-saving mode ATW-DT3201 (LI-220): Approx. 5 hours ATW-DT3202 (LI-320): Approx. 7 hours 10 minutes
Results may vary depending on usage conditions. Network 100 Mbps Operating Temperature Range 0◦ C to 40◦ C (32◦ F to 104◦ F) Storage Temperature Range -20°C to 55°C (-4°F to 131°F) Cooling Method Fan-assisted air cooling Airflow Direction Front intake / Rear exhaust Dimensions 145.6 mm (5.7”) × 78.3 mm (3.1”) × 154mm (6.1”) (W x D x H) Weight 678 g (24 oz) Included Accessories ・Link cable (short) ・Link cable (long) ・Link plate ・Link plate screws ・Microphone holder
ATW-CHG7 CHARGING STATION <s
