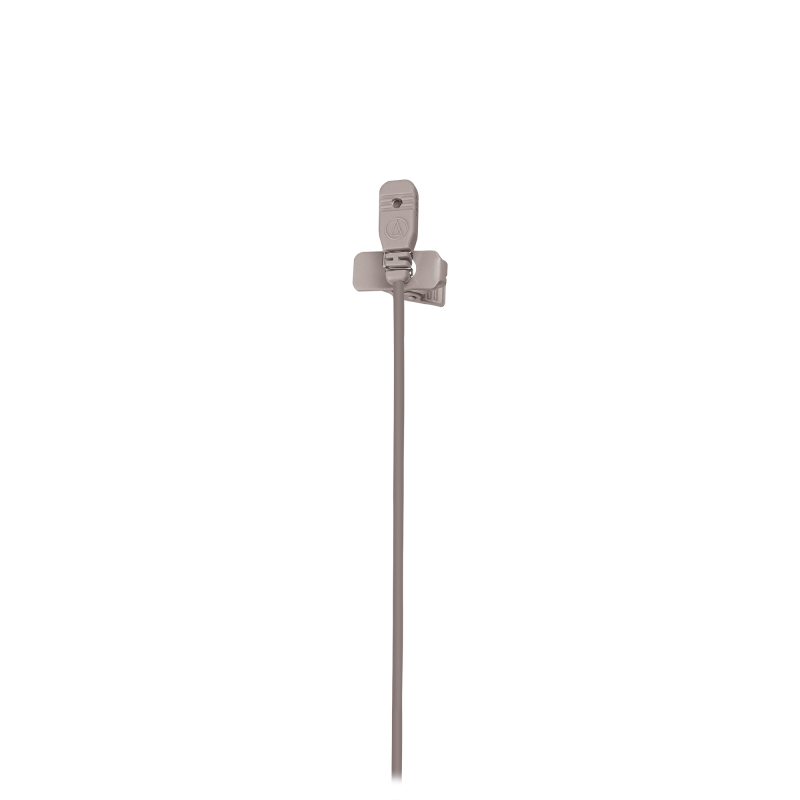

Designed to be worn as a lavalier or hidden in loose clothing or in the hair, the MT830 omnidirectional condenser microphone provides high intelligibility for lecturers, stage/TV performers, and singers. The mic’s wide-range capability ensures clean, accurate reproduction. It operates on phantom power only.
Available configurations:
MT830R: 25′ (7.6 m) permanently attached cable terminated with a TA3F connector for use with the included AT8538 phantom power only in-line power module (80 Hz high-pass filter).
MT830C: 55″ (1.4 m) permanently attached cable (unterminated); no power module.
MT830cH: 55″ (1.4 m) permanently attached cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.
MT830cH-TH: same as MT830cH but in “theater” color (beige).
MT830cW: 55″ (1.4 m) permanently attached cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module.
MT830cW-TH: same as MT830cW but in “theater” color (beige).
MT830mW: 55″ (1.4 m) permanently attached cable terminated with a 3.5 mm connector for use with Audio-Technica PRO 88W body-pack wireless transmitters; no power module.
Small size provides excellent yet unobtrusive sound pickup High intelligibility for lecturers, stage/TV performers and singers Wide-range capability ensures clean, accurate reproduction Element Fixed-charge back plate, permanently polarized condenser Polar Pattern Omnidirectional Frequency Response 30 – 20,000 Hz Low Frequency Roll Off 80 Hz, 18 dB/octave (wired only) Open Circuit Sensitivity -37 dB (14.1 mV) re 1V at 1 Pa Maximum Input Sound Level 135 dB SPL, 1 kHz at 1% T.H.D. Dynamic Range 108 dB, 1 kHz at Max SPL (wired only) Signal-to-Noise Ratio 67 dB, 1 kHz at 1 Pa Phantom Power Requirements 11-52V DC, 2 mA typical (wired only) Switches Flat, roll-off (wired only) Weight Microphone : 1.3 g (0.05 oz) – Power Module : 81 g (2.9 oz) (wired only) Cable 7.6 m (25′) long (permanently attached to microphone), 2.5 mm (0.10″) diameter, 2-conductor, shielded cable with TA3F-type output connector Dimensions Microphone: 15.8 mm (0.62″) long, 8.3 mm (0.33″) wide, 5.0 mm (0.19″) thick Output Connector Integral 3-pin XLRM-type (wired only) Accessories Included AT8538 power module (wired only); AT8420 clothing clip; AT8130 windscreens
