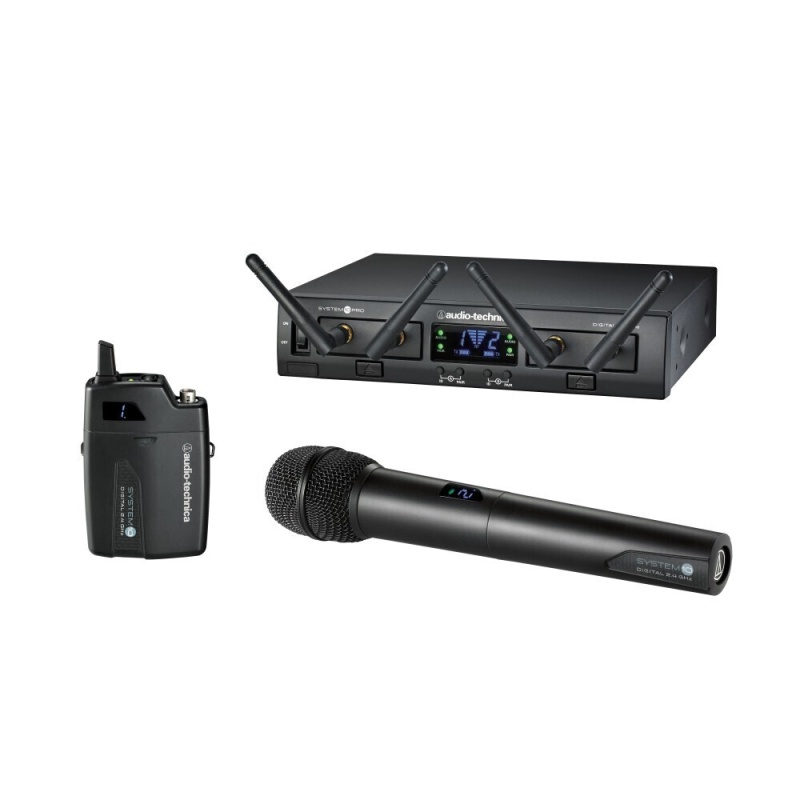

ATW-RC13 Rack-mount receiver chassis, ATWRU13 x2 receiver unit, ATW-T1002 handheld dynamic unidirectional microphone/transmitter and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.
Audio-Technica?s System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.
OVERALL SYSTEM SPECIFICATIONS Operating Frequencies 2.4 GHz ISM band Dynamic Range >109 dB (A-weighted), typical Total Harmonic Distortion Operating Range 60 m (200′) Open range env. with no interfering signals Operating Temperature Range 0C to +40C (32F to 104F) Battery performance may be reduced at very low temperatures Frequency Response 20 Hz to 20 kHz
Depending on microphone type
RECEIVER SPECIFICATIONS Receiving System Diversity (frequency/time/space) Output Connectors Remote Receiver Connector: RJ45
Link Connector: RJ12 Maximum Output Level XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external Dimensions 209.8 mm (8.26″) W x 44 mm (1.73″) H x 169.3 mm (6.67″) D Net Weight 940 grams (33.2 oz) Accessory Included Power supply Accessories Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
BODY-PACK TRANSMITTER SPECIFICATIONS RF Power Output 10 mW Spurious Emissions Following federal and national regulations Input Connections Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V Batteries Two 1.5V AA not included Battery Life >7 hours (alkaline) Depending on battery type and use pattern Dimensions 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D Net Weight 100 grams (3.5 oz) without batteries
HANDHELD TRANSMITTER SPECIFICATIONS RF Power Output 10 mW Spurious Emissions Following federal and national regulations Batteries Two 1.5V AA
not included Battery Life >7 hours (alkaline) Depending on battery type and use pattern Dimensions 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter Net Weight 280 grams (9.9 oz) without batteries Accessory Included AT8456a Quiet-Flex stand clamp
