Audio-Technica’s System 10 PRO Rack-Mount digital wireless system provides the same interference-free operation in the 2.4 GHz range (outside TV bands) as the original System 10 wireless system but with expanded features and versatility. The durable half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels.
Like all the products in the System 10 wireless family, the PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.

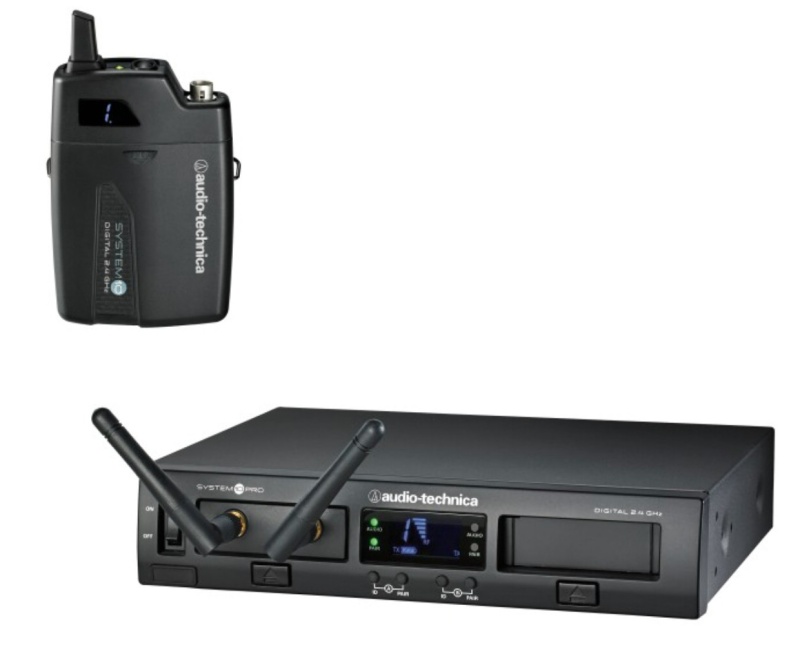

Each System 10 PRO Rack-Mount system includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two ATW-T1001 UniPak body-pack or ATW-T1002 handheld transmitters, or one of each. Both the receiver chassis and transmitters feature easy-to-read displays.
The ATW-T1006 Boundary Microphone/Transmitter and the ATW-T1007 Microphone Desk Stand Transmitter can be paired with any System 10 or System 10 PRO digital wireless receiver and are available separately.
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
Operates in the 2.4 GHz range – completely free from TV interference
Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
Up to five chassis (ten receiver units) can be linked and used simultaneously
Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and setup
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
Three levels of diversity assurance: frequency, time & space
Ground-lift switch helps eliminate audible hum caused by ground loops
The ATW-T1006 Boundary Microphone/Transmitter and the ATW-T1007 Microphone Desk Stand Transmitter can be paired with any System 10 or System 10 PRO digital wireless receiver and are available separately
OVERALL SYSTEM SPECIFICATIONS Operating Frequencies 2.4 GHz ISM band Dynamic Range >109 dB (A-weighted), typical Total Harmonic Distortion RECEIVER SPECIFICATIONS Receiving System Diversity (frequency/time/space) Output Connectors Remote Receiver Connector: RJ45 Link Connector: RJ12 Maximum Output Level XLR, balanced: 0 dBV 1/4″ (6.3 mm), unbalanced: +6 dBV Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external Dimensions 209.8 mm (8.26″) W x 44 mm (1.73″) H x 169.3 mm (6.67″) D Net Weight 940 grams (33.2 oz) Accessory Included Power supply Accessories Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
BODY-PACK TRANSMITTER SPECIFICATIONS RF Power Output 10 mW Spurious Emissions Following federal and national regulations Input Connections Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V Batteries Two 1.5V AA not included Battery Life >7 hours (alkaline) Depending on battery type and use pattern Dimensions 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D Net Weight 100 grams (3.5 oz) without batteries
HANDHELD TRANSMITTER SPECIFICATIONS RF Power Output 10 mW Spurious Emissions Following federal and national regulations Batteries Two 1.5V AA not included Battery Life >7 hours (alkaline) Depending on battery type and use pattern Dimensions 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter Net Weight 280 grams (9.9 oz) without batteries Accessory Included AT8456a Quiet-Flex™ stand clamp
