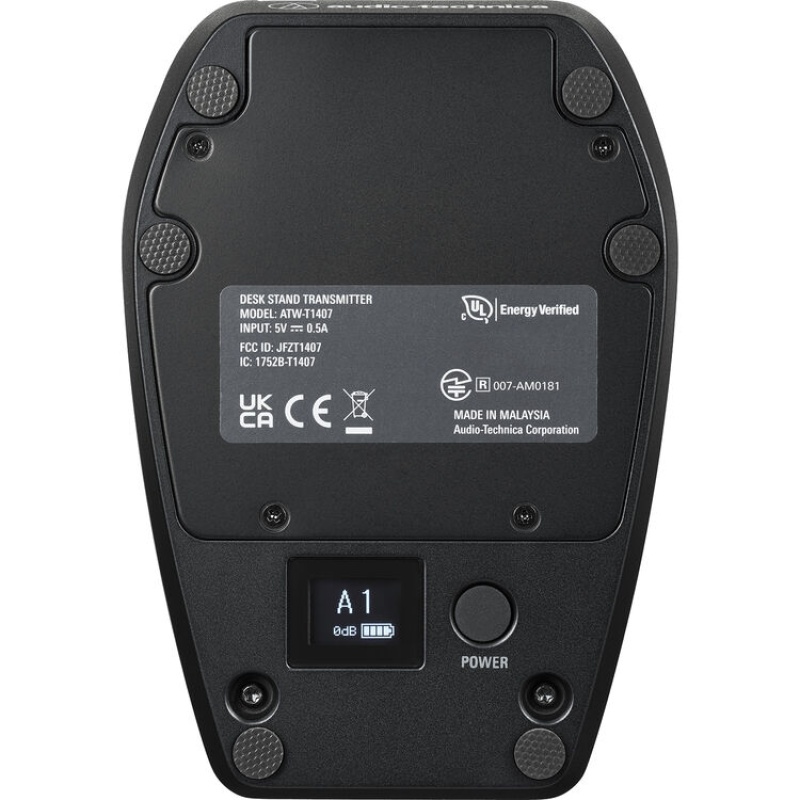

Key Features Use with System 20 PRO Receiver Tabletop Transmitter for Conferencing Use with XLR Gooseneck Microphone Selectable Mute Operation Standard and Conference Mode LEDs OLED Screen Shows Battery Life & Channel AES 128-Bit Encryption 12-Hrs on Built-In Rechargeable Battery Expandable to 20 Mic Channels/200′ Range Audio-Technica ATW-T1407 Overview The Audio-Technica ATW-T1407 is a desktop digital wireless transmitter designed for use with gooseneck XLR conferencing microphones and compatible with a System 20 PRO receiver (microphone and receiver both available separately). The unit delivers high-quality audio transmission at 24-bit / 48 kHz resolution and features a low-profile form factor well suited to meetings and educational applications. The female XLR 3-pin connector supplies 24V phantom power, allowing the transmitter to work with a wide variety of gooseneck microphones. A customizable mute button lets you choose between toggle, touch-to-talk, and touch-to-mute modes, depending on your preferences, while an OLED screen on the bottom shows you channel, level, and battery information. The System 20 PRO operates anywhere in the world in the 2.4 GHz spectrum, well away from potential TV and radio interference. The transmitter’s RF output is fixed at 10mW and the unit offers a maximum transmission range of 200′. Three levels of diversity assurance—frequency, time, and space—ensure reliable audio transmission. A built-in lithium-ion battery powers the ATW-T1407 for up to 12 hours if the accompanying mic has no LED and 8 hours if the mic has an LED. The battery is recharged in 3 hours and 10 minutes via the USB-C port; a USB charger and cable are supplied. The system can be expanded with additional transmitters and receivers to accommodate up to 20 mic channels simultaneously.
Audio-Technica ATW-T1407 Specs Wireless Technology Digital 2.4 GHz Max Operating Range 200′ / 61 m (Line of Sight) Included Transmitters 1x Tabletop Microphone Type No Microphone Included Included Charging Case No System Wireless Technology Digital 2.4 GHz RF Frequency Band 2402 to 2480 MHz Max Operating Range 200′ / 61 m (Line of Sight) Latency 2.8 to 6.7 ms Encryption 128-Bit Built-In Recorder No Timecode Support No Mobile App Compatible No Transmitters Included Transmitters 1x Tabletop RF Output Power 10 mW Antenna Internal Input Level Microphone Audio I/O 1x XLR 3-Pin Female Input Bias/Plug-In & Phantom Power Has Bias/Plug-In Power: Voltage is Unspecified 24 V Phantom Power USB I/O 1x USB-C (Charging) Muting Programmable Mute Switch Gain Range -10 to +20 dB Auto-Level/Gain No Frequency Response 20 Hz to 20 kHz Sync Method Proprietary Display OLED Microphone Microphone Type No Microphone Included Power Transmitter Battery Type 1x Built-In Rechargeable – 1460 mAh Transmitter Battery Life 12 Hours Battery Charging Time 3 Hours Included Charging Case No Charging Case AC/DC Power Adapter No Physical Environmental Resistance No Dimensions 5.1 x 3.6 x 1.9″ / 129.4 x 90.5 x 47.6 mm Weight 17.3 oz / 490 g (with Batteries) Packaging Info Package Weight 1.795 lb Box Dimensions (LxWxH) 12.1 x 4.5 x 3.3″
