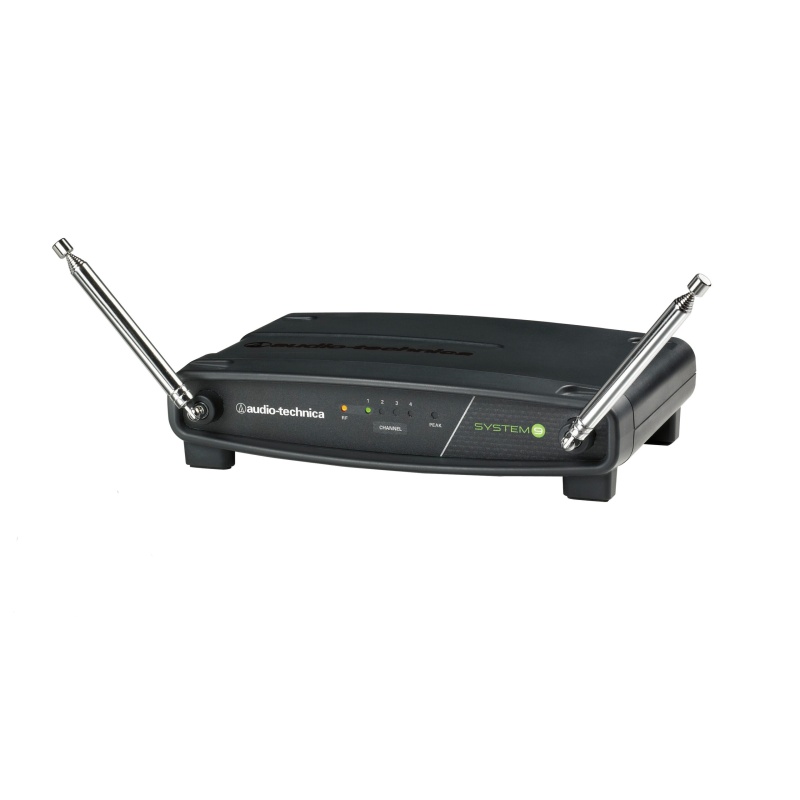

Key Features 4 Selectable VHF Channels Balanced XLR and Unbalanced 1/4″ Outputs Durable Construction Offers Rock-Solid Performance Audio-Technica ATW-R900A Overview The System 9 Frequency-Agile VHF Wireless System Receiver from Audio-Technica is a single-channel receiver, although it is a frequency agile system. This means that you can select any one of the four frequencies (169.505, 170.245, 171.045, and 171.905 MHz) and use up to four System 9 wireless systems at the same time, if each system is set to a different frequency.
This receiver is designed to provide rock-solid performance and can be used when paired with a bodypack transmitter or a handheld transmitter and microphone (sold separately) for capturing audio in sound reinforcement applications.
Furthermore, the receiver is equipped with an advanced dipole antenna for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a offers volume control along with AF Peak, RF, and power indicator lights.
Easy operation and clear, natural sound quality 4 selectable frequency-coordinated VHF channels Balanced XLR and unbalanced 1/4″ output jacks enable use with a wide variety of audio gear Reliable performance and durable construction Advanced dipole antenna system for extended operating range Audio-Technica ATW-R900A Specs System Wireless Technology Analog VHF Number of RF Channel Frequencies 4 Diversity Non-Diversity RF Frequency Band 169 to 172 MHz RF Bandwidth 3 MHz RF Channel Scanning Manual Max Operating Range 200′ / 61 m (Typical) Max Transmitters per Band 1 Timecode Support No Mobile App Compatible No *As of March, 2023: Check with manufacturer for the most up-to-date compatibility Encryption No Modulation FM THD Receiver Receiver Type Tabletop Mounting Options Tabletop (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2 x Telescopic, Fixed (Front-Mount) Number of Audio Channels 1 Audio I/O 1 x 1/4″ TRS Unbalanced Output 1 x XLR 3-Pin Male Balanced Output Audio Output Level XLR Output: 350 dBm (Balanced) 1/4″ Output: 700 dBm Phantom Power Protection No Frequency Response 80 Hz to 13 kHz Network I/O No USB/Lightning Connectivity No Standalone Audio Interface Capable No Approximate RF Sensitivity 20 dBuV Spurious Rejection: 50 dB Power Requirements AC/DC Power Adapter AC/DC Power Adapter 12 VDC at 0.5 A (Included) DC Input Power 12 VDC at 0.5A AC Input Power 100 to 240 VAC, 50 / 60 Hz Display & Indicators 6 x LED (Peak, RF Level, Sync) Dimensions 7.5 x 1.8 x 5.1″ / 190 x 46.2 x 128.5 mm Weight 0.7 lb / 337 g
