Audio-Technica U853R-SP Overview From the Audio-Technica UniPoint Series, the U853R-SP Hanging Microphone is designed for accurate signal reproduction in theaters, houses-of-worship, conference halls, boardrooms, schools, professional recording applications and more. The U853R features a flexible steel hanger that grips the suspended cable and capsule, enabling easy microphone placement without excess hardware.
The U853’s capsule features a wide frequency response and highly sensitive cardioid capsule. The cardioid pick up pattern provides a focused pick up area by minimizing noise and ambiance at the off-axis sections of the microphone. The result is a focused pick up without residual room noise and feedback. The wide, linear frequency response ensures transparent, accurate reproduction of both vocals and instruments.
A low frequency roll-off switch eliminates rumble and noise associated with room ambiance, acoustics, wind, proximity effect, etc. The U853R’s rich audio quality, detailed signal reproduction, small profile and flexibility make it an excellent choice for capturing choirs, theatrical performances, lectures, sermons, etc.
Flexible Steel Suspension Hanger The steel hanger wraps around the ceiling suspended cable and capsule. The flexible design enables flexible positioning and placement. Interchangeable Capsules The UniPoint series features interchangeable capsules. A cardioid capsule is included although hyper-cardioid, omni-directional and UniLine capsules are available as options. Cardioid Polar Pattern The included cardioid capsule provides a focused pick up pattern while minimizing noise and ambiance that can cause feedback. RFI Shielding UniGuard RFI-shielding protects the microphone against noise caused by radio-frequency interference in the area.
SPECIFICATIONS ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 30-20,000 Hz
LOW FREQUENCY ROLL-OFF None
OPEN CIRCUIT SENSITIVITY 39 dB (11.2 mV) re 1V at Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 139 dB SPL, kHz at percent T.H.D.
DYNAMIC RANGE (typical) 115 dB, kHz at Max SPL
SIGNAL-TO-NOISE RATIO 70 dB, kHz at Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, mA typical
POWER SWITCH None
WEIGHT (MICROPHONE) 0.5 oz (14 g)
WEIGHT (POWER MODULE) 2.9 oz (81 g)
DIMENSIONS (MICROPHONE) 1.34 in (34.0 mm) long
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
0.48 in (12.2 mm) diameter
DIMENSIONS (POWER MODULE) Same as standard XLR connector
OUTPUT CONNECTOR (POWER MODULE) Built-in to Integral 3-pin XLRM-type connector
CABLE Select length in option box, 0.13 in (3.2 mm) diameter
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100 degrees)
UE-O omnidirectional (360 degrees) UE-UL UniLine (90 degrees)

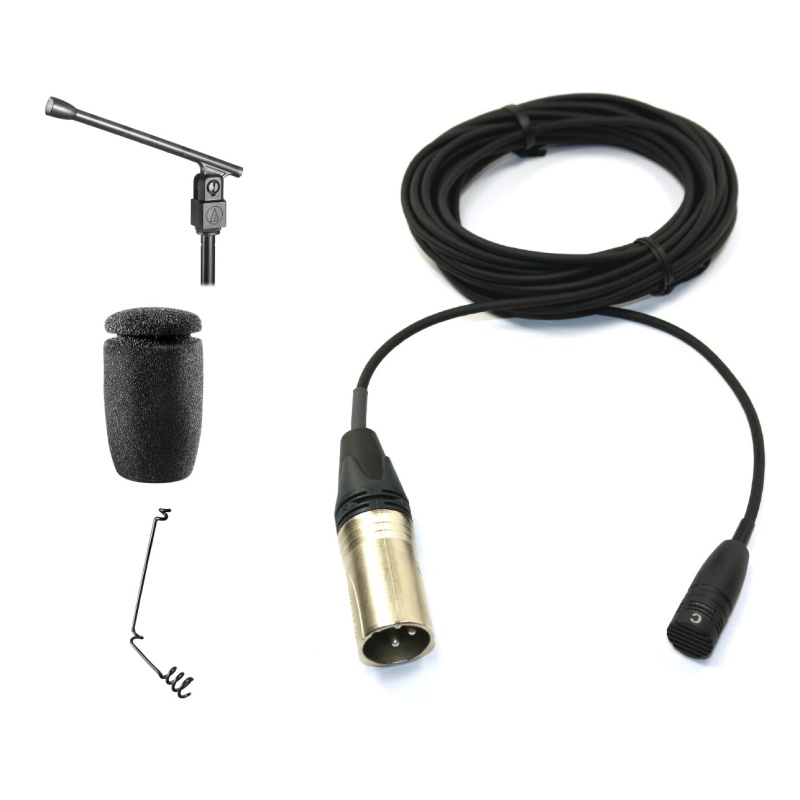

ACCESSORIES FURNISHED AT8153 Foam windscreen, AT8451 hanger, AT8438 stand mount
AUDIO-TECHNICA CASE STYLE M12
