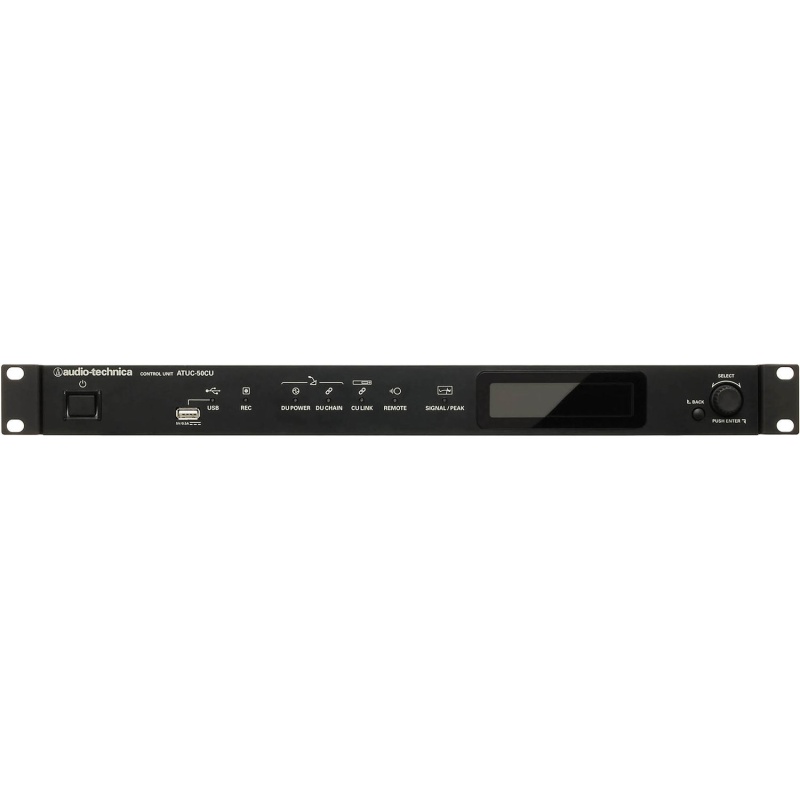

Key Features For Wired ATUC-50 Conferencing System 24-Bit/48 kHz Digital Signal Processing Easy Plug-and-Play Operation Use with ATUC-50DU & ATUC-50IU Use with ATUC-50INT Audio-Technica ATUC-50CU Overview The 19″ rack-mountable Wired Control Unit for ATUC-50 Digital Discussion System from Audio-Technica provides 24-bit/48 kHz digital signal processing with 12-band feedback suppressor, automated gain control (AGC), mic gain, and mic EQ for each connected discussion unit in the conference system. It can be operated locally, through the web remote interface (no software required), or via third-party IP control systems. The unit offers three selectable conference modes: Free Talk, Request to Talk, and Full Remote, along with various override settings. The control unit can record WAV and MP3 files onto a connected USB mass storage device. The unit features two mic/line inputs, two AUX inputs, and two interpretation return inputs and is designed for use with wired systems only.

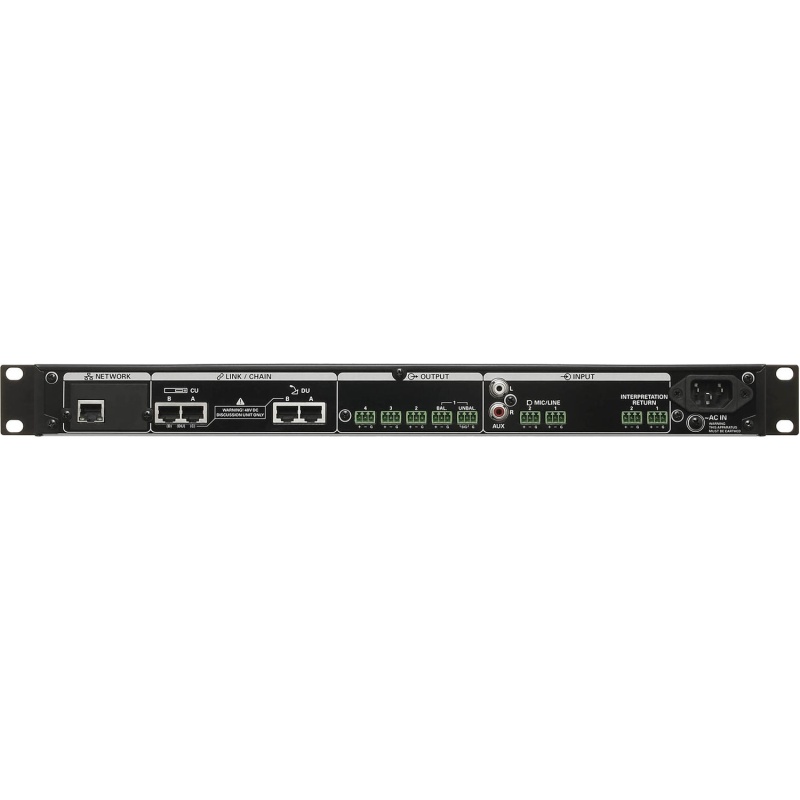

Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor Easy plug-and-play operation Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units, ATUC-50IU integration units, and ATUC-50INT interpretation units 3 ATUC-50CUs can be linked via Cat5e (or better) cable, providing a wired system with up to 300 DU/IU/INTs Systems can be configured in either daisy chain or ring topology Built-in WAV and MP3 recorder lets you record to a USB mass storage device Control available through Web Remote interface and third-party IP control systems Audio-Technica ATUC-50CU Specs General Compatibility Audio-Technica ATUC-50 ATUC-50DU Audio-Technica ATUC-50 ATUC-50IU Audio-Technica ATUC-50 ATUC-50INT Display Panel Type MicroLED Size Not Specified by Manufacturer Inputs / Outputs USB I/O 1 x USB-A Female Input Audio I/O 2 x RCA Line/Mic Input 4 x Block Output (Balanced) 1 x Block Output (Unbalanced) 2 x Block Input (Balanced) Power Power Source AC Input (Included) AC Input Power 100 to 240 VAC, 50 / 60 Hz Power Consumption 175 W (Maximum) Environmental Operating Temperature 32 to 104°F / 0 to 40°C Operating Humidity 25 to 85% Physical Cable Length Not Specified by Manufacturer Dimensions 19 x 13.1 x 1.7″ / 483 x 332 x 44 mm Weight 7.5 lb / 3.4 kg Packaging Info Package Weight 10.05 lb Box Dimensions (LxWxH) 20.9 x 15.9 x 5.7″
