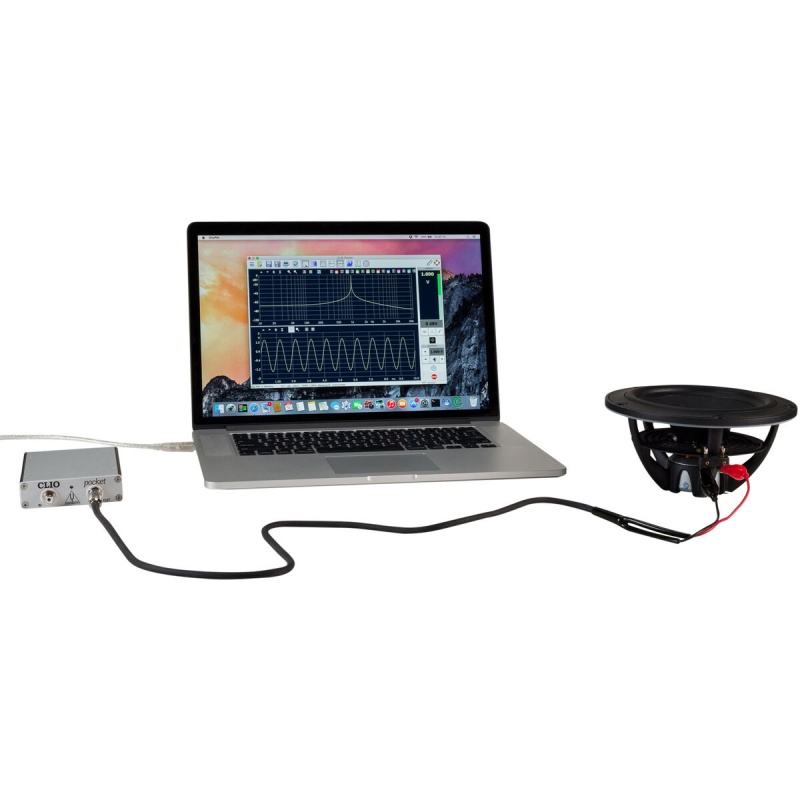

CLIO Pocket 3 is Audiomatica's portable loudspeaker testing and measurement system. From measuring capacitors and calculating T/S parameters, to measuring the frequency response of a finished speaker, CLIO Pocket can do it all! The completely revamped software has a redesigned user interface that's optimized for touch screens, with a modern and easy-to-use feel. This convenient system operates via multi-platform software, making it compatible with both Windows and Apple operating systems

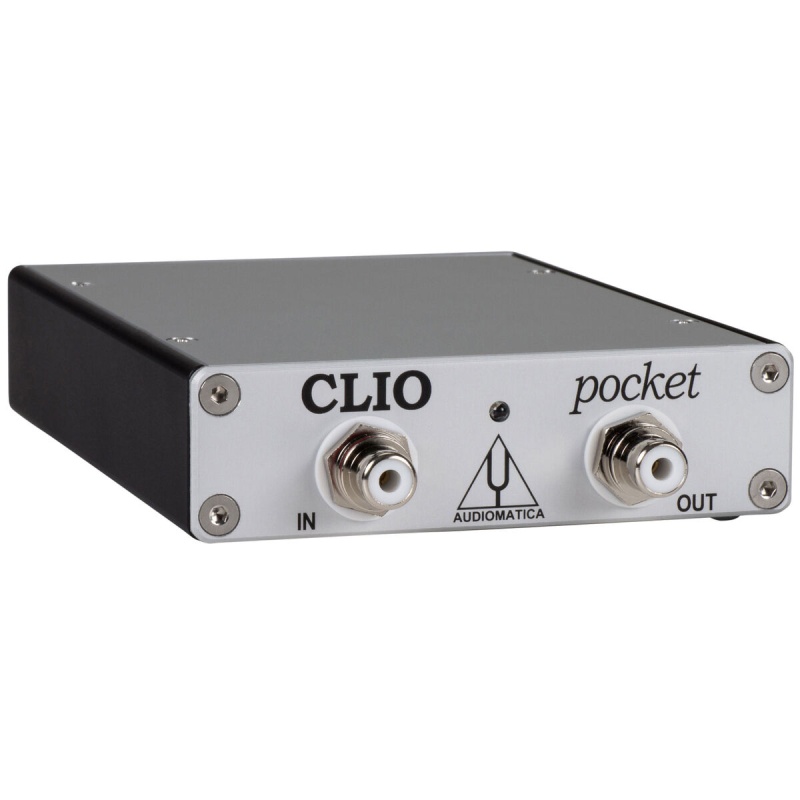

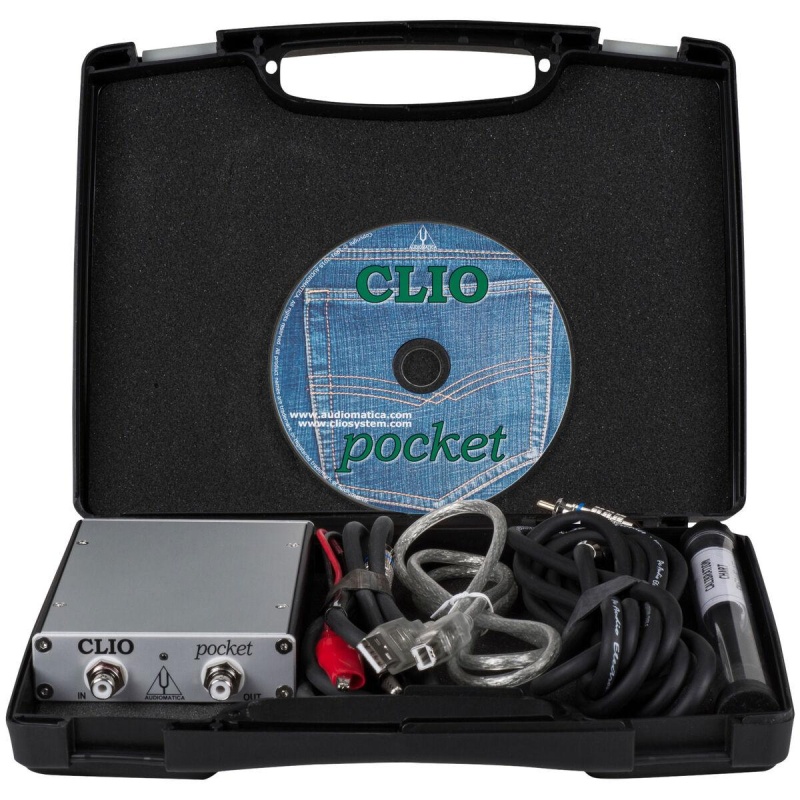

The CLIO Pocket 3 system includes a plastic carrying case, CP-01 Audio Interface, MIC-02 precision microphone, CLIO Pocket SD card with software and drivers, a USB 2.0 cable, microphone cable, and test leads with alligator clips.
For easy setup and calibration of the MIC-02 microphone see

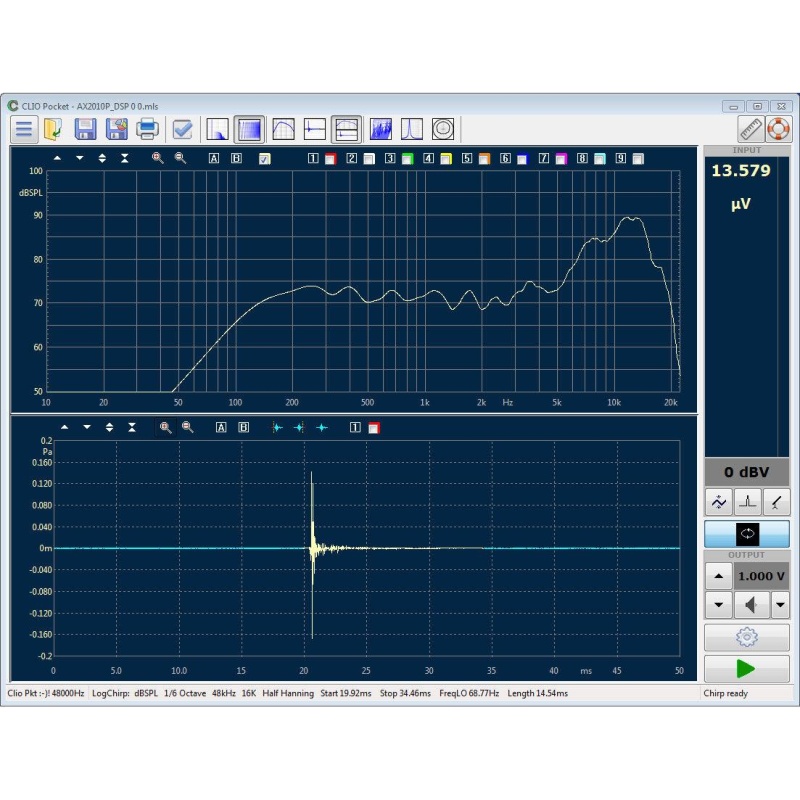

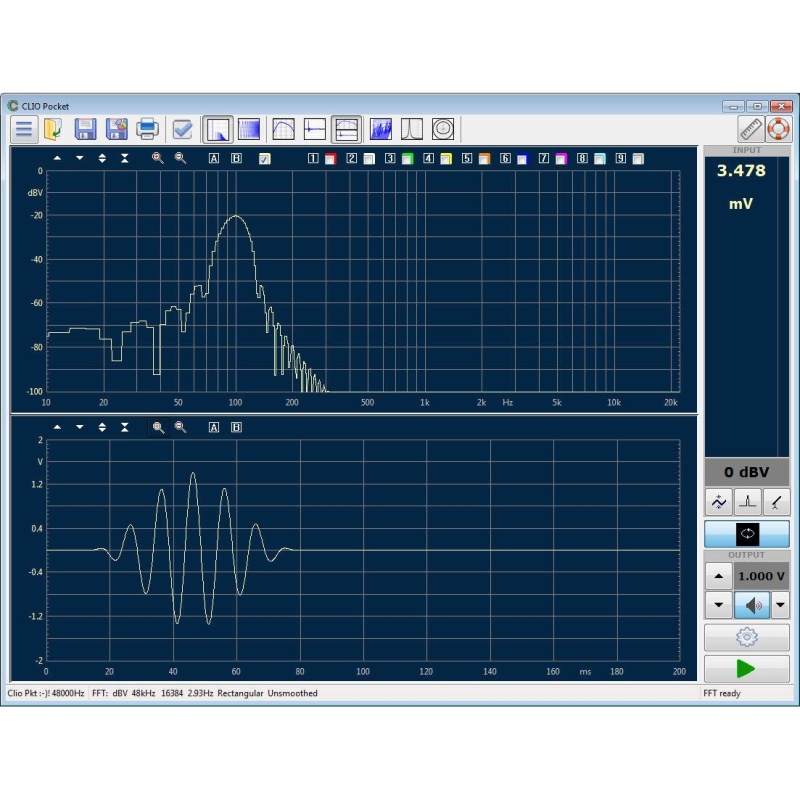

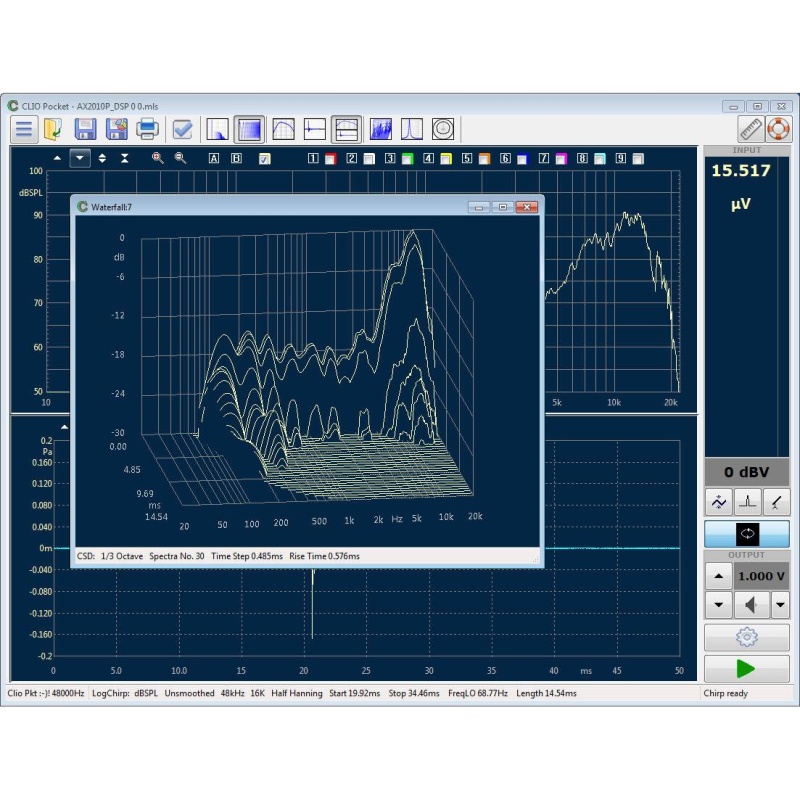

Version 3 adds the following:Amplitude, frequency and time calibrated response.Second harmonic, third harmonic and THD response.Phase response (Normal, Minimum and Excess)Group delay response (Normal, Minimum and Excess)Time impulse responseStep responseSchroeder impulse decayEnergy time curveQuasi-Anechoic acoustic response with time window selectionReal-Time fraction-of-octave analyzer (RTA)Narrow-band FFT analyzerFree-running voltmeter and sound level meter with bar graphDecay analysis with 3D gesture-controlled swiveling graphFree air T/S parametersAdded Mass or Known Volume methods for Vas estimationFFT Bar Graph measurement with Max Hold displayDedicated Generator Panel with on-the-fly controlsAnd morePC Configuration:The CLIO CP-01 audio interface running the CLIO Pocket software can be installed on any computer with the following system specs:

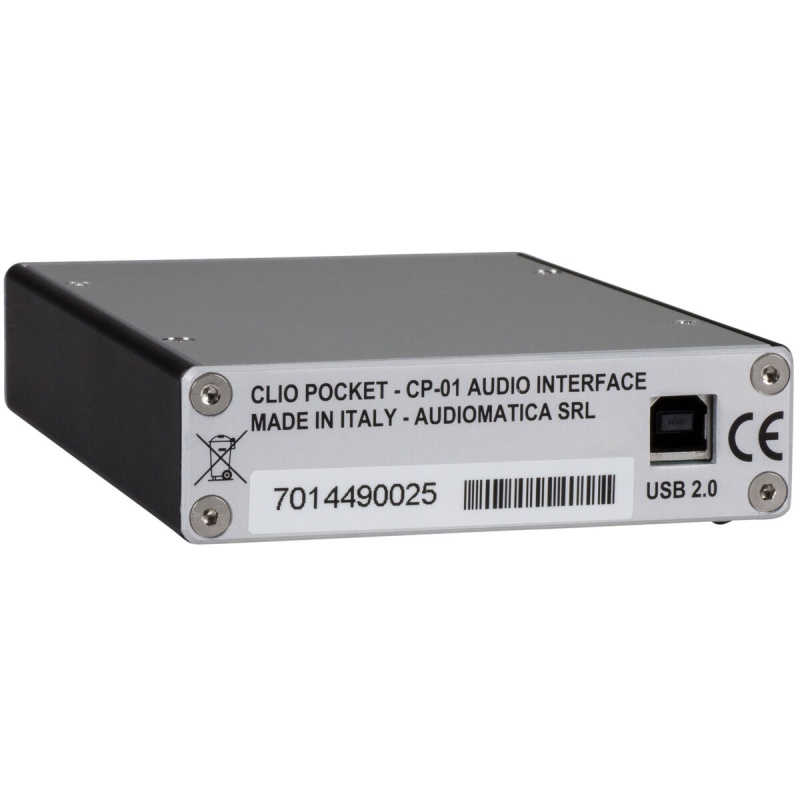

Pentium IV class processor (suggested minimum 2 GHz)One free USB 2.0 port1024 x 786 video adapterMicrosoft Windows (XP to 11) or Apple Mac OSX (10.9 to 13)Technical Specifications:CP-01 Audio Interface:Generator:24 bit sigma-delta D/A converterFrequency range: 1 Hz - 45 kHzFrequency accuracy: better than 0.01%Frequency resolution: 0.01 HzOutput impedance: 150 ohmMax output level (Sine): 13 dBu (3.46V RMS)Attenuation: 0.1 dB steps to full muteTHD+Noise (Sine): 0.008%AC Analyzer:24 bit sigma-delta A/D converterInput range (full scale): +40 dBV down to -40 dBVMax input acceptance: +40 dBV (283V p-p)Input impedance: 64k ohm (5.6k ohm mic)Phantom power supply: 8.2VDA Analyzer:12 bit A/D converterInput range: ±6.5VMiscellaneous:Sampling frequencies: 96 kHz and 48 kHzConnections: analog RCA in and outDigital connection: USB 2.0 portPower supply: USB powered (480 mA)(283 V p-p)Dimensions (H x W x D): 25 mm x 90 mm x 120 mmWeight: 0.3 kgMIC-02 Microphone:Type: Condenser electretAccuracy: ±1 dB, 20 Hz to 10 kHz±2 dB, 10 kHz to 20 kHz (direct field)Maximum level: 130 dB SPLDimensions (Dia x L): 8 mm x 120 mm
