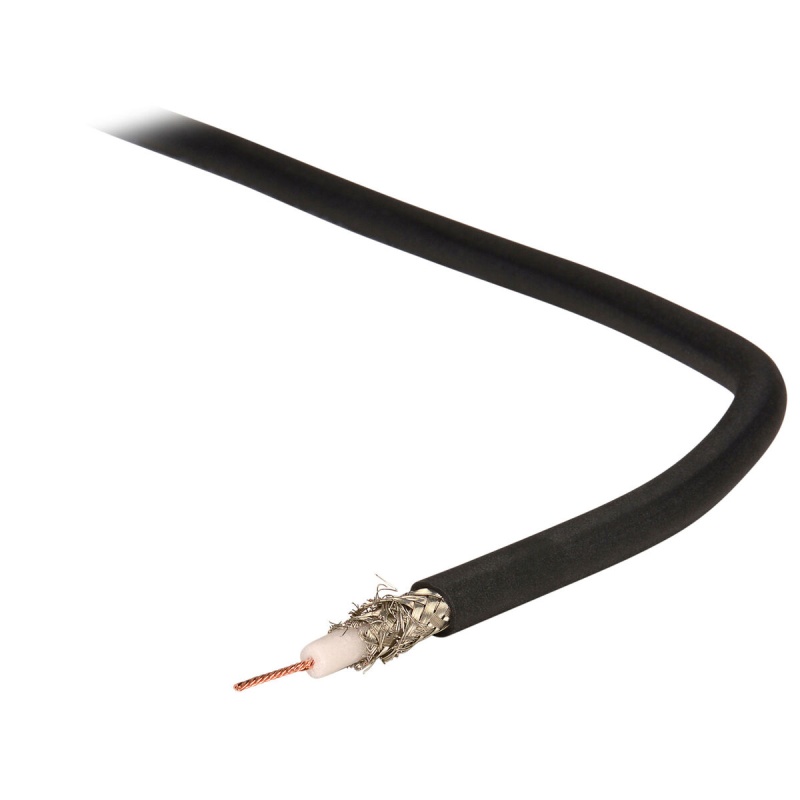

Belden 1505F RG-59/U coaxial cable incorporates a 22 AWG 0.031" stranded bare copper conductor. Dual overlapping layers of tinned copper braid shield provide 1505F's excellent noise rejection and freedom from interference. PVC outer jacket for durability and long-term protection, and the HDPE insulation promotes excellent electrical isolation and reduces capacitance. 75 ohms nominal impedance, ideal for audio and video.
(Sold per foot, please order a minimum of 5 feet)
Specifications: • Center conductor: 0.031" dia. bare compacted copper • Insulation material: 0.145" dia. foamed PE • 95% coverage tinned copper, dual layers • Nominal impedance: 75 ohms • Velocity of propagation: 80% • Capacitance: 17 pF/ft. • Nominal attenuation: 0.200 dB/100 ft. @ 1 MHz • Overall diameter: 0.242".
