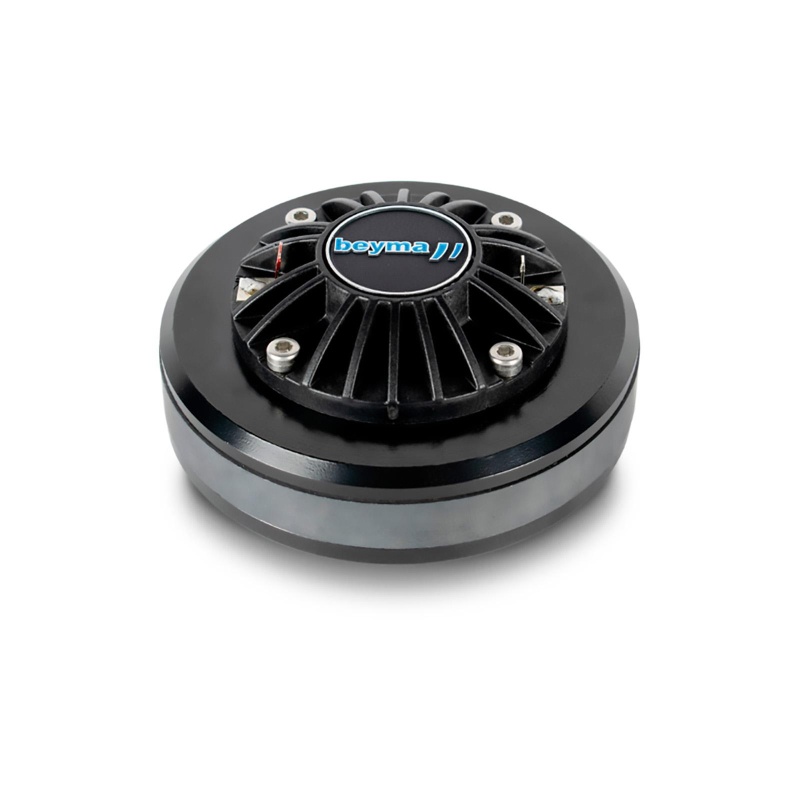

CD-151Fe/PK 1" Polyester Diaphragm Compression Driver 8 Ohm 2/3-BoltThe CD-151Fe/PK's substantial power handling and high sensitivity enable it to deliver clear and dynamic high-frequency output, making it ideal for demanding audio applications. The integration of Deplocex® technology enhances thermal dissipation, reducing power compression and allowing for consistent performance during extended use. VPEQ® technology ensures a linear frequency response, contributing to accurate sound reproduction. The 1.5" copper-clad aluminum voice coil with Kapton former provides durability and reliability under high-power conditions. The high-temperature polymer annular ring diaphragm, optimized using finite element modeling (F.E.M.), offers an extended frequency response with minimized resonances, resulting in a smooth and natural sound. The inclusion of a copper shorting cap reduces distortion and linearizes inductance, further improving sound quality. The F.E.M.-optimized ceramic magnetic circuit enhances overall efficiency and performance. Designed for high-quality sound reinforcement systems and line arrays, this compression driver delivers exceptional performance for professional audio systems.
In high-performance audio applications, achieving the required magnetic force (Bl) and sound pressure levels (SPL) often involves using single-layer edgewound wire or double-layer round wire coils. However, the double-layer configuration has a drawback: one of the coil layers cannot dissipate heat as effectively as the other. Additionally, flat wire designs typically feature shorter magnetic gaps, which limit power handling and lead to power compression at lower voltages.
Beyma's DEPLOCEX technology addresses these challenges by maximizing the surface area of the coil and magnetic gap, enhancing heat dissipation through radiation while maintaining the same Bl and final SPL. This design improves thermal transmission along the entire coil length in contact with the iron.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
As a result, coil temperature is reduced by 30%, minimizing the effects of power compression. This advancement enables high-frequency drivers to achieve over 15% more power.
Any sound transmission channel has its own eigenmodes. For example, in a tube closed at one end by a diaphragm and open at the other, these modes can be easily calculated. However, in compression driver ducts, the situation is much more complex. These modes cause peaks and valleys that degrade the frequency response.
After extensive research, simulations, and testing, Beyma's R&D team has developed a unique solution to enhance the frequency response of our compression drivers.
The principle behind solving this complex problem is straightforward. By varying the shape of the duct, we can linearize the system's response and achieve a better transfer function.
Adjusting the tube's width and designing an organic shape based on various mathematical functions create significant variations in sound pressure levels at specific frequencies, resulting in a much improved transient response.
