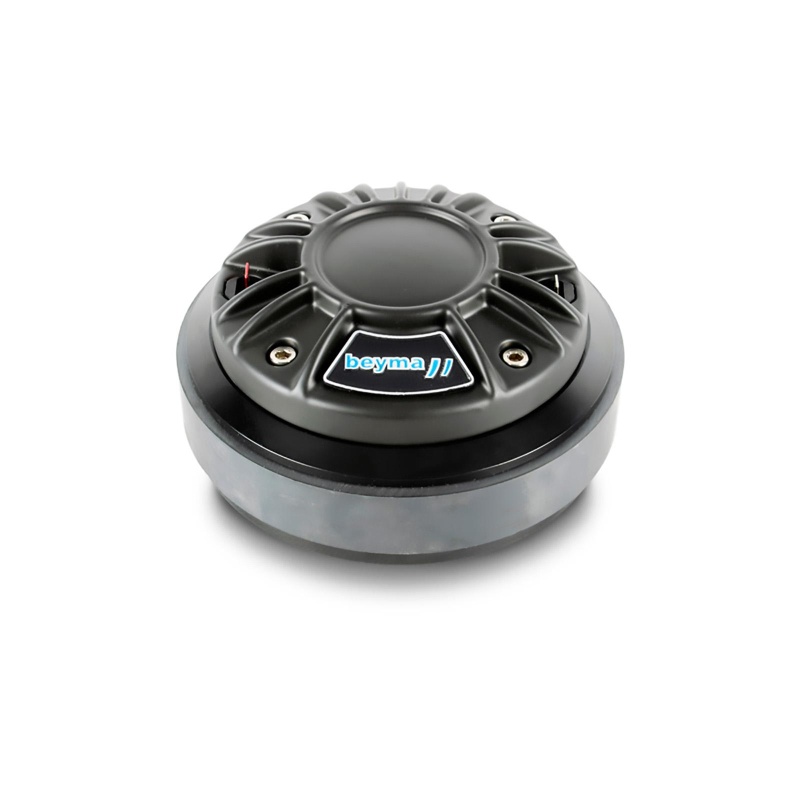

The Beyma CD-171Fe/PT is a 1" compression driver with 8-ohm impedance and a 2/3-bolt configuration. Its substantial power handling and high sensitivity are suited to demanding audio applications, including professional sound reinforcement systems and line arrays.
A 1.75" copper-clad aluminum voice coil with a Kapton former works with DEPLOCEX technology to improve heat dissipation. The supplier states that this design reduces coil temperature by 30% and enables high-frequency drivers to achieve over 15% more power. It increases the coil and magnetic gap surface area for heat radiation while maintaining the same Bl and final SPL, and improves thermal transmission along the coil length in contact with the iron.
The driver has an advanced polyester dome and surround optimized using finite element modeling (F.E.M.) for a linear, extended frequency response with minimized resonances. A copper shorting cap reduces distortion, linearizes inductance and increases output. Its F.E.M.-optimized ceramic magnetic circuit supports efficiency and performance, and an aluminum cover provides structural integrity.
In high-performance audio, magnetic force (Bl) and sound pressure level (SPL) requirements may be met with single-layer edgewound wire or double-layer round wire coils. With a double-layer coil, one layer dissipates heat less effectively; flat-wire designs typically have shorter magnetic gaps, which can limit power handling and lead to power compression at lower voltages.
