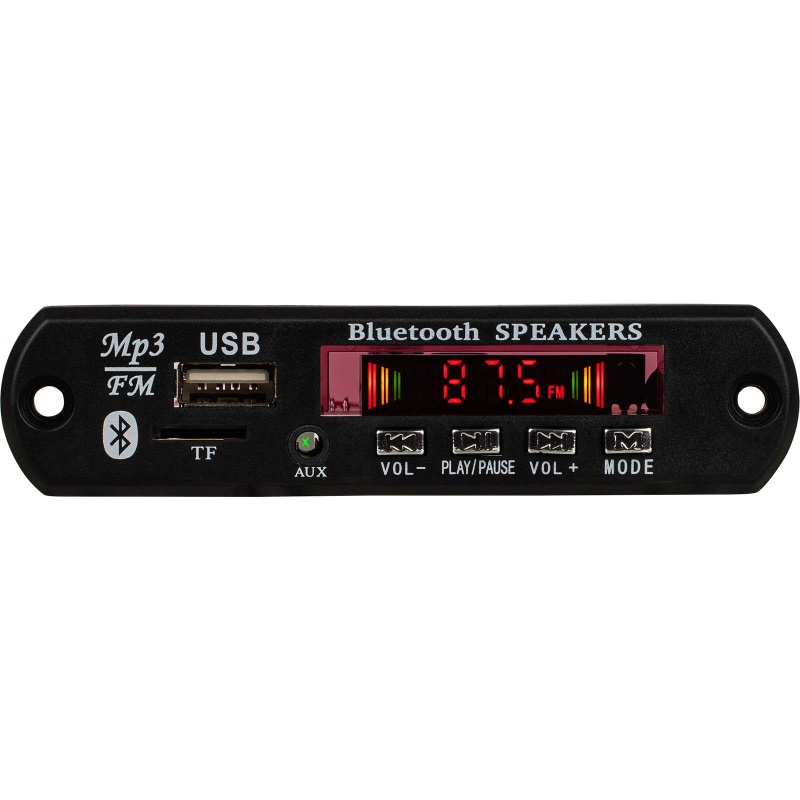

This pre-tested, pre-assembled Parts Express amplifier board combines Bluetooth 5.0, FM radio and a multimedia player for DIY wireless amplifier or portable speaker projects. It has an IR remote for adjusting volume and EQ, plus a built-in microphone for phone calls and voice recording when a flash drive is installed. Use the flash drive ports to play prerecorded music or voice recordings. The Bluetooth name is FX-BT.

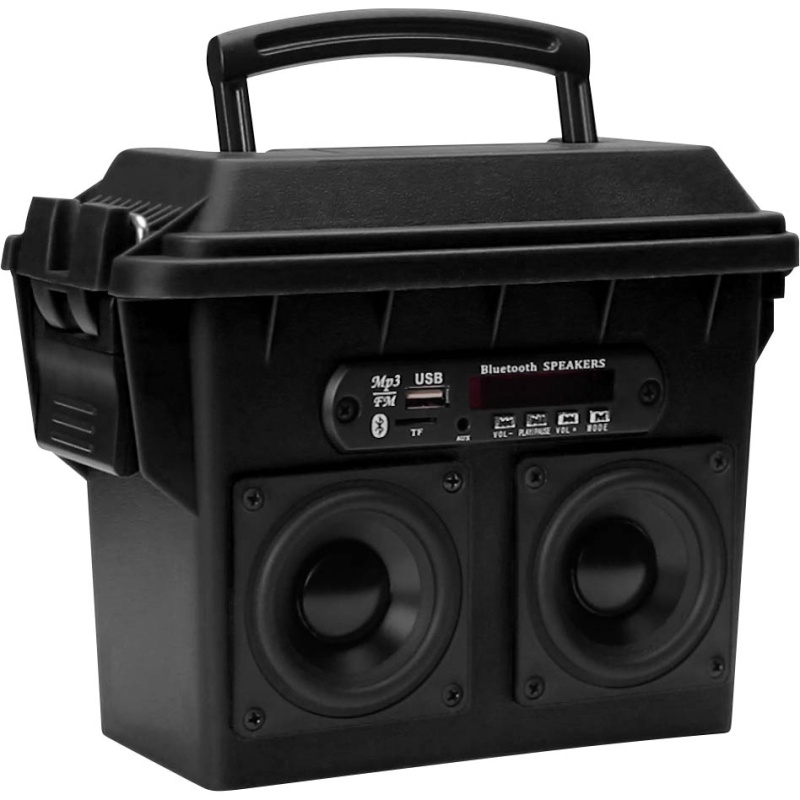

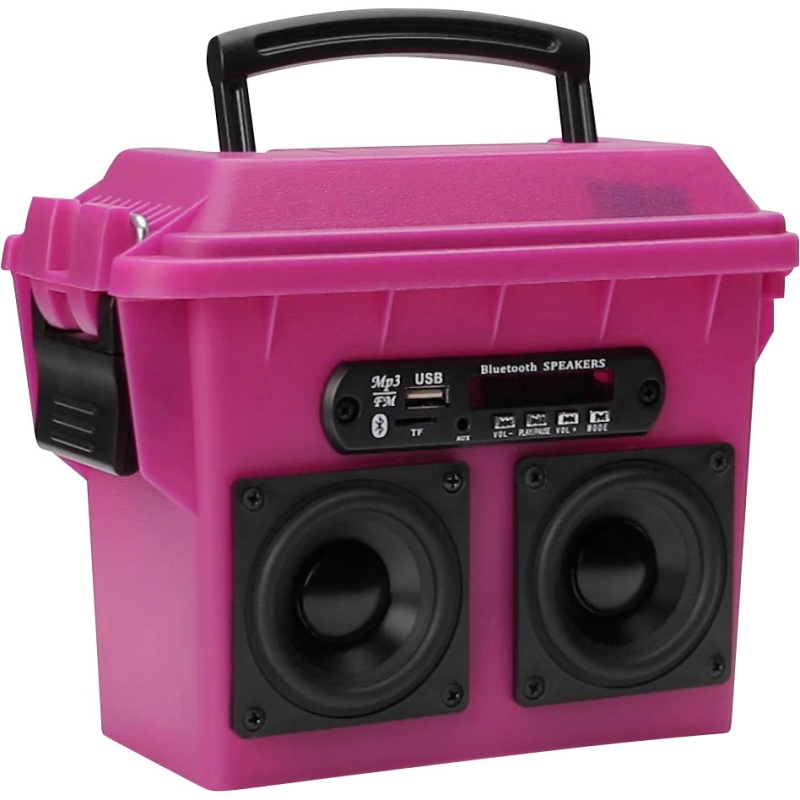

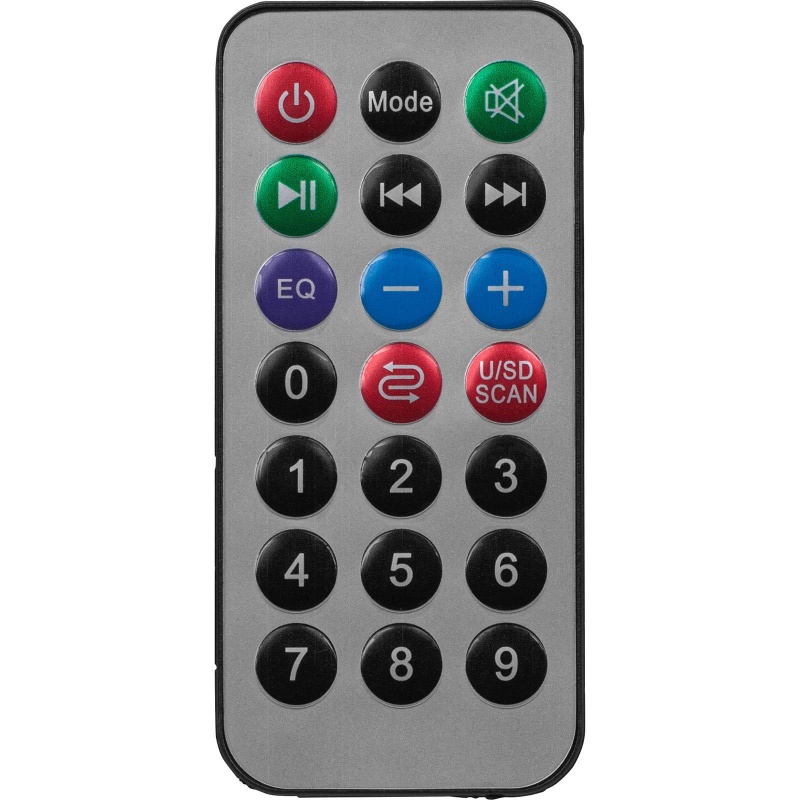

For a portable DIY boom box, the board can be paired with a Dayton Audio LBB-3v2 battery board, a power supply to charge the 3-cell battery board, batteries, speakers and an enclosure. FM reception requires a short piece of antenna or hookup wire, sold separately, soldered to the board. The remote uses a CR2025 battery, sold separately; some remotes are misprinted with CR1220.

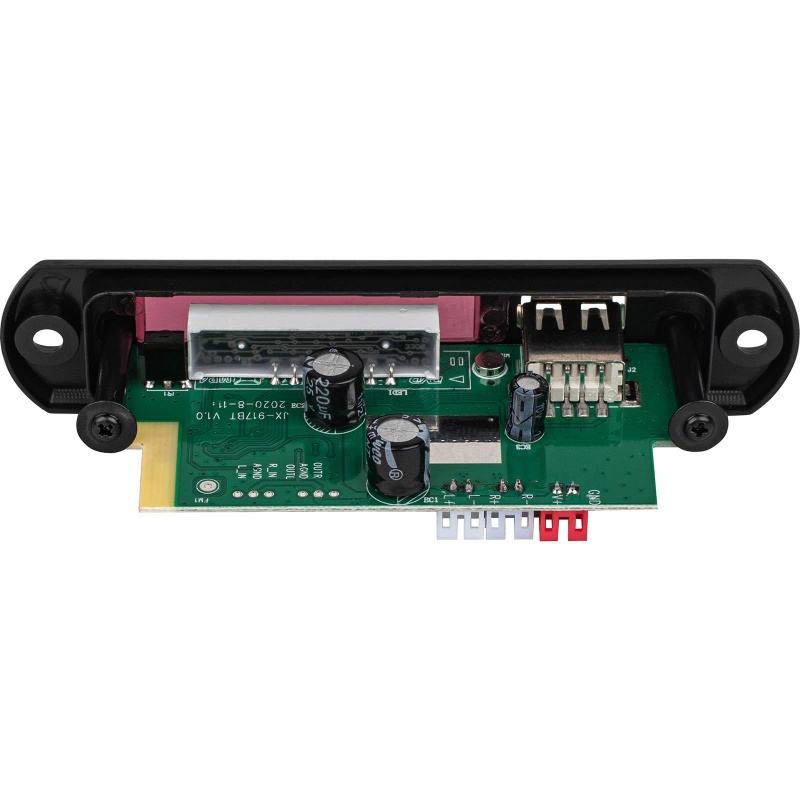

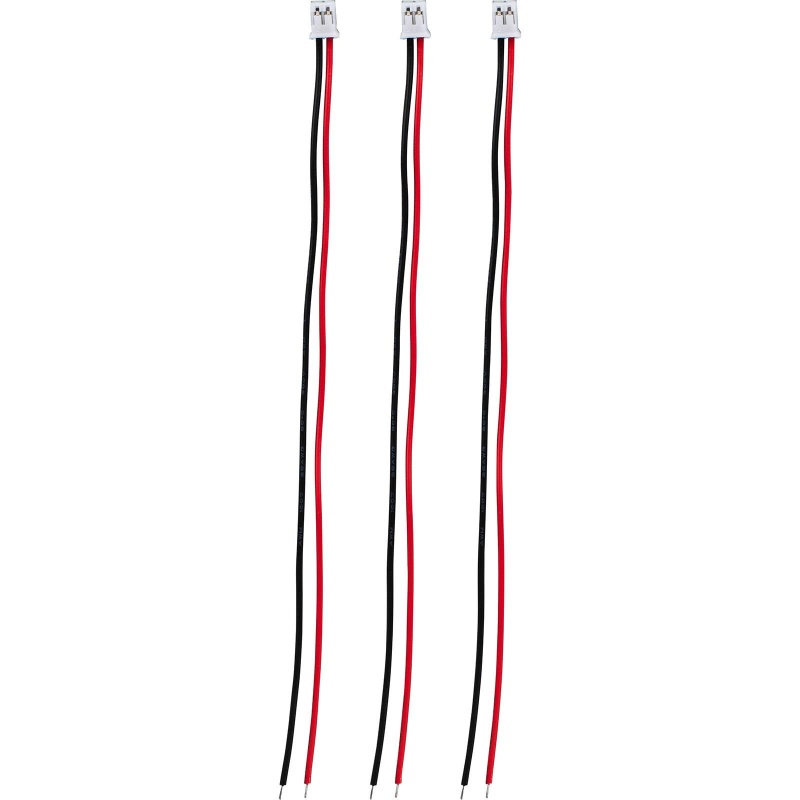

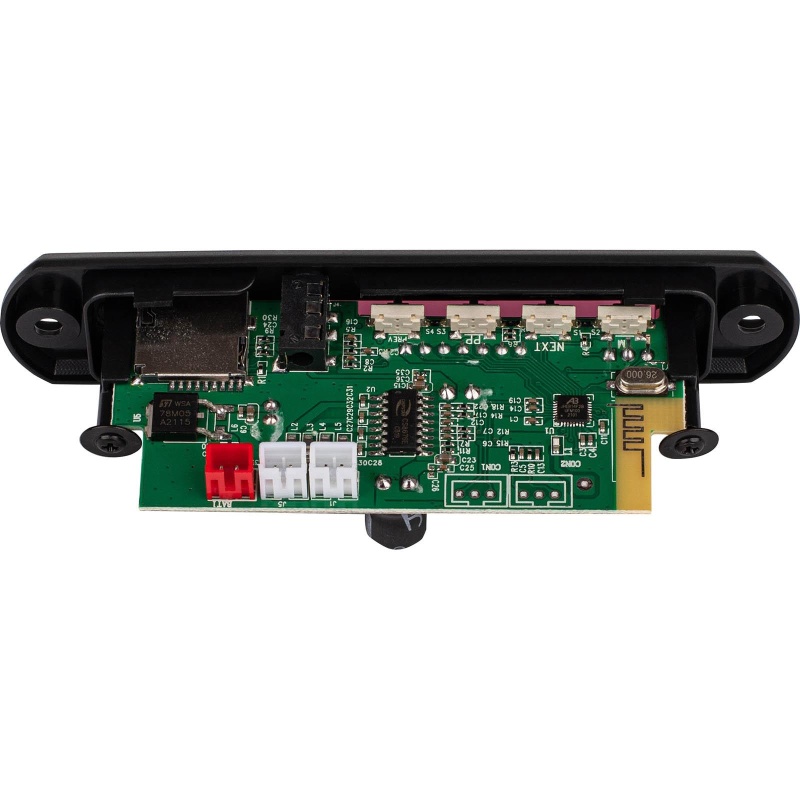

Specifications: Maximum power output is 2 x 25W @ 4 ohms with 18 VDC 3A; impedance is 4 ohm; amplifier chip is CS8676E; SNR is 125 dB; frequency response is 130-18,000 Hz; RMS output is 2 x 15W @ 1% THD; and channel crosstalk is -65 dB. Signal input is through a 3-conductor 3.5 mm jack or board solder holes. Speaker output sockets: 2 x JST PH 2.0. Power input socket: JST PH 2.0. Power requirements: 5-18 VDC; maximum current draw: 3A; standby current draw: 17mA. Line output and FM antenna options use on-board solder holes. Board dimensions without face plate: 2.95" W x 0.5" H x 1.3" D. Face plate dimensions: 4.2" W x 1." H x 1.42" D with board. Required faceplate cutout: 0.79" H x 3.29" W.
