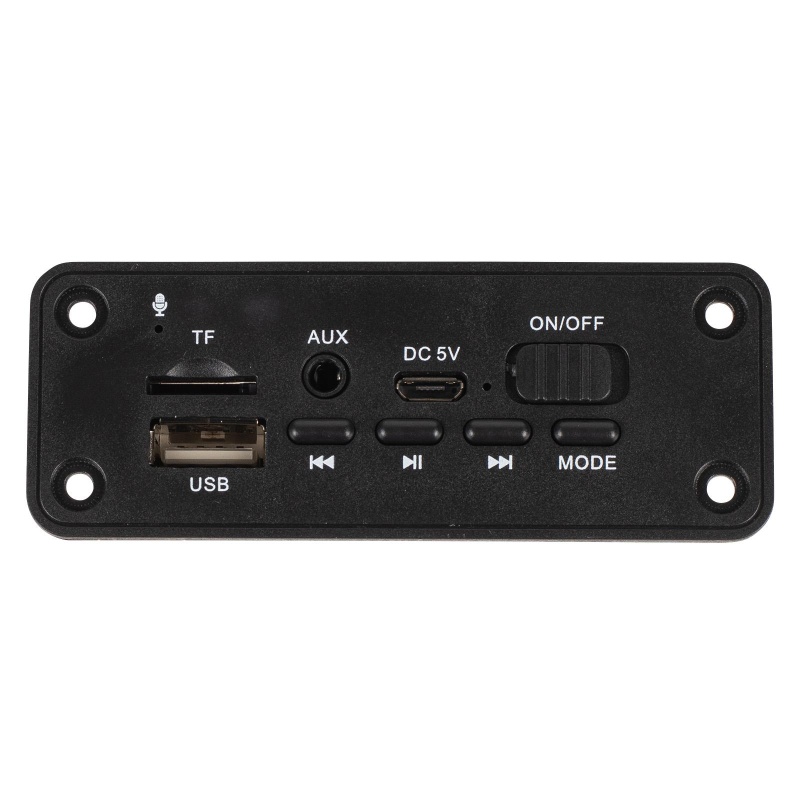

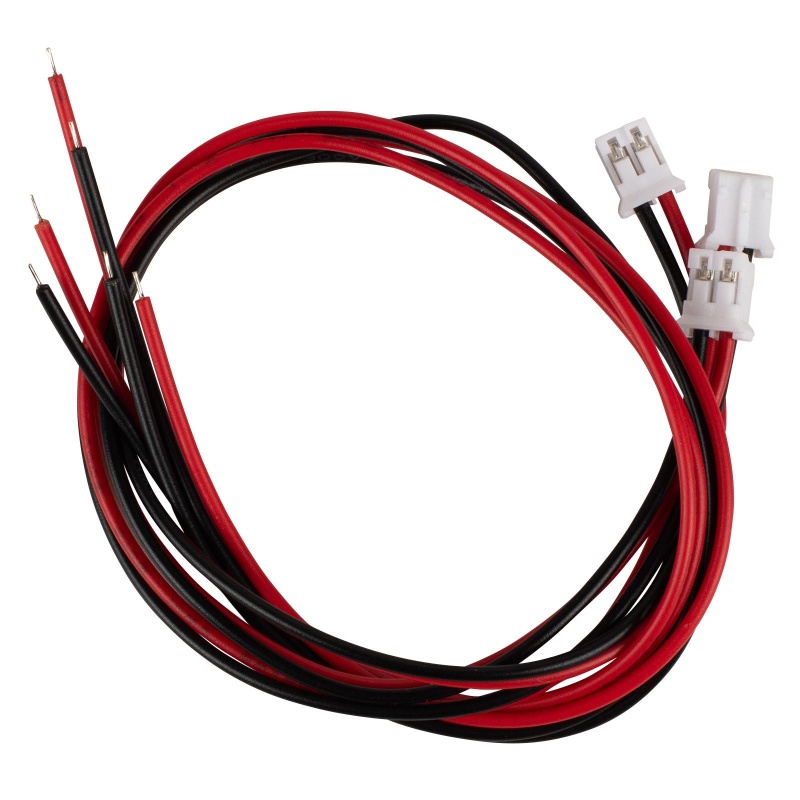

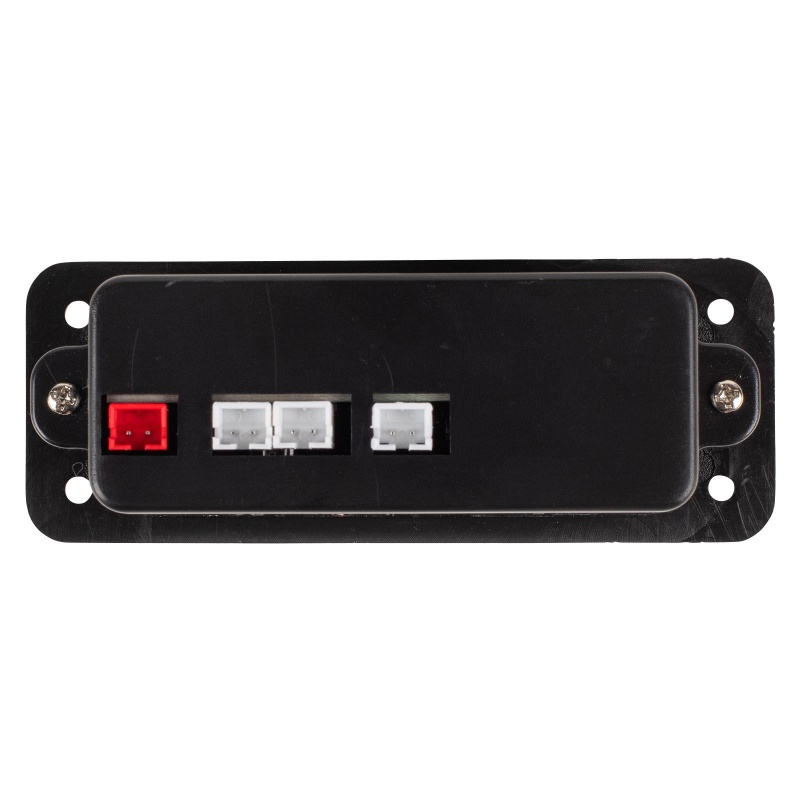

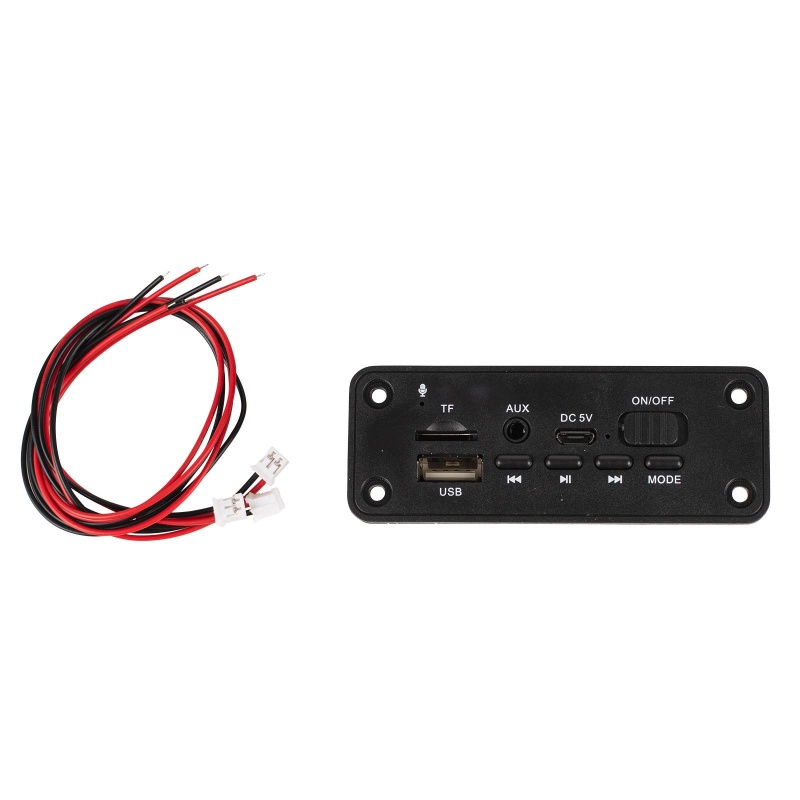

Multiple Music Sources for an Amplified Desktop Audio DIY Project Featuring a 2 x 3W amplifier, this board ensures clear sound reproduction for all your audio needs. Make your own multimedia wireless Bluetooth amplifier or portable speaker with this pre-tested and pre-assembled 2 x 3W amplifier board. The all-in-one design enables you to make smaller projects if space is an issue. The face plate includes a back cover that makes it great for sealed Bluetooth speaker projects. Just add little sealer around the JST jacks after you plug the cables in to isolate it from your speaker cabinet. Add a Lithium Polymer battery with JST PH 2.0 plug to your DIY project for long lasting portable play time. Charge the battery through the built-in micro-USB port in the faceplate.
Stereo Bluetooth 5.0 Connectivity One feature of the all-in-one board design is a built-in stereo Bluetooth 5.0 module, allowing you to connect your devices wirelessly and stream your favorite music. The built-in microphone enables you to take calls through the amplifier with a paired Bluetooth smartphone. Say goodbye to tangled wires and hello to convenience!
Multimedia Stereo Flash Drive Player With the built-in media player feature, you can easily playback audio files from various sources such as USB drives or micro-SD cards. This versatility lets you play your music library continuously without any hassle.
3.5 mm Stereo Audio Input Even if your source device doesn't have Bluetooth, and you haven't downloaded music, this face plate amp board has a built-in stereo 3.5 mm jack just for you. Plug in a 3.5 mm, 3-conductor cable from the headphone jack or line output from your device into the faceplate amp and enjoy your music.
FM Radio for Live Updates Additionally, the FM radio function lets you tune in to your favorite radio stations, keeping you updated with the latest news, music, and entertainment. It's perfect for those who enjoy the traditional broadcasting experience.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
So why settle for anything less when you can have it all in one amp board? What will your next audio DIY project look like with the included faceplate?
Note: FM reception requires a short piece of antenna/hook up wire with a JST 2.0 type plug (sold separately). 2.5 ft. long is recommended for the best FM reception.
Specifications: • Max power output: 2 x 3W @ 4 ohms with 5 VDC 3A • Impedance: 4 to 8 ohm • Frequency response: 50-15,000 Hz • Signal input: 3-conductor 3.5 mm jack • Input sensitivity: 500 mV Max • Speaker output sockets: 2 x JST PH 2.0 mm • Power input socket: JST PH 2.0 mm • Power requirements: 4-6 VDC • Maximum current draw 1A • Antenna jack: JST PH 2.0 mm • Cut out dimensions: 2-9/16" x 1-1/32" + 1/4" notches x 2 (65 x 26 mm + 7 mm notches x 2) • Total dimensions: 3-11/32" W x 1-1/4" H x 1-7/16" D (85 x 32 x 36 mm) • Screw hole spacing: 2-7/8" and 25/32" (73 x 20 mm) with 3/32" (3 mm) holes • Bluetooth: V5.0 • Bluetooth name: JQ-BT • Flash drives: 32 Gb Max.
