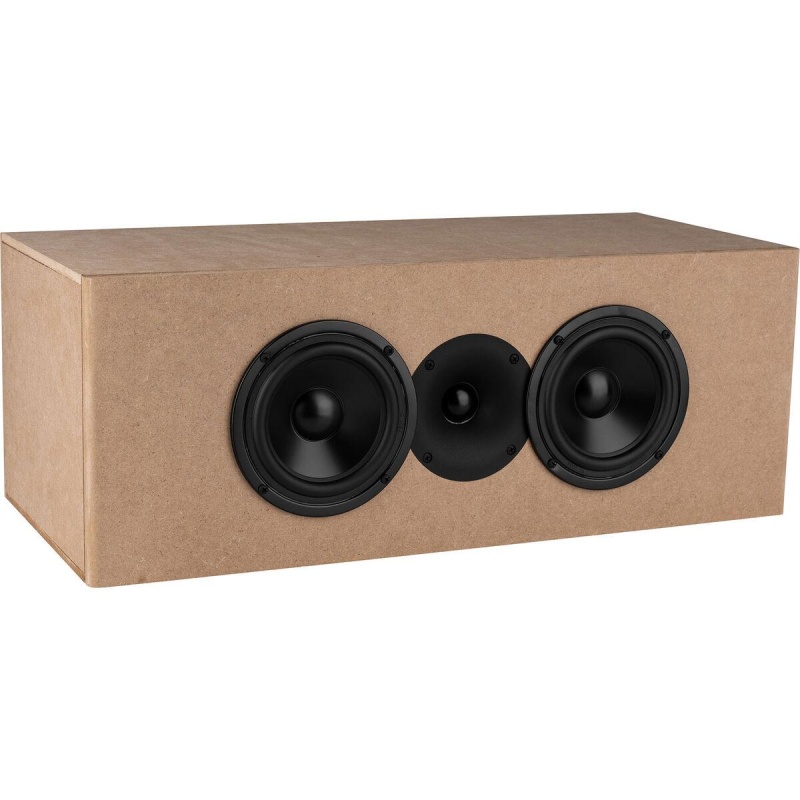

C-Note Center Channel Speaker Kit Designed to be teamed up with the popular C-note bookshelf speaker, the C-note MTM center channel speaker kit makes it simple to build your own high quality home theater system for an unbeatable value. Voiced to match the sound of the C-note bookshelf speaker, this center channel has improved output capability and dynamics that are necessary to meet the demands of today's movie soundtracks. In addition, special attention was taken with the crossover design to keep any sibilance under control, ensuring no listener fatigue after long sessions at high output. This easy to assemble center channel give you the opportunity to complete your own home theater system with a finish that matches your own personal tastes and décor.

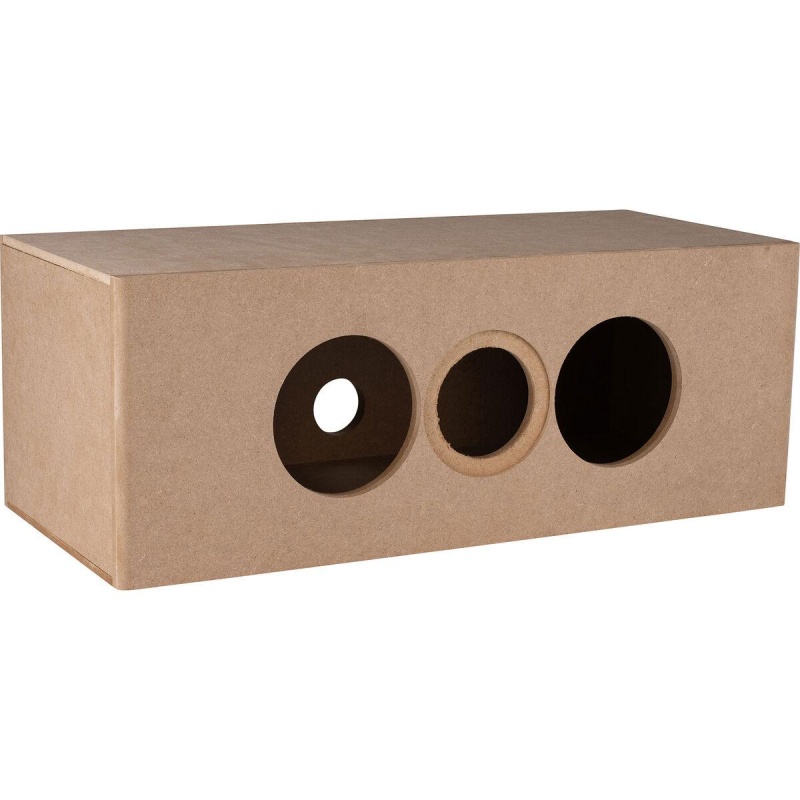

Features:This kit includes nearly everything you need to build a top-notch center channel speaker in no time flat, including: a knock-down enclosure, drivers, crossover components, binding posts, screws, and wire. Designed to provide lifelike vocal response with smooth high frequency responseHigh output capability to deliver the dynamics necessary for movie sound tracksCustomize the C-Note to your personal tastes -- finishing options are limitless CNC cut MDF enclosure is easy to assemble with minimal toolsCustomer Comments:"I enjoyed assembling the speaker, and I have a great sounding center channel. Zero disappointments, for this first time assembler." -Kidd W ⋆⋆⋆⋆⋆
" I just got mine working and it sounds great. I'm a budget type guy and replaced my current center a Pioneer sp-c22. This speaker sounds cleaner and has a noticeably better low end, it still blends okay with my Pioneer towers." - Samuel Y ⋆⋆⋆⋆⋆
" Awesome sound. " -Karl K ⋆⋆⋆⋆⋆
Customer Projects:
The Woofers Two of woofers are used for the midrange and low frequencies. With aluminum cones and powerful motors designed for low distortion, these woofers produces bass with authority while remaining smooth through the midrange frequencies.
The TweetersThe high frequencies are handled by the , also from Dayton Audio. This waveguide-loaded tweeter controls high frequency dispersion for smooth off axis response and natural sound. Another advantage of the waveguide design is that it allows the voice coil to set further back from the baffle for an almost perfect time alignment with the woofer.

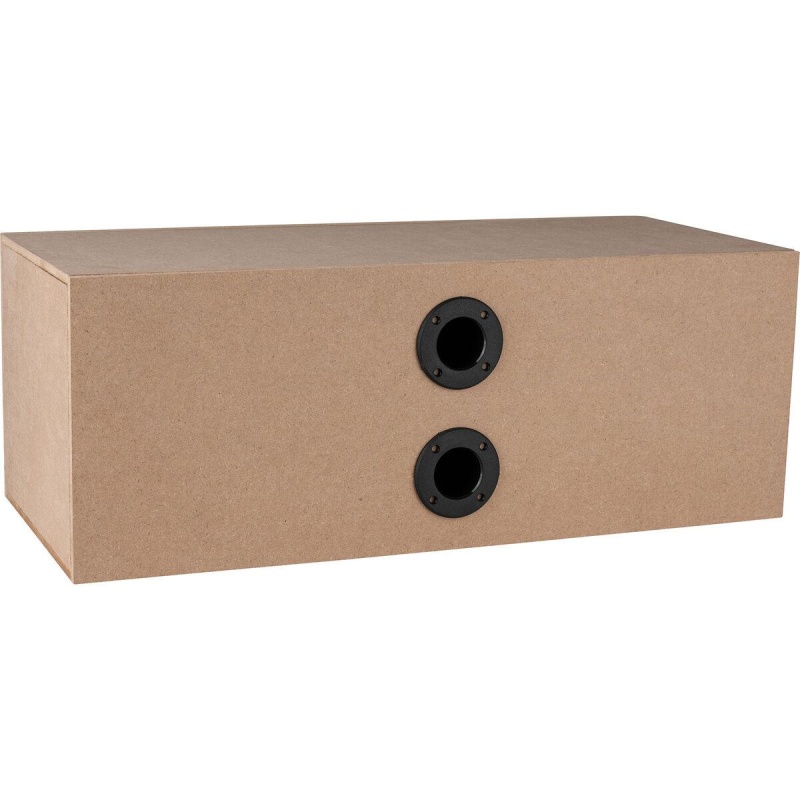

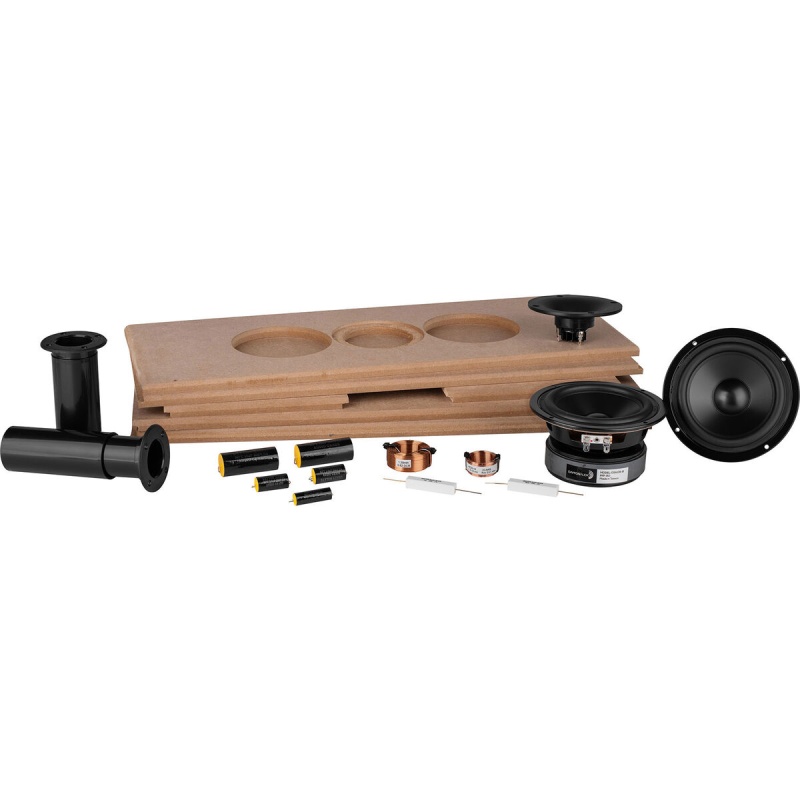

Kit Components:Part #QtyDescription2Dayton Audio DSA135-8 5" Designer Series Aluminum Cone Woofer1Dayton Audio ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm1Dayton Audio DNR-3.0 3 Ohm 10W Precision Audio Grade Resistor1Dayton Audio DNR-20 20 Ohm 10W Precision Audio Grade Resistor1Dayton Audio DMPC-3.0 3.0uF 250V Polypropylene Capacitor2Dayton Audio DMPC-15 15uF 250V Polypropylene Capacitor1Dayton Audio DMPC-2.7 2.7uF 250V Polypropylene Capacitor1Dayton Audio DFFC-0.22 0.22uF 400V By-Pass Capacitor1Dayton Audio 0.10mH 20 AWG Air Core Inductor Crossover Coil1Dayton Audio 1.2mH 20 AWG Air Core Inductor Crossover Coil2Speaker Cabinet Port Tube 1-3/8" ID Adjustable1Dayton Audio BPA-38G HD Binding Post Pair Gold125-Pack #6 x 3/4" Pan Head Deep Thread Black Screws4 ft.16 AWG 2-conductor Power Speaker Wire (Red/Black)-1C-Note MTM Center Channel Kit Knock-Down Enclosure Specifications:Power: 80 Watts RMS/160 Watts maxFrequency response: ±3 dB from 43 - 20,000 HzImpedance: 4 OhmSensitivity: 87 dB 1W/1mDimensions: 8" H x 21.5" W x 9.5" D
