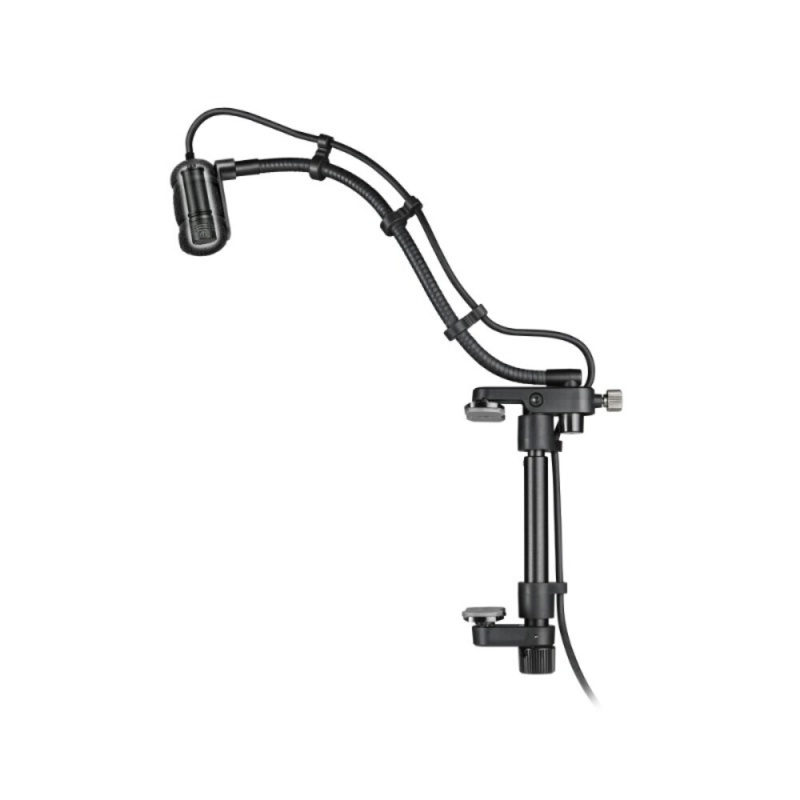

Designed for use with guitars, the ATM350GL UniMount mounting system gives you the tools to perform with confidence. The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491G guitar mount and strong, flexible AT8490L 9″ gooseneck, the mic can be securely fastened to a guitar or other stringed instrument with a body depth of 90-135 mm.
The microphone’s cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.
-Low-profile mic design for minimum visibility
-Crisp, clear, well-balanced microphone response, even at high SPLs
-Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
-UniMount guitar mount with thumbscrew-adjustable clamp attaches securely to guitars and other stringed instruments with body depths of 90-135 mm, and provides excellent shock resistance for the microphone
-Rugged UniMount 9″ gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play
-In-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noise
-Interchangeable elements available for hypercardioid and omnidirectional polar patterns
-Included violin mount with hook-and-loop fastener provides an additional mounting option
SPECIFICATIONS
ELEMENT-Fixed-charge back plate, permanently polarized condenser POLAR PATTERN-Cardioid FREQUENCY RESPONSE-40 – 20,000 Hz LOW FREQUENCY ROLL-OFF-80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY- -49 dB (3.5 mV) re 1V at 1 Pa IMPEDANCE-200 ohms MAXIMUM INPUT SOUND LEVEL-159 dB SPL, 1 kHz at 1% T.H.D. DYNAMIC RANGE-(typical) 130 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO-65 dB, 1 kHz at 1 Pa PHANTOM POWER REQUIREMENTS-11- 52V DC, 3.5 mA typical SWITCH-Flat, roll-off WEIGHT (MICROPHONE)-14.5 g (0.5 oz) WEIGHT (POWER MODULE)-90 g (3.2 oz) DIMENSIONS (MICROPHONE)-37.8 mm (1.49”) long, 12.2 mm (0.48”) maximum body diameter DIMENSIONS (POWER MODULE)-92 mm (3.62″) long, 18.9 mm (0.74″) diameter OUTPUT CONNECTOR (POWER MODULE)-Integral 3-pin XLRM-type CABLE 4.0 m (13.1′) long (permanently attached to microphone), 3.2 mm (0.13″) diameter, 2-conductor shielded cable with HIROSE HR10-type connector OPTIONAL INTERCHANGEABLE ELEMENTS-UE-H hypercardioid (100ï¾°) UE-O omnidirectional (360ï¾°) ACCESSORIES FURNISHED-ATM350a cardioid condenser microphone; AT8543 power module; AT8491G UniMount guitar mount; AT8490L UniMount 9″ gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case AUDIO-TECHNICA CASE STYLE-M36
