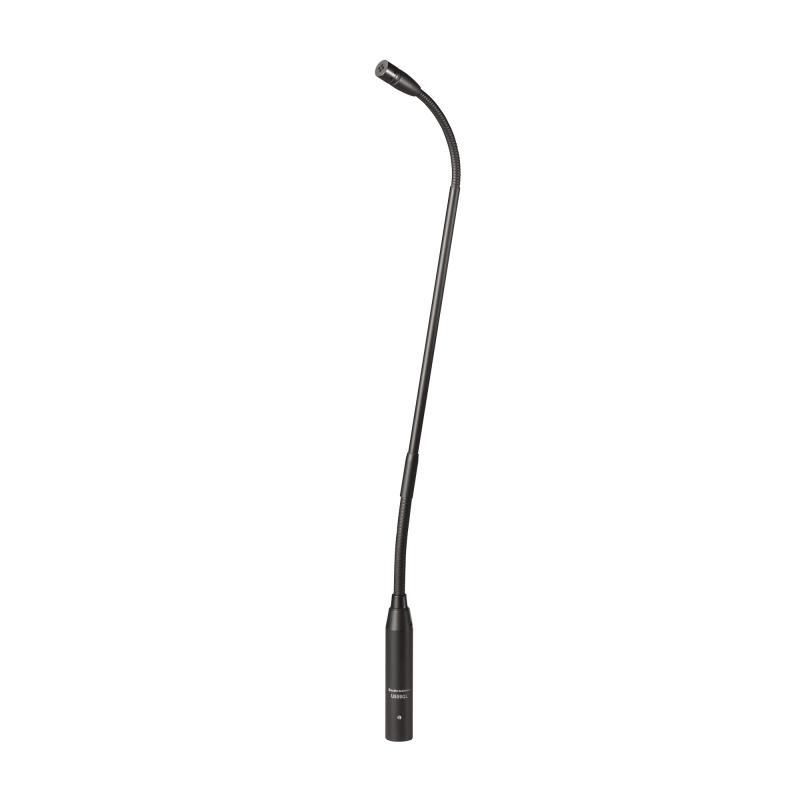

Designed to plug directly into panel- or desk-mounted XLRF-type connector, the U859QL features an ultra-flexible small-diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine line cardioid polar patterns. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80 Hz low-cut UniSteep filter that reduces pickup of low-frequency ambient noise. The microphone is 18.90 in long.
– Designed for high-quality sound reinforcement, professional recording and broadcasting – Superior off-axis rejection for maximum gain before feedback – Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no inmemory in permits quick positioning into desired shape – UniSteep filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality – Self-contained electronics eliminate need for external power module – Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
SPECIFICATIONS ELEMENT Fixed-charge back plate permanently polarized condenser POLAR PATTERN Cardioid FREQUENCY RESPONSE 100-16,000 Hz LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave OPEN CIRCUIT SENSITIVITY 43 dB (7.0 mV) re 1V at Pa IMPEDANCE 250 ohms MAXIMUM INPUT SOUND LEVEL 140 dB SPL, kHz at percent T.H.D. DYNAMIC RANGE (typical) 111 dB, kHz at Max SPL SIGNAL-TO-NOISE RATIO 65 dB, kHz at Pa PHANTOM POWER REQUIREMENTS 11-52V DC, mA typical SWITCH Flat, roll-off WEIGHT 5.4 oz (152 g) DIMENSIONS 18.90 in (480.0 mm) long,
0.48 in (12.3 mm) head diameter, 0.74 in (18.9 mm) base diameter OUTPUT CONNECTOR Integral 3-pin XLRM-type ACCESSORY FURNISHED AT8153 two-stage foam windscreen AUDIO-TECHNICA CASE STYLE M34
