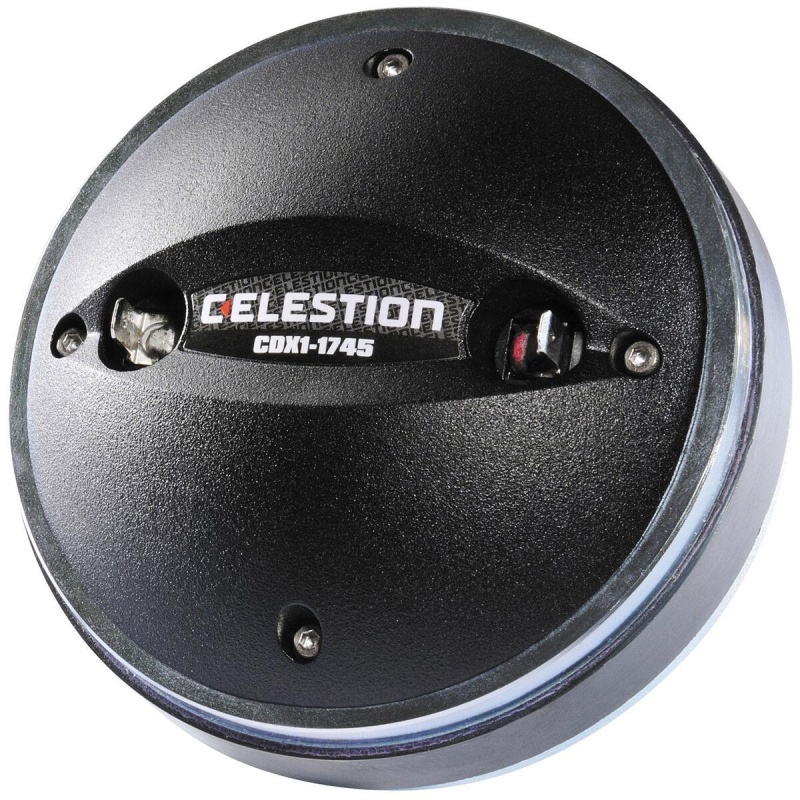

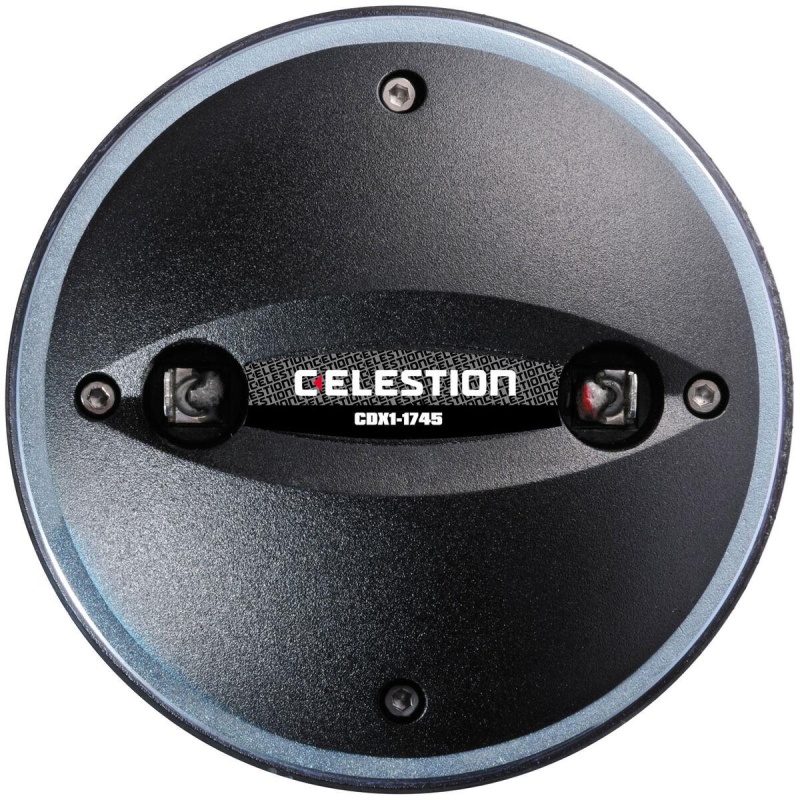

The Celestion CDX1-1745 is a ferrite 1" HF compression driver. FEA optimization of its moving parts and magnetic circuit supports high efficiency, high power handling and very low distortion, with clear hi-fi quality output for pro loudspeaker sound reinforcement.
Specifications: power handling 75 watts RMS (AES standard); recommended min. crossover 2,200 kHz, 12 dB/octave; VCdia 1.75"; impedance 8 ohms; frequency range 1,200-20,000 Hz; sensitivity 110 dB 1W/1m.

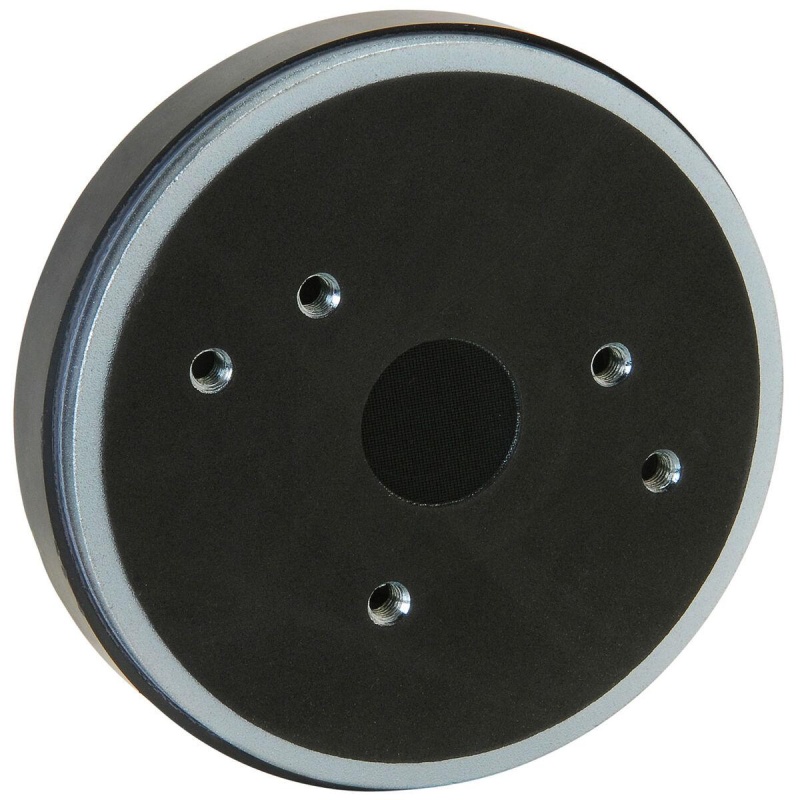

Mounting (flange): 2/3 x M6 holes on 3/2.24" PCD. Dimensions: 4.7" dia. x 2.2" depth. Net weight: 5.1 lbs. A 1-3/8"-18 TPI screw-on version is also available as the CDX1-1746.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
