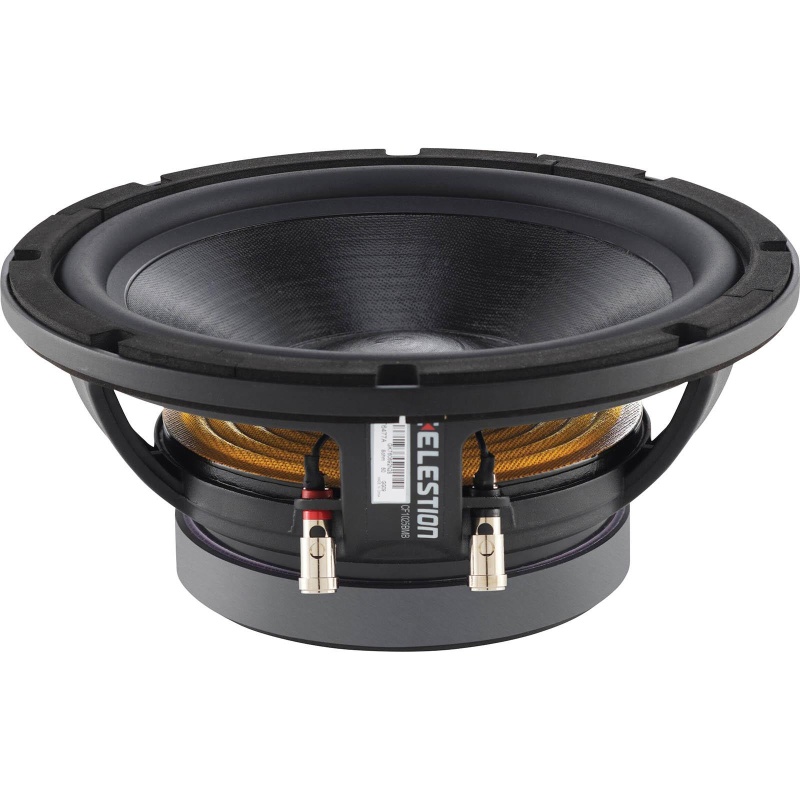

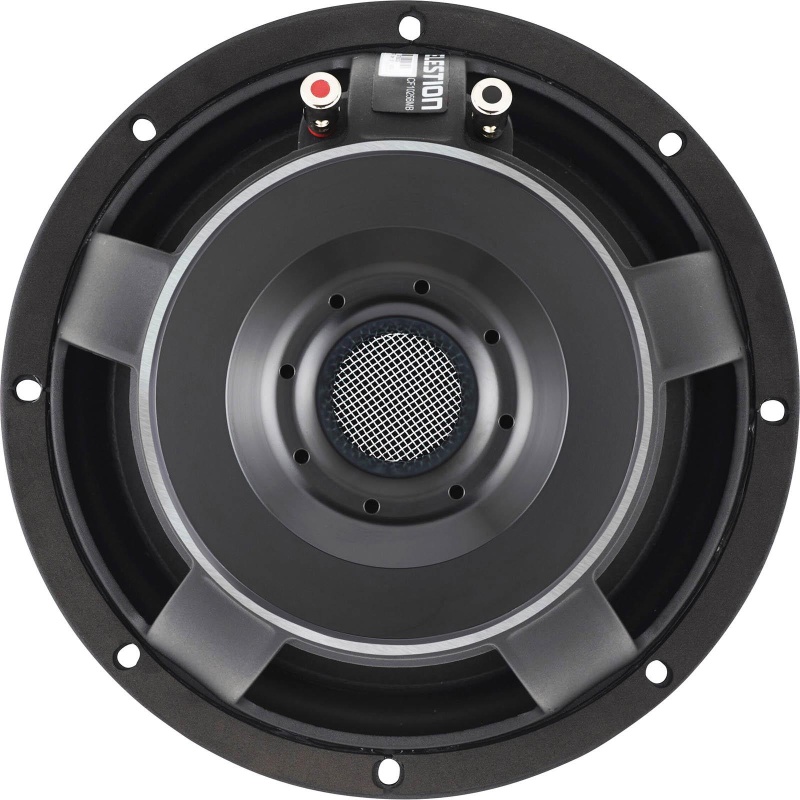

Celestion CF1025BMB 10" Extended Excursion Midbass Driver 8 OhmCelestion, one of the world’s leading suppliers of professional loudspeakers and compression drivers for sound reinforcement applications, is pleased to announce that the CF1025BMB 10-inch (254 mm) ferrite magnet, cast aluminum chassis professional audio loudspeaker has been named a finalist for the 2023 Technical Excellence & Creativity (TEC) Awards for outstanding technical achievement in the Sound Reinforcement Loudspeakers category. Vote for the Celestion CF1025BMB here.
Well suited to both bass and mid-bass applications, the CF1025BMB is especially effective as a bass unit in compact subwoofer designs. It features a 2.5” (64 mm) multi-layer voice coil delivering 300W (AES) power handling and 92.5 dB sensitivity, with a frequency range of 45 Hz to 5000 Hz. Its elastomer surround supports a longer Xmax than a conventional 10” mid-bass speaker, enabling stronger low-frequency reproduction. This makes the CF1025BMB an excellent fit for discreet, compact subwoofer applications, while its smooth performance up to 2 kHz also makes it a strong choice for 2-way systems with impressive low-end capability.
Along with its extended low frequency performance, the driver includes Celestion’s smart airflow vented magnet assembly for improved heat dissipation and reduced power compression, as well as an optimized T-pole magnet assembly designed to enhance Bl symmetry for lower distortion.
Developed at Celestion’s headquarters in Ipswich, England, this loudspeaker was engineered using in-house FEA (Finite Element Analysis) modelling tools, allowing the design team to rapidly achieve measurable performance improvements that contribute to longer product life and exceptionally low distortion.
This high-performance cast aluminum loudspeaker reflects Celestion’s ongoing commitment to delivering advanced, high-quality solutions for sound reinforcement and professional audio applications.
Specifications
Nominal diameter: 254mm / 10in Power rating: 300W Continuous power rating: 600W Rated impedance: 8Ω Sensitivity: 92.5dB Frequency range: 45-5000Hz Chassis type: Cast aluminum Magnet type: FerriteMagnet weight: 1.42kg / 50oz
Voice coil diameter: 64mm / 2.5in Voice coil material: Round copper Former material: Polyimide Cone material: Glass loaded paper (weather-resistant) Surround material: Elastomer Suspension: Single Gap height (Hg): 8mm / 0.31in VC winding height (Hvc): 17.3mm / 0.68in
Frequency Response and Impedance Curves
