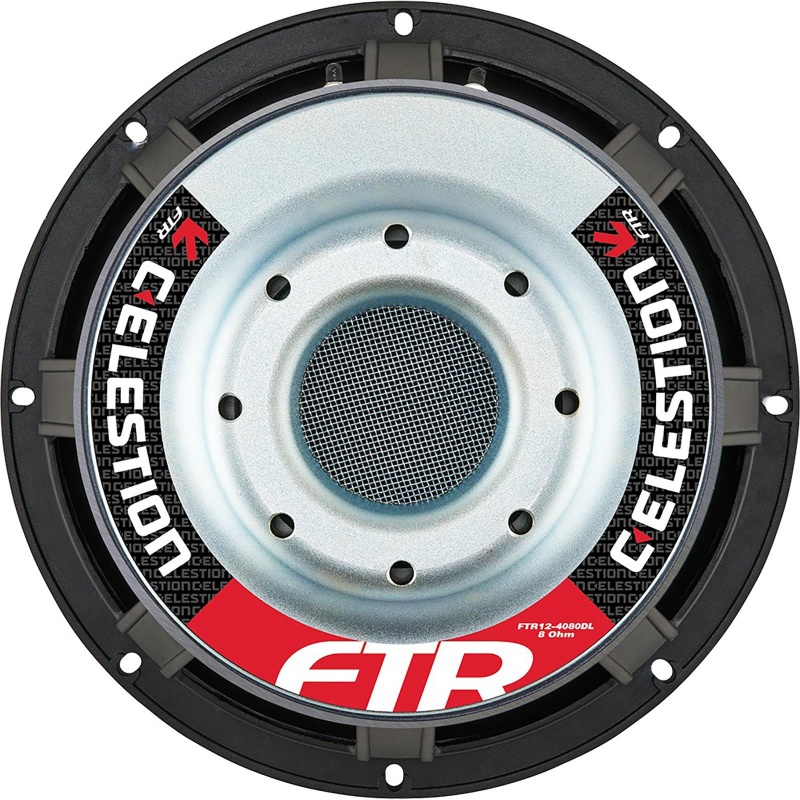

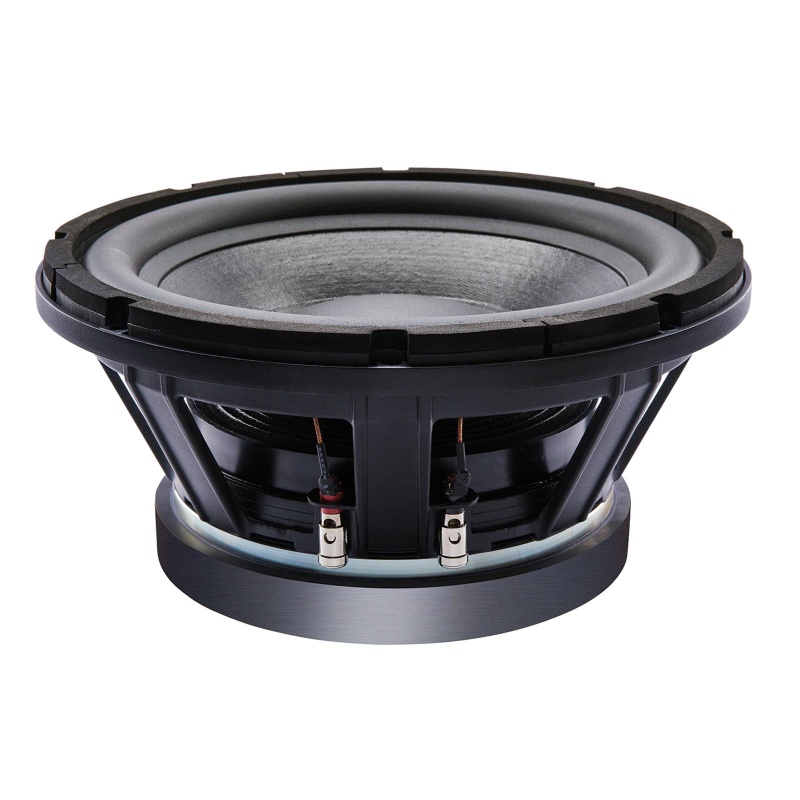

Celestion FTR12-4080DL 12" Subwoofer 8 Ohm
Celestion, one of the world’s leading suppliers of professional loudspeakers and compression drivers for sound reinforcement applications, is proud to unveil the FTR12-4080DL 12" cast aluminum chassis, ferrite magnet low frequency driver, purpose-built for subwoofer use. This dedicated subwoofer is an excellent choice for applications requiring maximum amplifier power to deliver uncompromising low-end performance.
The FTR12-4080DL includes a 4" (100 mm) voice coil rated for 1400W of continuous power handling and delivers 88dB sensitivity with an output range of 20–300Hz. Its half-roll elastomer surround improves modal distribution to reduce distortion and provides greater stability at high excursion levels, achieving an Xmax of 13.6mm for powerful, controlled bass.
An Airflow vented magnet assembly provides dynamic heat dispersion that reduces power compression and supports long-term reliability. The driver’s optimized double suspension contributes to enhanced control and linearity, while the glass-loaded paper cone features a weather-resistant impregnation for added durability in demanding environments.
Designed at Celestion’s headquarters in Ipswich, England, this loudspeaker is engineered using advanced FEA (Finite Element Analysis) modelling techniques, enabling rapid development of performance improvements such as increased efficiency and exceptionally low distortion.
The new FTR12-4080DL cast aluminum loudspeaker showcases Celestion’s ongoing dedication to producing a diverse range of high-performance solutions for professional audio and sound reinforcement applications.
Specifications
Nominal diameter: 305mm / 12in Power rating: 700W Continuous power rating: 1400W Rated impedance: 8Ω Sensitivity: 88dB Frequency range: 20-300Hz Chassis type: Cast aluminum Magnet type: Ferrite Magnet weight: 3.6kg / 126oz
Voice coil diameter: 100mm / 4in Voice coil material: Round copper Former material: Aluminum Cone material: Glass loaded paper (weather-resistant) Surround material: Elastomer Suspension: Double Gap height (Hg): 9.5mm / 0.37in VC winding height (Hvc): 32mm / 1.26in
Frequency Response and Impedance CurvesTopmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis
