Vintage 30 2x12 Guitar Cabinet KitIn 1986, a new generation of hard rock players was beginning to emerge. To meet the needs of these musicians and their increasingly hot-rodded amplifiers, Celestion set out to create a modern guitar speaker that could handle far greater power and overdrive. To do that, Celestion paired their ‘H’ magnet, the closest in performance to Alnico, with a new cone and voice coil built from contemporary materials.
Celestion's most revealing speaker, the delivers richly detailed and complex overtones, a warm low end, a famously rich vocal midrange, and a beautifully defined top end. Whether used alone to expose the nuances of hand-wired boutique amps or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 has made its mark on thousands of recordings by a wide range of notable players, including Slash, Steve Stevens, and Peter Frampton.

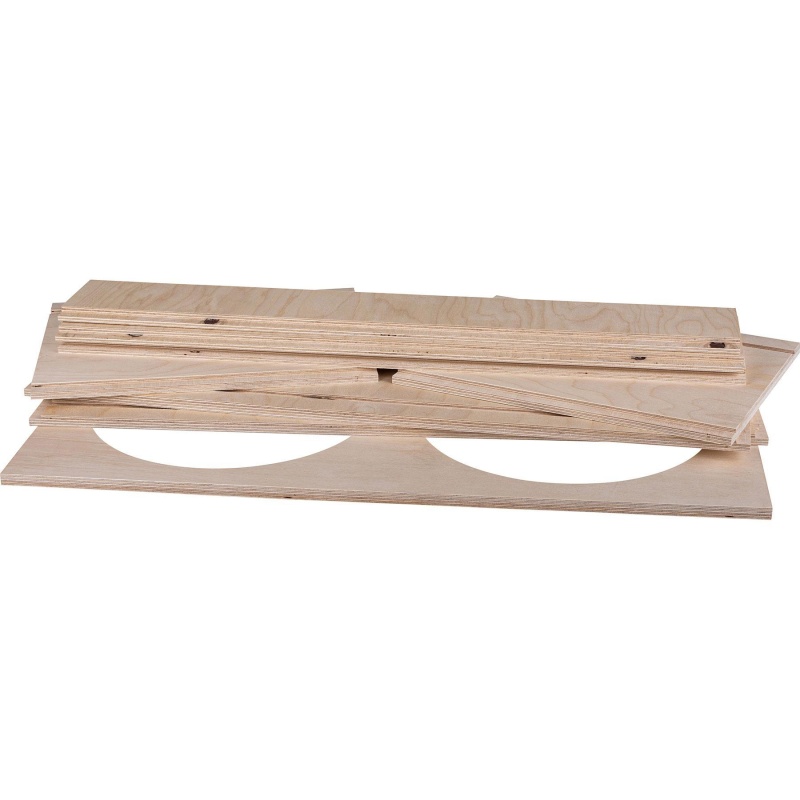

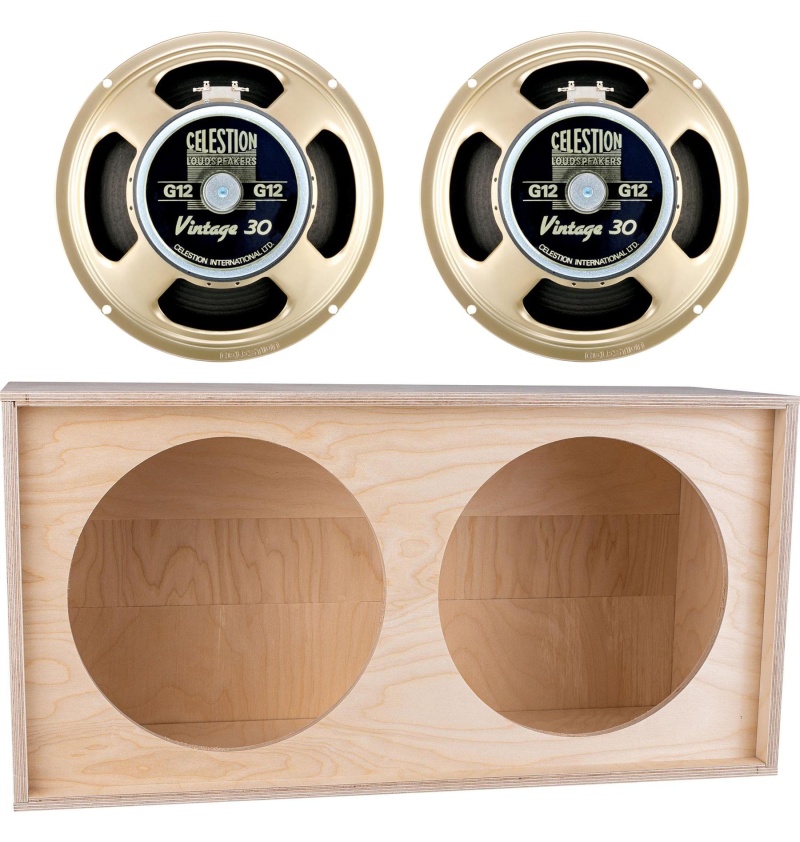

Build your own 2x12 guitar cabinet with a matched pair of Celestion Vintage 30s and a CNC-cut knock-down enclosure, giving you the satisfaction of a hands-on project without starting from scratch. The pre-cut cabinet panels take the guesswork out of the woodworking, while the separate speakers let you create a finished cabinet with the tone, projection, and stage-ready character you want from a classic 2x12. Once assembled, you get the reward of playing through gear you built yourself, with the flexibility to finish the cabinet to match your amp, style, and rig.

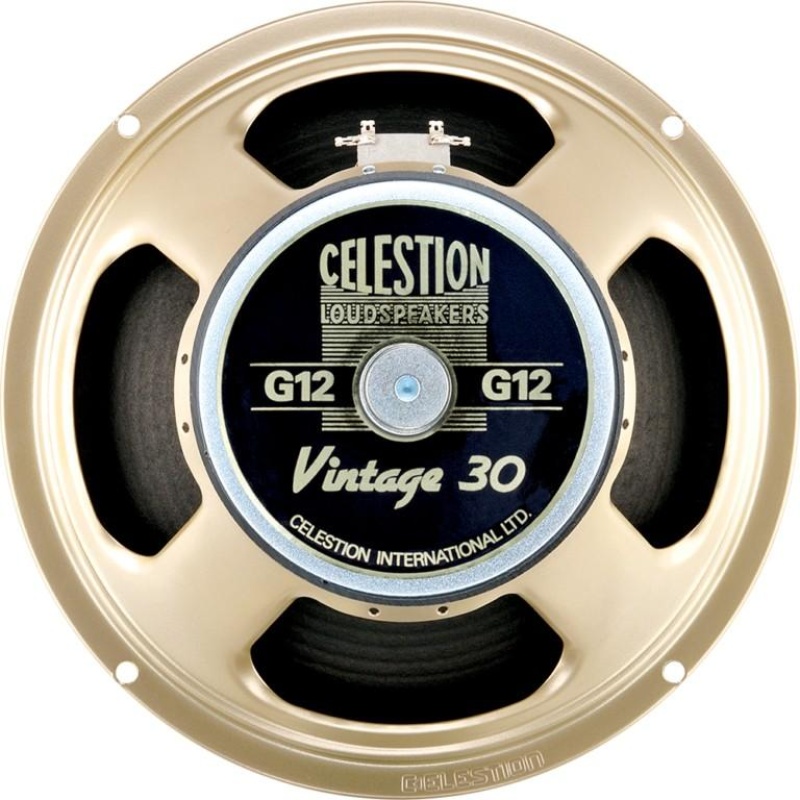

Vintage 30 SpecsNominal diameter: 305mm / 12inPower rating: 60WRated impedance: 16ΩSensitivity: 100dBChassis type: Pressed steelMagnet type: CeramicMagnet weight: 1.42kg / 50ozVoice coil diameter: 1.75in / 44mmVoice coil material: Round copperFrequency range: 70-5000HzResonance frequency, Fs: 75HzDC resistance, Re: 12.9Ω
Cut-out diameter: 283mm / 11.1in Diameter: 309mm / 12.2inMagnet structure diameter: 156mm / 6.1inMounting hole dimensions: 7.9mm / 0.31in ØMounting hole PCD: 297mm / 11.7inNumber of mounting holes: 4Chassis depth (inc gasket): 97mm / 3.79inMagnet depth: 38mm / 1.51inOverall depth: 135mm / 5.3inUnit weight: 4.7kg / 10.4lb
Cabinet Specifications

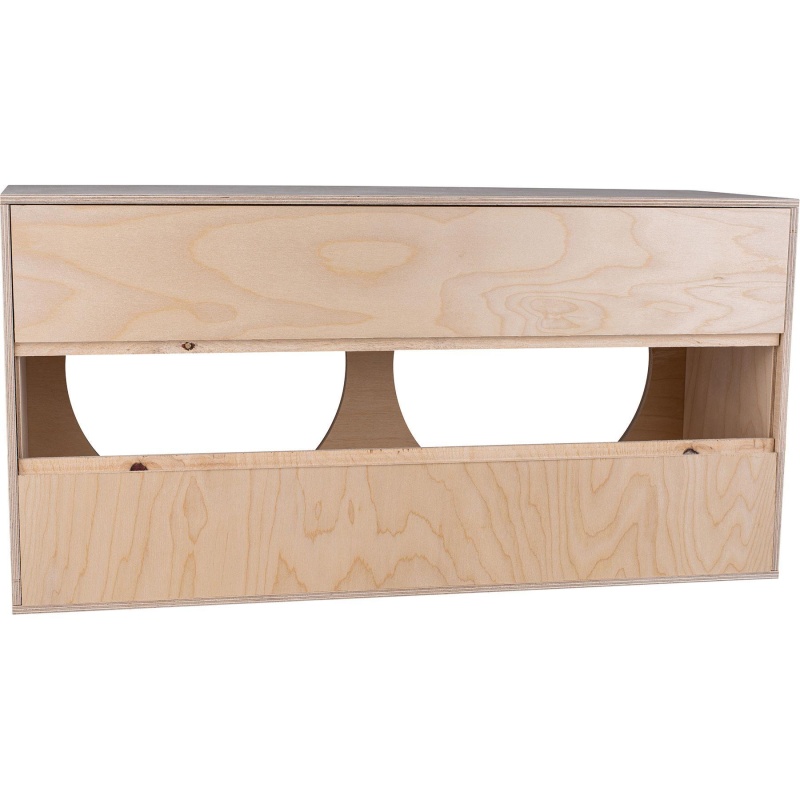

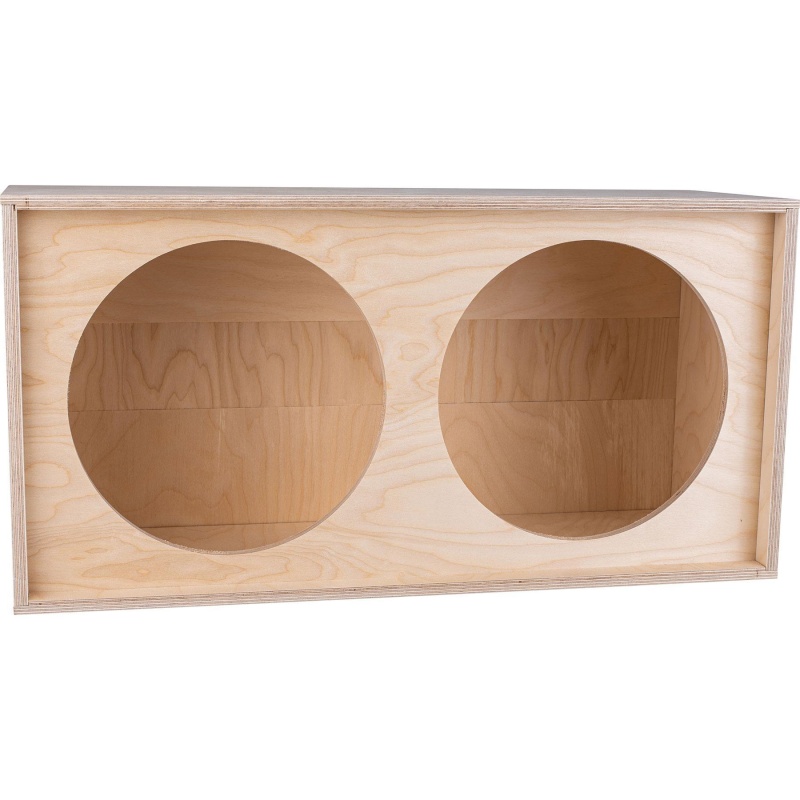

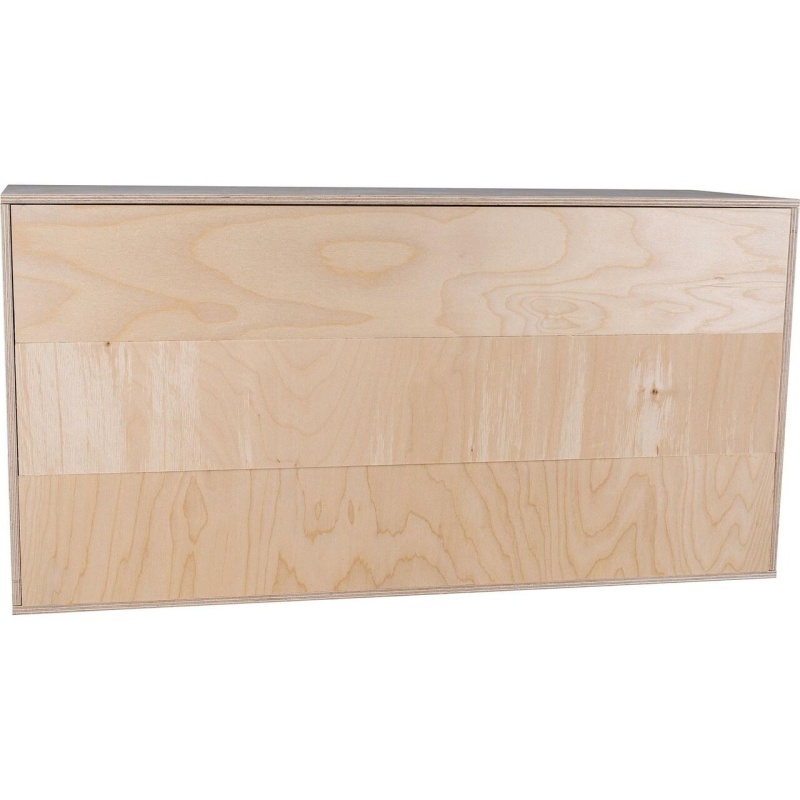

Internal volume: 1.64 cubic feetDriver cutout: 11.1"Baffle recess: 1"Dimensions: 14.125" H x 28" W x 10" DPlywood: 1/2" thick, 9-ply Baltic birchSealed or Open BackUnfinished
See what others have built and get inspired!Parts to Finish your Cabinet
