Celestion Vintage 30 and Redback 2x12 Guitar Cabinet KitThe G12M Greenback has changed over the years, yet it still holds onto the signature tone that made it so desirable. Angus Young has relied on the Greenback since the early days of AC/DC. This version is voiced with a broader midrange attack and a more controlled top end, giving chords a bold, punchy character and lead tones a cutting edge without unwanted fizz. Its tight, controlled low end makes it a strong choice on its own in lower-powered amps or in multi-speaker configurations for high-power rock heads. It is an excellent guitar speaker for adding drive and clarity to modern high-gain amps.

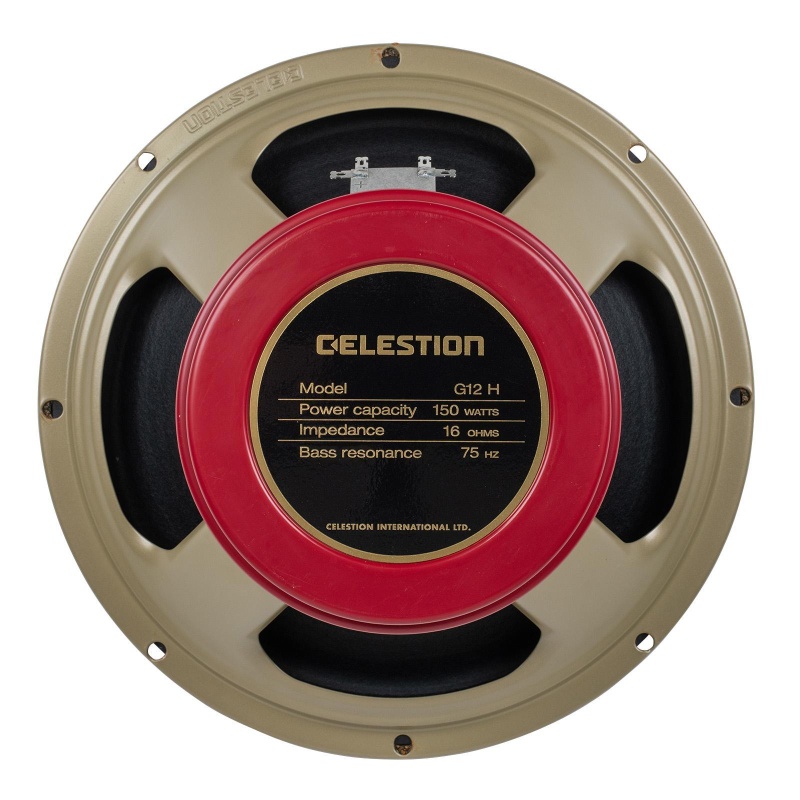

The G12H-150 Redback was designed for guitarists who demand massive power handling without sacrificing tone. With a huge 150W rating, a heavy-duty 2" voice coil, and the largest G12 magnet, it delivers classic Celestion character while standing up to the full force of a 100-watt head on its own. This speaker shows you can have both power and tone in one package. Engineered with tight, controlled lows, a detailed midrange, and smooth treble, the Redback offers balance, responsiveness, and easy playability with serious muscle. In lower power combos, it produces rich, clean tones and works beautifully with pedals. If you want to downsize your cabinet, a single Redback paired with a 100W head still delivers massive, thunderous tone.

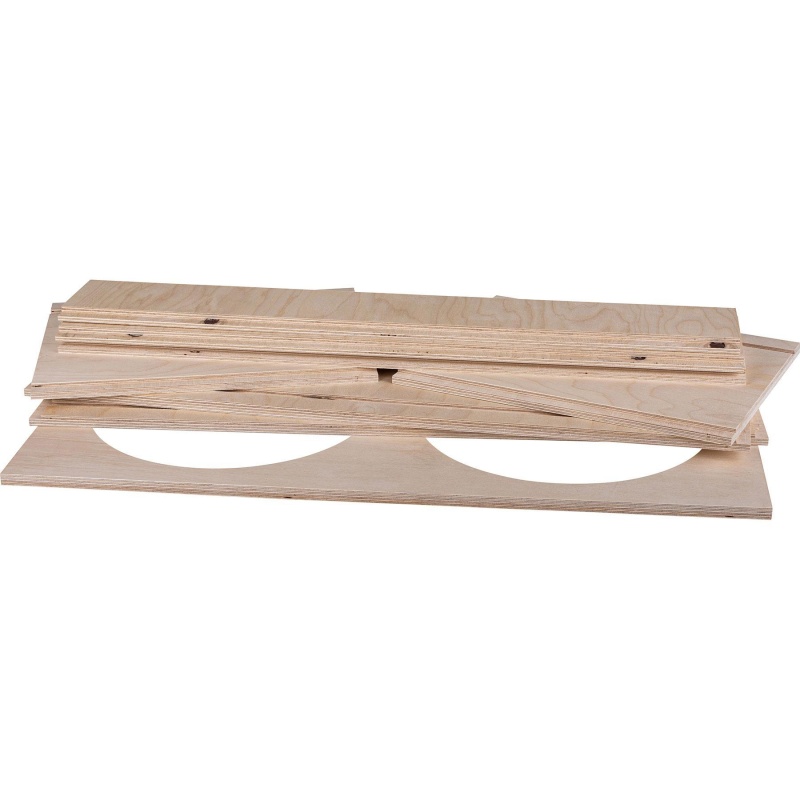

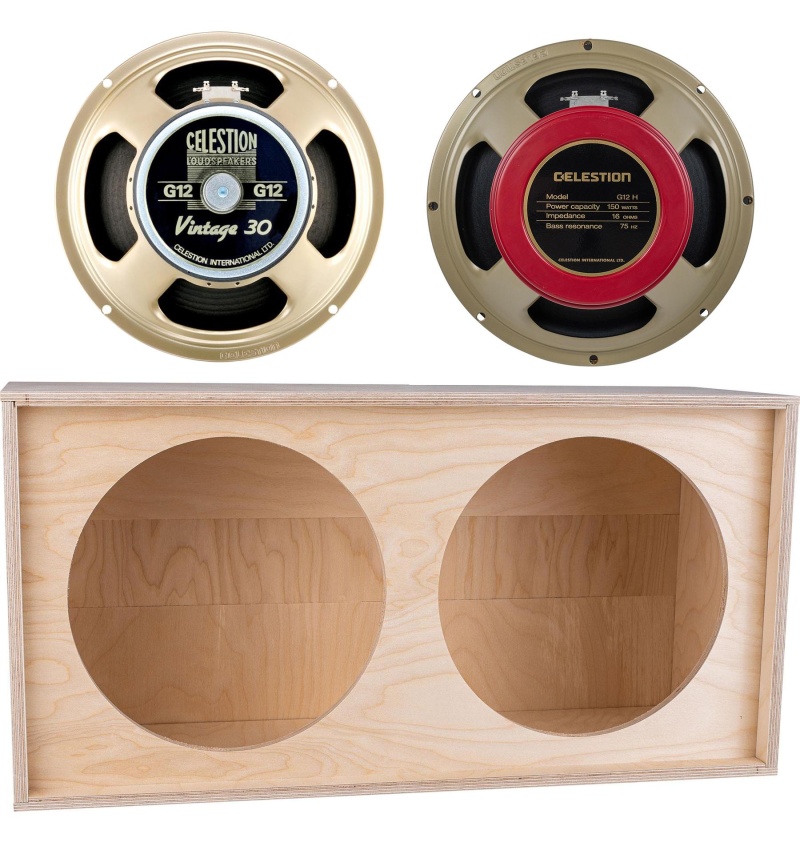

Build your own 2x12 guitar cabinet with a Celestion Vintage 30, G12H-150 Redback, and a CNC-cut knock-down enclosure, giving you the satisfaction of a hands-on project without starting from scratch. The pre-cut cabinet panels take the guesswork out of the woodworking, while the separate speakers let you create a finished cabinet with the tone, projection, and stage-ready character you want from a classic 2x12. Once assembled, you get the reward of playing through gear you built yourself, with the flexibility to finish the cabinet to match your amp, style, and rig.

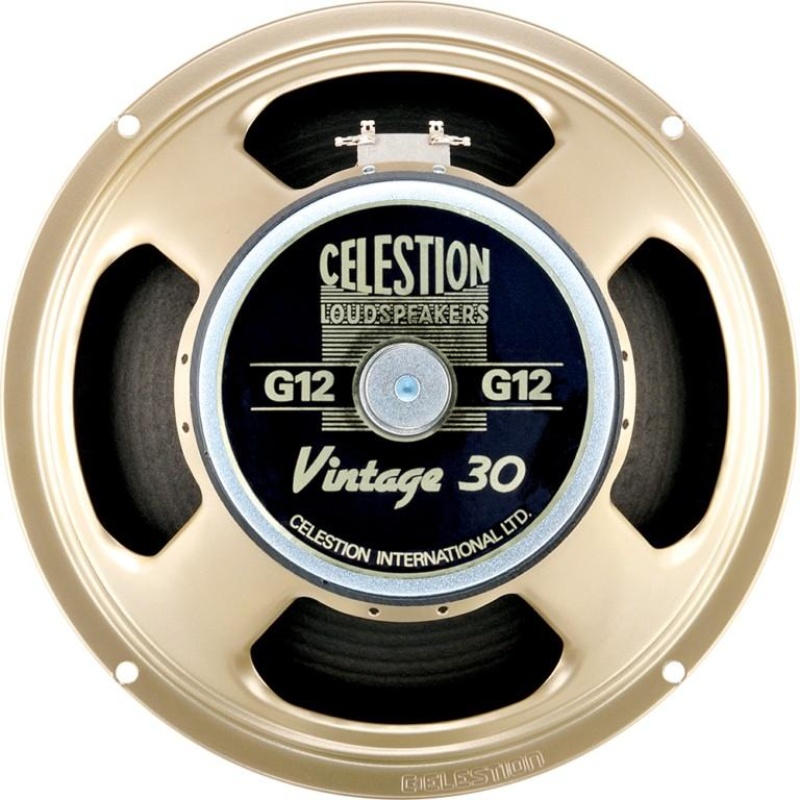

Vintage 30 Specs
Nominal diameter: 305mm / 12inPower rating: 60WRated impedance: 16ΩSensitivity: 100dBChassis type: Pressed steelMagnet type: CeramicMagnet weight: 1.42kg / 50ozVoice coil diameter: 1.75in / 44mmVoice coil material: Round copperFrequency range: 70-5000HzResonance frequency, Fs: 75HzDC resistance, Re: 12.9ΩCut-out diameter: 283mm / 11.1inDiameter: 309mm / 12.2inMagnet structure diameter: 156mm / 6.1inMounting hole dimensions: 7.9mm / 0.31in Ø Mounting hole PCD: 297mm / 11.7inNumber of mounting holes: 4Chassis depth (inc gasket): 97mm / 3.79inMagnet depth: 38mm / 1.51inOverall depth: 135mm / 5.3inUnit weight: 4.7kg / 10.4lb
Cabinet Specs

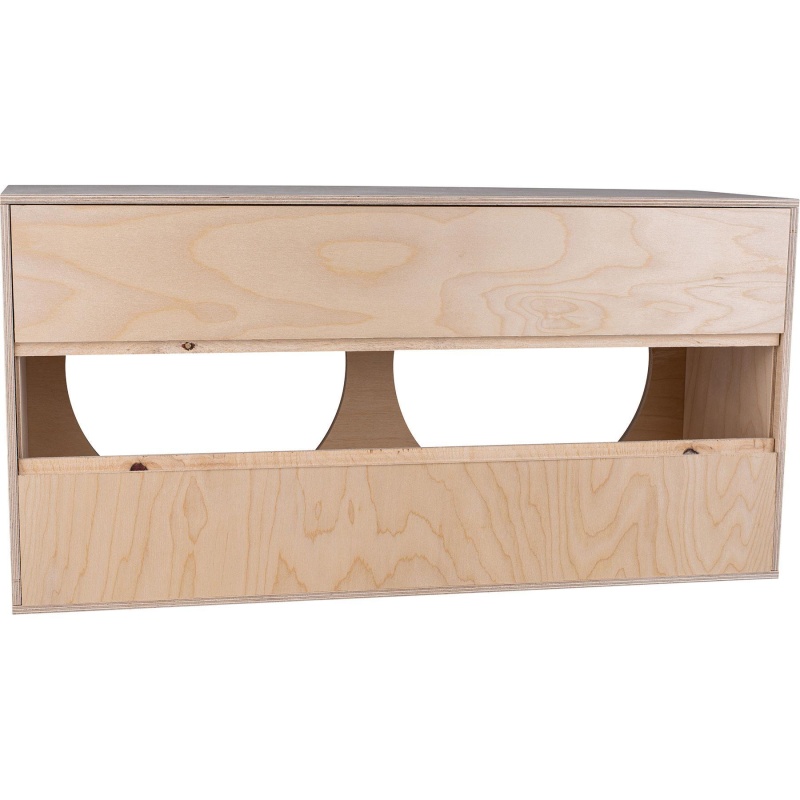

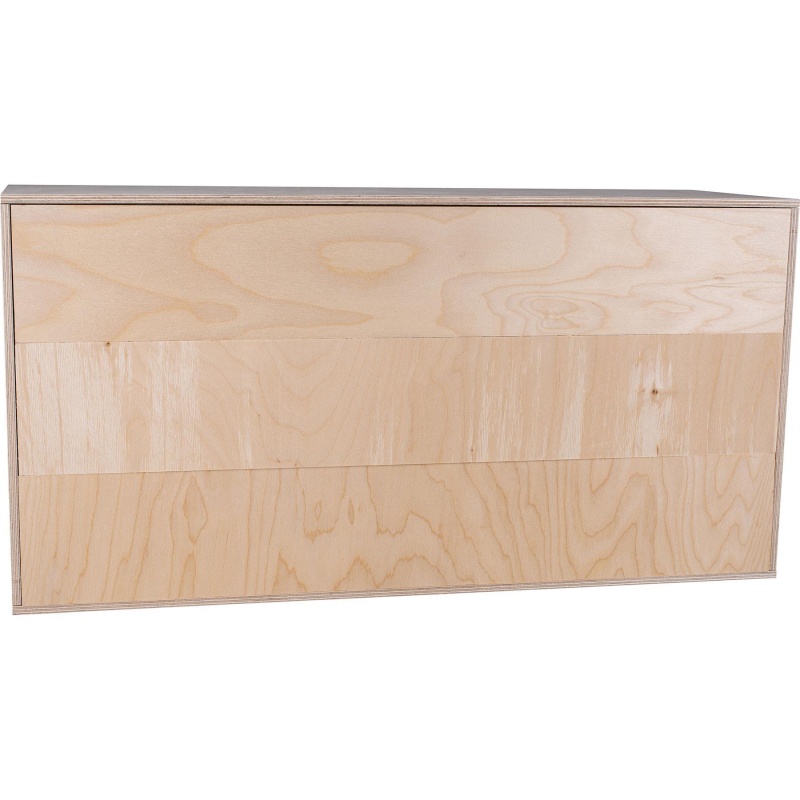

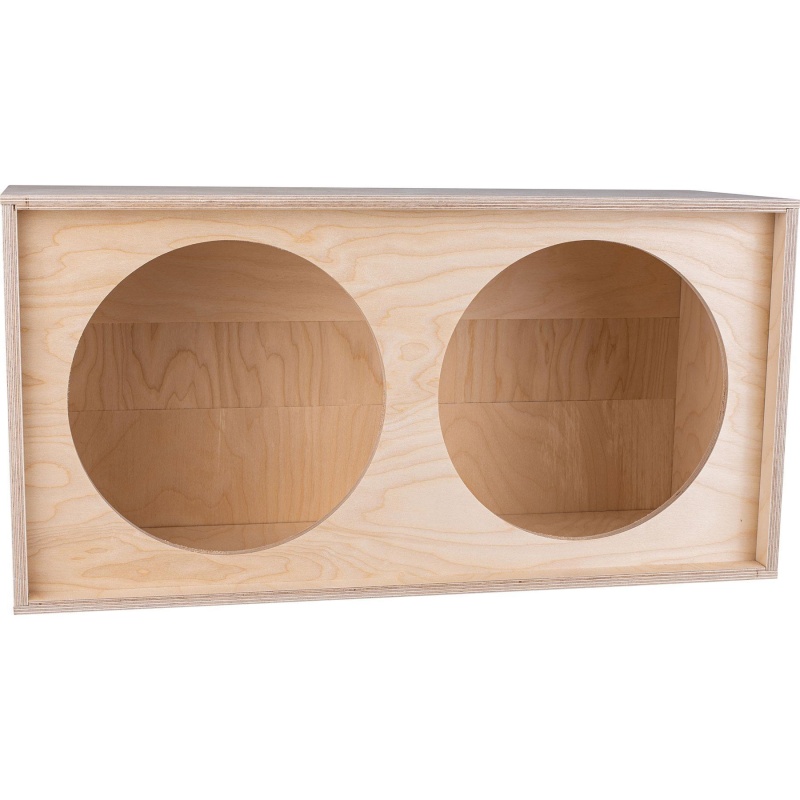

Internal volume: 1.64 cubic feet Driver cutout: 11.1" Baffle recess: 1"Dimensions: 14.125" H x 28" W x 10" D Plywood: 1/2" thick, 9-ply Baltic birchSealed or Open BackUnfinished
Redback Specs
Nominal diameter: 305mm / 12in Power rating: 150W Rated impedance: 16ΩSensitivity: 100dBChassis type: Pressed steel Magnet type: Ceramic Magnet weight: 1.42kg / 50oz Voice coil diameter: 2in / 50mmVoice coil material: Round copper Frequency range: 70-5000Hz Resonance frequency, Fs: 75Hz DC resistance, Re: 12.54Ω Cut-out diameter: 283mm / 11.1in Diameter: 309mm / 12.2in Magnet structure diameter: 168mm / 6.6in Mounting hole dimensions: 7.9mm / 0.31in Ø Mounting hole PCD: 297mm / 11.7in Number of mounting holes: 8 Chassis depth (inc gasket): 95mm / 3.71in Magnet depth: 43mm / 1.69in Overall depth: 138mm / 5.4inUnit weight: 4.7kg / 10.4lb
See what others have built and get inspired!Parts to Finish your Cabinet
