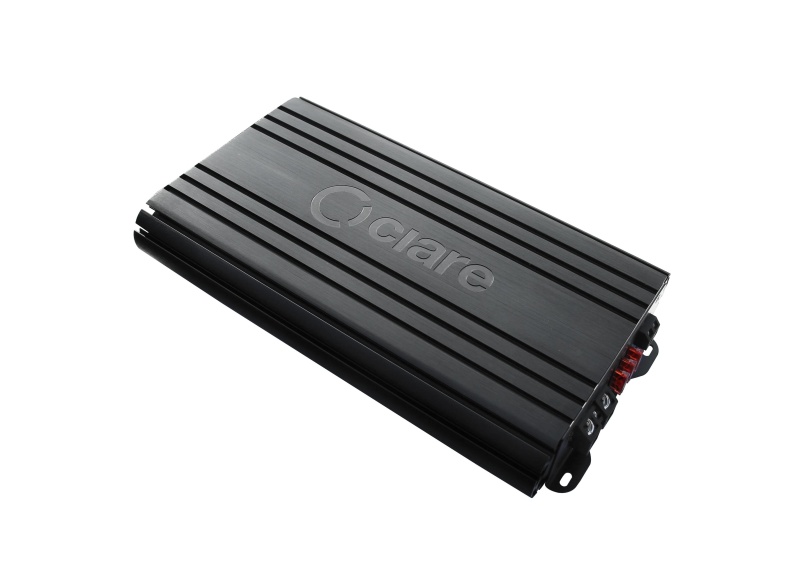

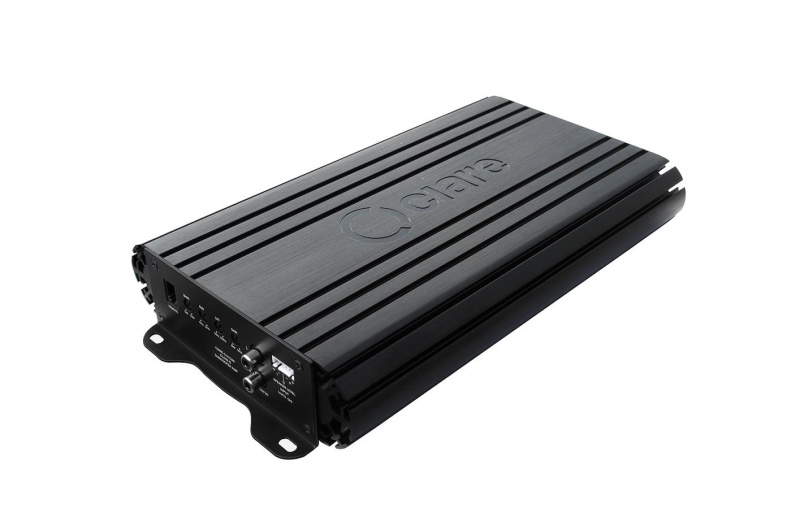

C1A1200 Class D Monoblock AmplifierCiare’s C1A1200 amplifier was built from the ground up for high-performance mobile audio and is an excellent fit for SQ-focused systems, compact SPL builds, or simply improving a factory car audio system with the supplied high-level input harness.
The black anodized chassis uses a Ciare “C” heatsink design to pull heat away from the MOSFETs for extended run times without requiring an external fan, helping avoid thermal runaway, premature shutdown, and failure.

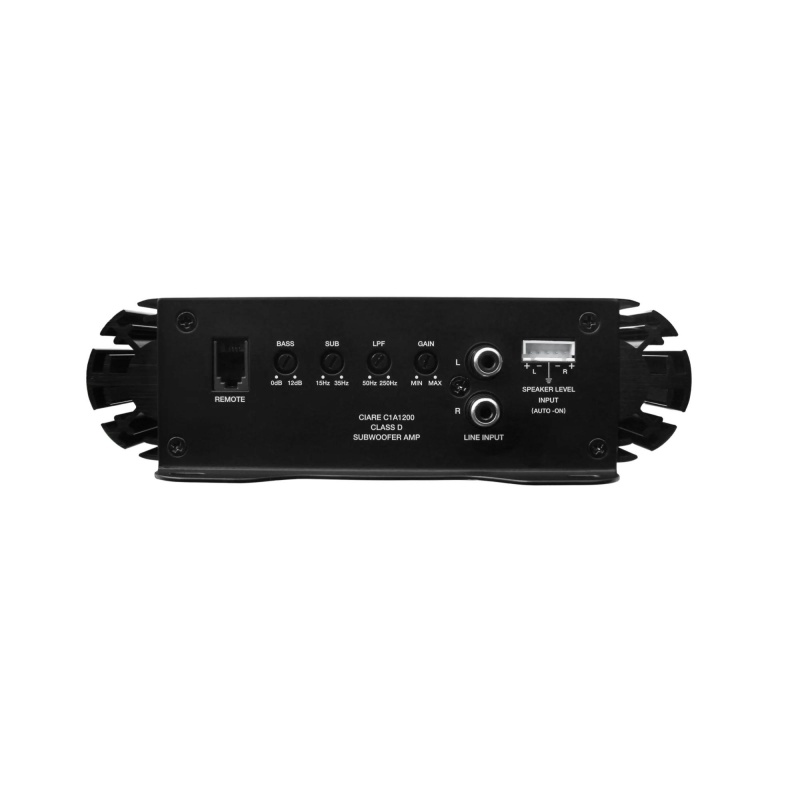

Standard variable controls include input gain up to 8V through line-level RCA inputs, a 15 to 35 Hz subsonic 12 dB/octave filter, a 50 to 250 Hz 12 dB/octave low-pass filter, and 0 to 12 dB of bass boost at 45 Hz.
A soft turn-on circuit helps eliminate the abrupt thumps often associated with amplifier startup caused by current inrush, and it also supports auto-on and auto-off operation.

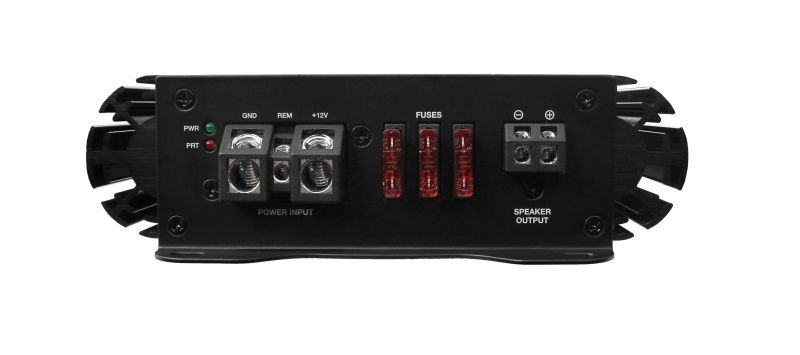

Also included are four mounting screws, three 40A fuses, and two hex wrenches for securing the power, ground, remote, and speaker output connections.
Features
Class D TopologyMOSFET Pulse Width Modulated Power SupplyStabled down to a 1Ω LoadSoft turn-On CircuitRemote Turn-On/Turn-Off circuitAuto Turn-On (when using high level inputs4 AWG power and ground input terminals12 AWG speaker output terminals
Variable input gain controlVariable Subsonic filterVariable low pass filterVariable Bass BoostRCA low level and high level inputLED power and protection indicatorsBlack anodized heatsinkRemote Subwoofer level control
Specifications
Max Power @ 4Ω: 1 x 1000WMax Power @ 2Ω: 1 x 1600W Max Power @ 1Ω: 1 x 2400W RMS Power @ 4Ω: 1 x 500WRMS Power @ 2Ω: 1 x 800W RMS Power @ 1Ω: 1 x 1200W THD @ Rated Power: 0.01%Input Sensitivity: 0.2-8V
S/N Ratio: >102dBFrequency Response (±3dB): 15 Hz - 250 HzSubsonic Filter: 15 Hz - 35 HzBass Boost: 0 dB - 12 dB @ 45 HzFuse Rating: 40A x 3Variable Low-Pass: 50 Hz - 250 HzDimensions (L x W x H): 330 x 180 x 53mm (13.0" x 7.1" x 2.1")Weight: 7.0 lbs. / 3.18 kg
