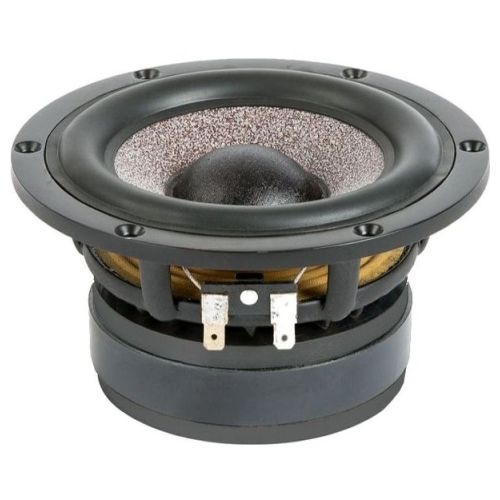

The Ciare HWG130 is a 5-inch, 8-ohm woofer for compact speaker designs, including home audio and car stereo applications. Its nominal diameter is 130 mm (5 in), with 130 W nominal power handling and 260 W continuous power handling.
It has 88 dB sensitivity, a 38 mm (1.5 in) voice coil, 17 mm (0.67 in) winding depth, an 8 mm (0.31 in) magnetic gap depth and a frequency range of 45 Hz - 7000 Hz. The former material is Kapton. Parameters: Fs 40 Hz; Qes 0.3; Qts 0.28; Sd 87 cm² (13.49 sq²); Xmax 6.5 mm (0.26 in); Bl 7.8 Tm; d 105 mm (4.13 in); Re 5.4 Ω; Qms 4.8; Vas 12.5 dm³ (0.44 ft³); η0 0.3 %; Mms 13.1 g; Le 0.7 mH; EBP 133 Hz.
Design details include a rubber surround, cotton fabric suspension, exponential cone shape and doped cellulose fiber cone material. The recommended enclosure is 7 dm³ (0.247 ft³), with recommended vented box loading.
Mounting dimensions and details: 146 mm (5.75 in) overall diameter; 117 mm (4.61 in) baffle cutout diameter; 6 mm (0.24 in) flange and gasket thickness; 6 pcs bolt quantity; 135.5 mm (5.33 in) bolt circle diameter; 77 mm (3.03 in) depth; 1.7 kg (3.74 lbs.) net weight; aluminum basket material; 4.5 mm (0.18 in) bolt diameter.
