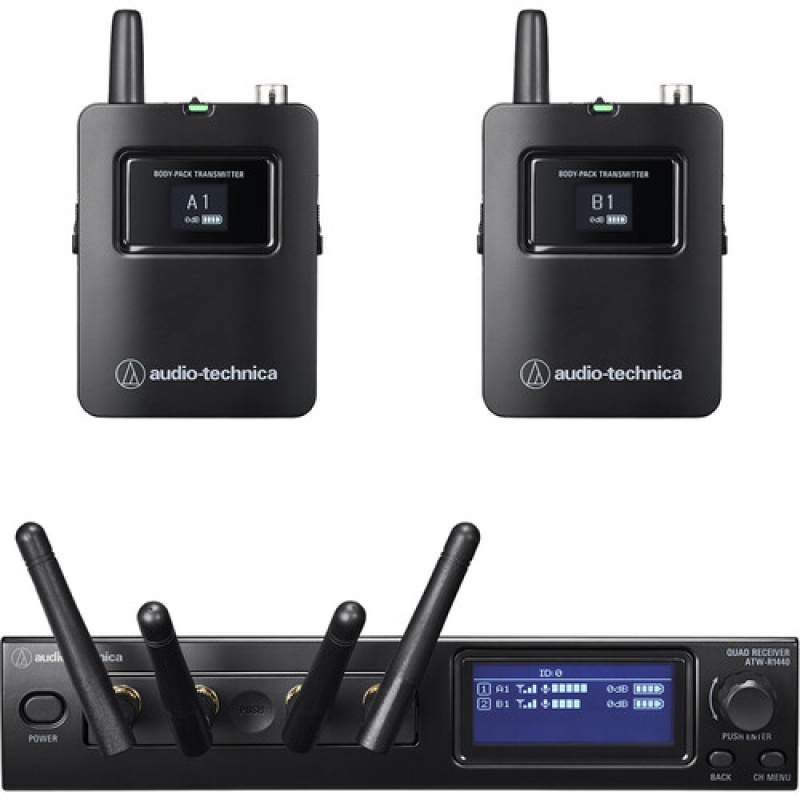

System 20 Digital Wireless System includes ATW-R1440 4-channel receiver and two ATW-T1401 body-pack transmitters.
Select microphones and/or cables with a cW-style locking 4-pin connector to complete the system.
Features Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance Plug-and-play operation in the 2.4 GHz range – completely free from TV interference User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility Up to five chassis can be linked and used simultaneously Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen AES128 encryption for security Compatible with Syslog protocol Ability to configure, monitor, and save device settings as projects in Wireless Manager Transmitters and receivers include OLED screens for optimal readout of key settings and alerts Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries Supports mixed output for situations with limited input channels Specifications Overall System Operating Frequencies 2,402 to 2,480 MHz Dynamic Range 120 dB (A-weighted), typical Total Harmonic Distortion Maximum Simultaneous Use (recommended) Standard: 10 channels HD mode: 20 channels It depends on the region and environment. System Frequency Response 20 to 20,000 Hz Varies depending on the microphone to be installed. Delay Standard: 2.8ms HD mode: 6.7ms Audio Sampling Rate Standard: 24-bit/48 kHz HD mode: 24-bit/48 kHz Encryption Method AES128 Receiver & Transmitter Specifications ATW-R1440 ATW-RC14 External Receiver Unit Port RJ45 NETWORK Port RJ45: Fast Ethernet LINK IN/OUT Port RJ12 Output Level LINE max: +22 dBu (+20 dBV) LINE Unity: -20 Bu (-22 dBV) MIC max: -12 dBu (-10 dBV) MIC Unity: -50 dBu (-52 dBV) Power Consumption 3.7W Power Supply 12 V DC, 0.5 A (AC adapter) Operating Temperature Range 0ºC to +40ºC (32°F to 104°F) Dimensions 209.8 mm (8.3″) × 165.6 mm (6.5″) × 42.5 mm (1.7″) (W × D × H) Weight 740 g (26 oz) Included Accessories AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12″]), leg × 4 ATW-RU14

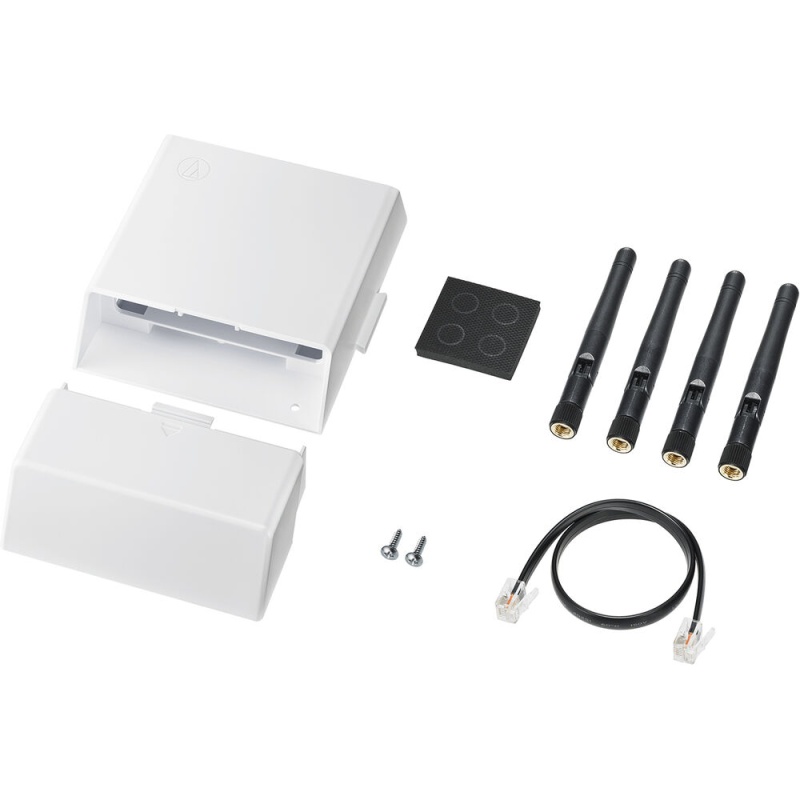

Modulation Mode GFSK RF Output Power 10mW EIRP RF sensitivity -90 dBm, typical Antenna 1/2 wave dipole antenna, true diversity External Connection Port RJ45 Power Supply 12 V DC (RC14) Operating Temperature Range 0ºC to +40ºC (32°F to 104°F) Dimensions 86.0 mm (3.4″) × 70.2 mm (2.8″) × 18.7 mm (0.74″) (W × D × H) Weight 77 g (2.7 oz) Included Accessory Unit holder, holder cover, wood screws x 2, antenna x 4 ATW-T1401 BODY-PACK TRANSMITTER
Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Input Connection Four pin locking connector
Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +10 V
Battery 3 V DC (two 1.5 V AA) Battery Life AA alkaline batteries: Approx. 15 hours
AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes AA lithium batteries: Approx. 29 hours This varies depending on usage conditions.
Operating Temperature 5ºC to +40ºC Dimensions 63.7 mm (2.5″) × 22.7 mm (0.89″) × 107.4 mm (4.2″) (W × D × H) Weight 80g (2.8 oz) ,without batteries ATW-T1402 HANDHELD TRANSMITTER
Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Microphone Type Dynamic Microphone Polar Pattern Hypercardioid Battery 3 V DC (two 1.5 V AA) Battery Life Approx. 18 hours (alkaline)
Approx. 16 hours 30 minutes (Ni-MH) Approx. 35 hours (lithium) This varies depending on usage conditions. Operating Temperature Range 5ºC to +40ºC (41°F to 104°F) Dimensions 265.0 mm (10″) × 53.7 mm (2.1″) Weight 300 g (11 oz), without batteries Included Accessories Mic holder AT8456a, converting thread adapter (3/8″ – 5/8″) ATW-T1406 BOUNDARY MICROPHONE TRANSMITTER
Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Maximum Input Sound Pressure Level 139 dB SPL Microphone Type Condenser Microphone Polar Pattern Cardioid Built-in Battery 3.7V lithium-ion battery (5.5Wh, 1460mAh) Battery Life Approx. 12 hours
This varies depending on usage conditions. Charging Time Approx. 3 hours and 10 minutes This varies depending on usage conditions. USB Charging Port USB Type-C (USB 2.0) Operating Temperature Range 5ºC to +40ºC (41°F to 104°F) Dimensions 90.5 mm (3.6″) × 129.4 mm (5.1″) × 31.9 mm (1.3″) (W × D × H) Weight (with battery) 510 g (18 oz), including battery Included Accessories USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9′]) ATW-T1407 DESK STAND TRANSMITTER
Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Microphone Gooseneck microphone supported Phantom Power Supply DC24V Built-in Battery 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) Battery Life When using a gooseneck microphone with no LED: Approx. 12 hours
When using a gooseneck microphone with an LED: Approx. 8 hours This varies depending on usage conditions.
Charging Time Approx. 3 hours and 10 minutes
This varies depending on usage conditions. USB Charging port USB Type-C (USB 2.0) Operating Temperature Range 5ºC to +40ºC (41°F to 104°F) Dimensions 90.5 mm (3.6″) × 129.4 mm (5.1″) × 47.6 mm (1.9″) (W × D × H) Weight 490 g (17 oz), including battery Included Accessories USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9′]) Overall System Operating Frequencies 2,402 to 2,480 MHz Dynamic Range 120 dB (A-weighted), typical Total Harmonic Distortion Maximum Simultaneous Use (recommended) Standard: 10 channels HD mode: 20 channels It depends on the region and environment. System Frequency Response 20 to 20,000 Hz Varies depending on the microphone to be installed. Delay Standard: 2.8ms HD mode: 6.7ms Audio Sampling Rate Standard: 24-bit/48 kHz HD mode: 24-bit/48 kHz Encryption Method AES128 Receiver & Transmitter Specifications ATW-R1440 ATW-RC14 External Receiver Unit Port RJ45 NETWORK Port RJ45: Fast Ethernet LINK IN/OUT Port RJ12 Output Level LINE max: +22 dBu (+20 dBV) LINE Unity: -20 Bu (-22 dBV) MIC max: -12 dBu (-10 dBV) MIC Unity: -50 dBu (-52 dBV) Power Consumption 3.7W Power Supply 12 V DC, 0.5 A (AC adapter) Operating Temperature Range 0ºC to +40ºC (32°F to 104°F) Dimensions 209.8 mm (8.3″) × 165.6 mm (6.5″) × 42.5 mm (1.7″) (W × D × H) Weight 740 g (26 oz) Included Accessories AC adapter, AC adapter blade, short rack-mount adapter, long rackmount adapter, fixing screw × 5, link cable (30 cm [12″]), leg × 4
ATW-RU14 Modulation Mode GFSK RF Output Power 10mW EIRP RF sensitivity -90 dBm, typical Antenna 1/2 wave dipole antenna, true diversity External Connection Port RJ45 Power Supply 12 V DC (RC14) Operating Temperature Range 0ºC to +40ºC (32°F to 104°F) Dimensions 86.0 mm (3.4″) × 70.2 mm (2.8″) × 18.7 mm (0.74″) (W × D × H) Weight 77 g (2.7 oz) Included Accessory Unit holder, holder cover, wood screws x 2, antenna x 4
ATW-T1401 BODY-PACK TRANSMITTER Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Input Connection Four pin locking connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +10 V
Battery 3 V DC (two 1.5 V AA) Battery Life AA alkaline batteries: Approx. 15 hours
AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes AA lithium batteries: Approx. 29 hours This varies depending on usage conditions.
Operating Temperature 5ºC to +40ºC Dimensions 63.7 mm (2.5″) × 22.7 mm (0.89″) × 107.4 mm (4.2″) (W × D × H) Weight 80g (2.8 oz) ,without batteries
ATW-T1402 HANDHELD TRANSMITTER Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Microphone Type Dynamic Microphone Polar Pattern Hypercardioid Battery 3 V DC (two 1.5 V AA) Battery Life Approx. 18 hours (alkaline) Approx. 16 hours 30 minutes (Ni-MH) Approx. 35 hours (lithium) This varies depending on usage conditions. Operating Temperature Range 5ºC to +40ºC (41°F to 104°F) Dimensions 265.0 mm (10″) × 53.7 mm (2.1″) Weight 300 g (11 oz), without batteries Included Accessories Mic holder AT8456a, converting thread adapter (3/8″ – 5/8″)
ATW-T1406 BOUNDARY MICROPHONE TRANSMITTER Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Maximum Input Sound Pressure Level 139 dB SPL Microphone Type Condenser Microphone Polar Pattern Cardioid Built-in Battery 3.7V lithium-ion battery (5.5Wh, 1460mAh) Battery Life Approx. 12 hours This varies depending on usage conditions. Charging Time Approx. 3 hours and 10 minutes This varies depending on usage conditions. USB Charging Port USB Type-C (USB 2.0) Operating Temperature Range 5ºC to +40ºC (41°F to 104°F) Dimensions 90.5 mm (3.6″) × 129.4 mm (5.1″) × 31.9 mm (1.3″) (W × D × H) Weight (with battery) 510 g (18 oz), including battery Included Accessories USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9′])
ATW-T1407 DESK STAND TRANSMITTER Modulation Mode GFSK RF Output Power 10mW EIRP RF Sensitivity -90 dBm, typical Antenna True diversity Microphone Gooseneck microphone supported Phantom Power Supply DC24V Built-in Battery 3.7 V lithium-ion battery (5.5 Wh, 1,460 mAh) Battery Life When using a gooseneck microphone with no LED: Approx. 12 hours When using a gooseneck microphone with an LED: Approx. 8 hours This varies depending on usage conditions.
Charging Time Approx. 3 hours and 10 minutes
This varies depending on usage conditions. USB Charging port USB Type-C (USB 2.0) Operating Temperature Range 5ºC to +40ºC (41°F to 104°F) Dimensions 90.5 mm (3.6″) × 129.4 mm (5.1″) × 47.6 mm (1.9″) (W × D × H) Weight 490 g (17 oz), including battery Included Accessories USB power supply adapter, USB power supply adapter blade, USB cable (1.5 m [4.9′])
