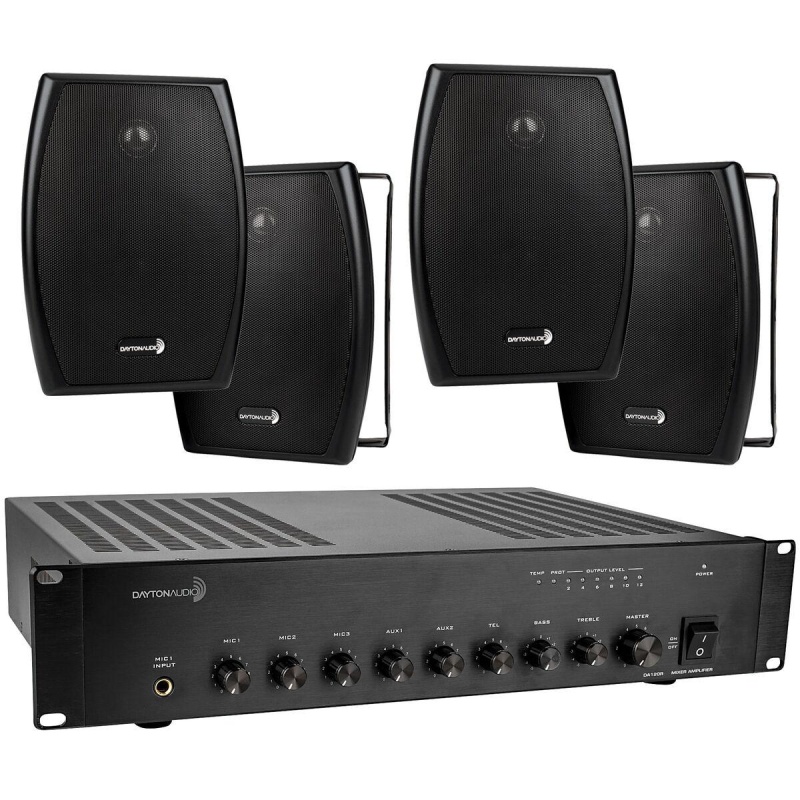

Eliminate Guess Work Parts Express has taken the guesswork and confusion out of commercial paging and background music installations with this incredibly affordable contractor grade all-in-one bundle. By packaging the Dayton Audio DA120R commercial amplifier and four IO655 6-1/2" indoor/outdoor speaker, Parts Express gives you an extremely versatile, yet powerful audio system for both commercial and residential installations.

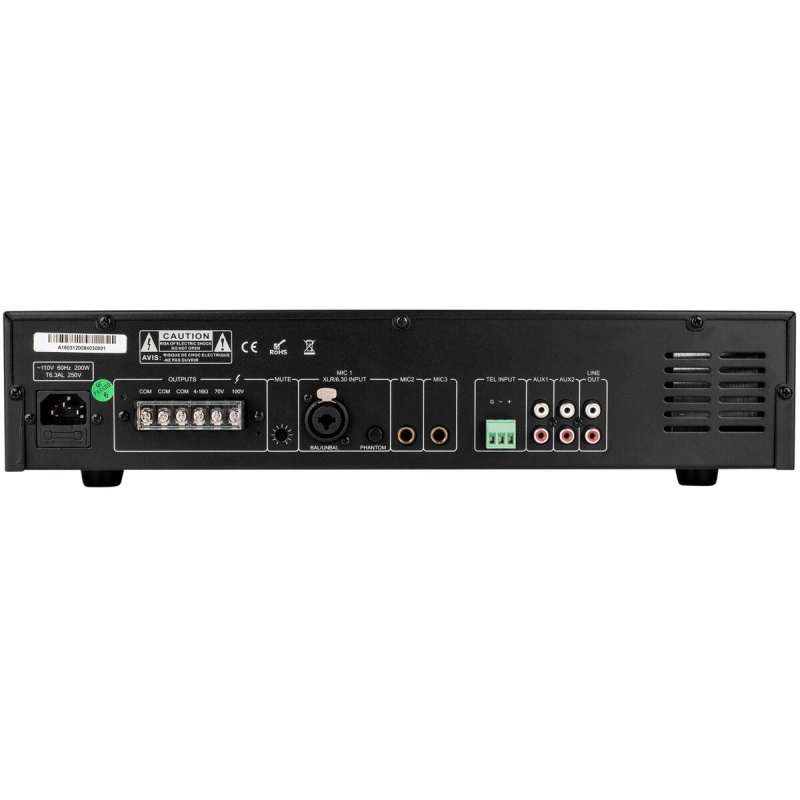

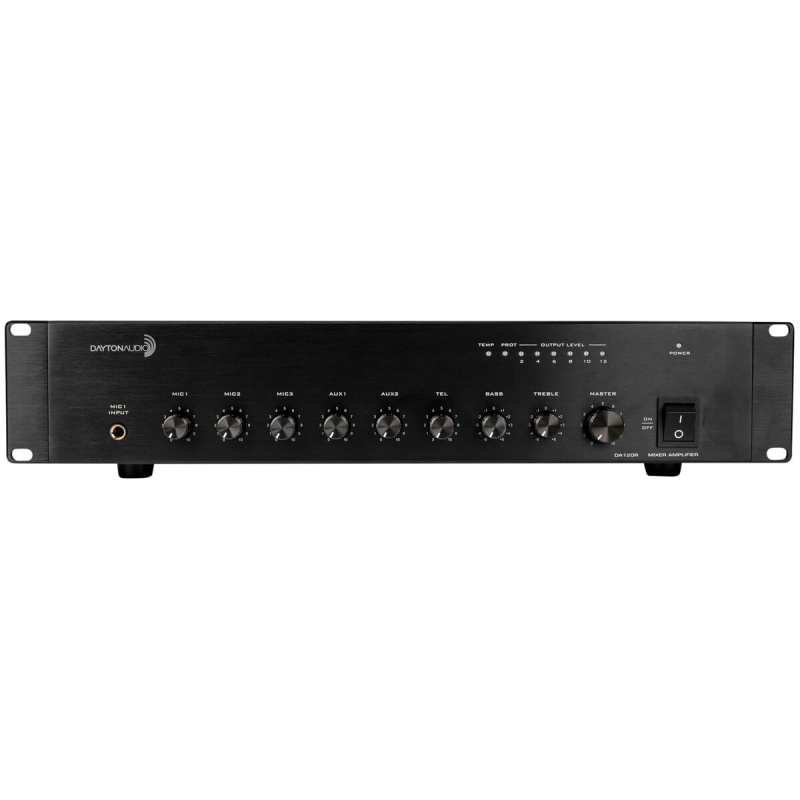

Perfectly Paired for Installations Utilizing the DA120R amp and IO655 speakers, this bundle provides you with both a powerful yet flexible system. With 120 watts of power, the DA120R is a workhorse of a commercial amp with both high and low impedance outputs. Both 70/100 volt and 4-16 compatibility allow the amp to be used with both 70 volt speakers as well as residential 8 ohm speakers. The amp features two 1/4" XLR/TRS jacks, two RCA AUX connections, and terminal block telephone inputs to allow you to connect a variety of sources. Priority music muting allows you to temporarily duck background music while paging which makes speech intelligibility much clearer. You can run up to 60 speakers when tapped at 2 watts. The easy-to-use design and slick 2RU chassis cut installation time which makes it simple to integrate into a current system or to design a new system around.

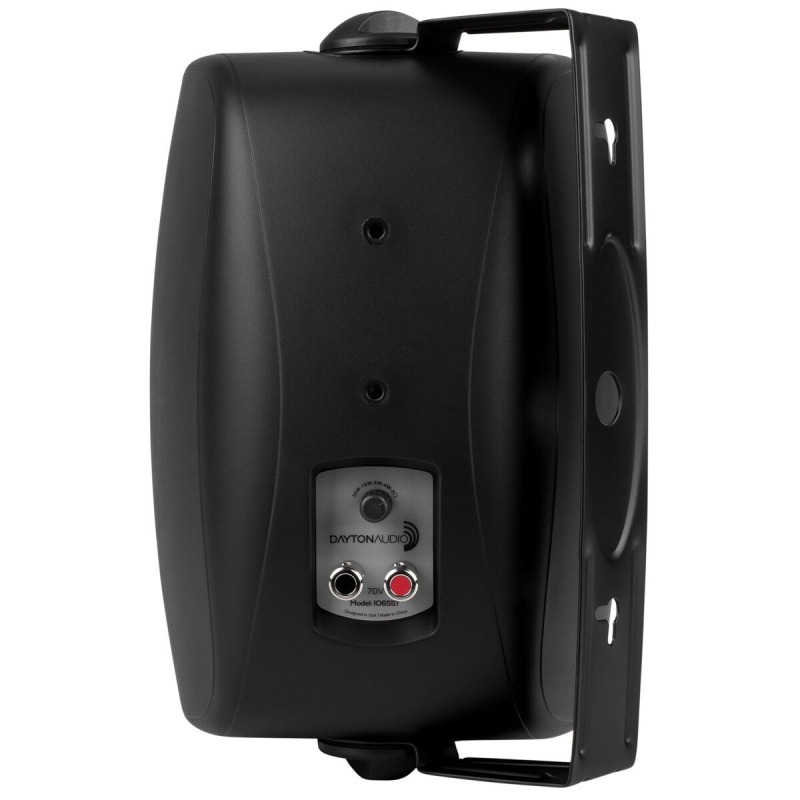

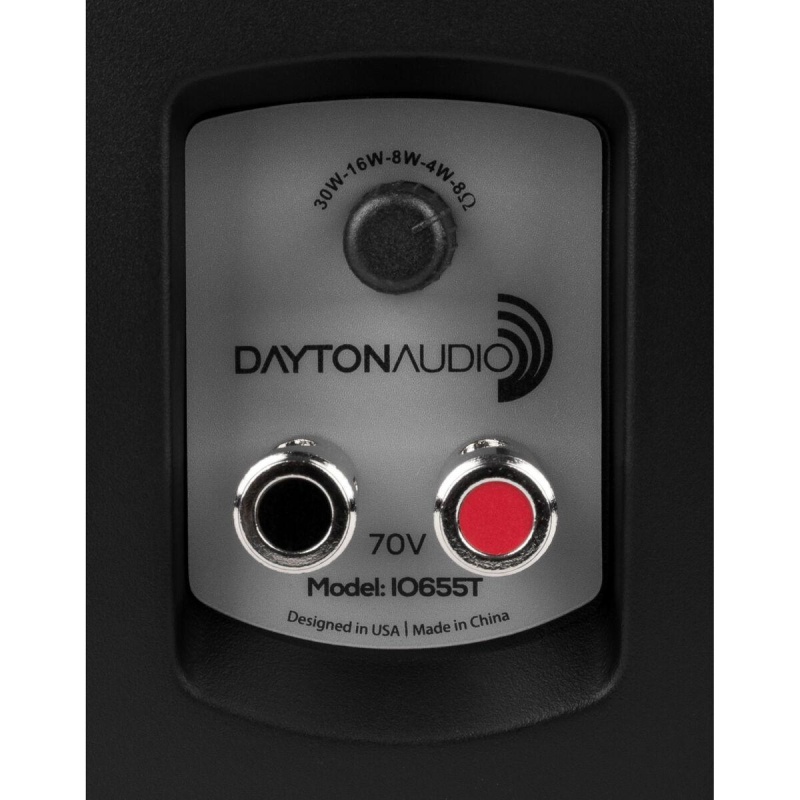

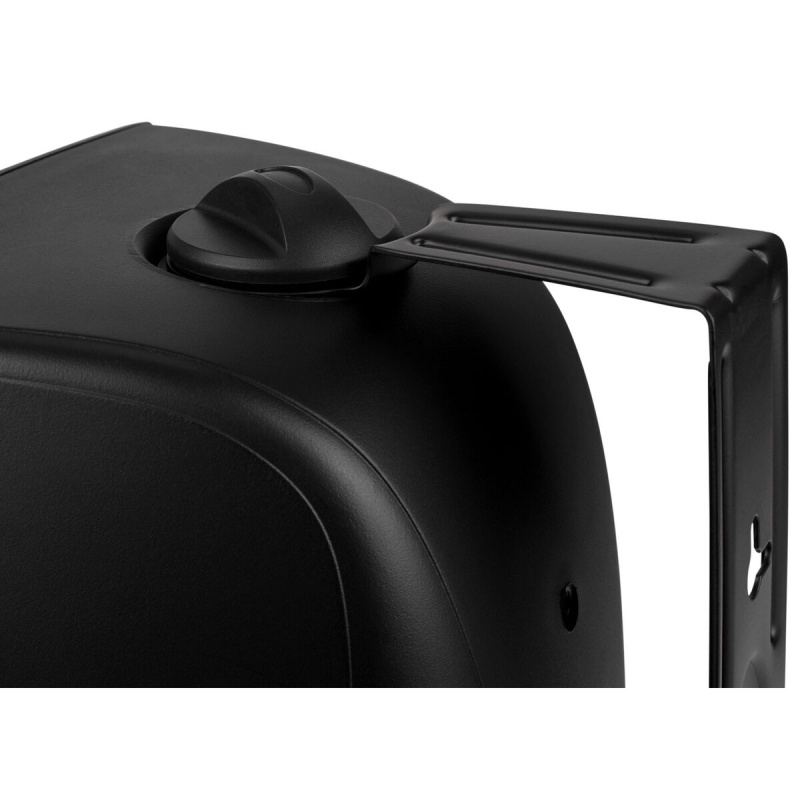

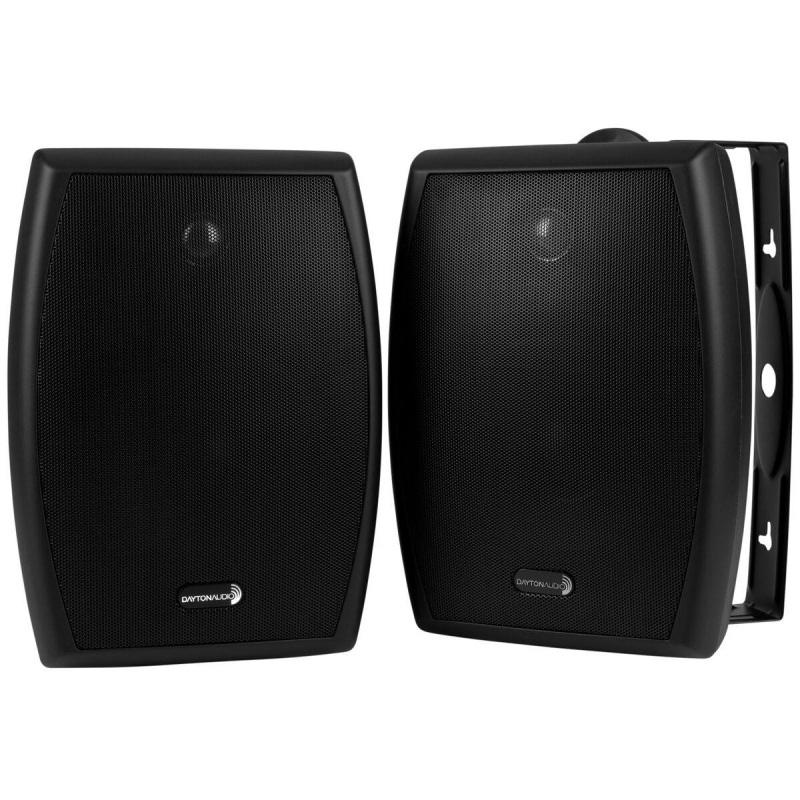

The Dayton Audio IO655 indoor/outdoor speakers are a great companion speaker for the DA120R. Providing excellent sonic performance in a compact, easy to mount enclosure, the IO655 6-1/2" 2-way speakers are an installer's dream. With a weather-resistant ABS construction, the speakers are able to withstand environmental abuse ensuring years or reliable use both indoors and outdoors. The speakers feature both a 70 volt multi-tap transformer and an 8 ohm bypass option which gives you the flexibility to use in both commercial and residential applications. Each speaker comes with a yoke-style mount bracket, stainless steel hardware, and corrosion-resistant nickel plated push terminals which make the speakers quick and simple to install.
Flexible and Easy to Install With this bundle you can count on a high-performing, flexible, and simple audio system that works equally as great for commercial and residential install applications. Parts Express provides you with the essential components for the backbone of background music and paging system perfect for schools, hospitals, retail stores, warehouses, and restaurants as well as patios, pools, and landscaped areas. Parts Express has taken out compatibility guesswork to ensure that you get the highest quality components for your next install at the absolute best prices.
Amplifier Specifications: • Maximum power output: 120W (1% THD) • Speaker output: 70V, 100V, 4 -16 ohm (mono, not to be used with mixed impedance loads) • Frequency response: 50 - 18,000 Hz • Mic input sensitivity/impedance: 5 mV, 600 ohms • Aux input sensitivity/impedance: 350mV, 10k ohms • Tel input sensitivity/impedance: 350mV, 10k ohms • Phantom power: +48V, switchable • Power input: 110 VAC, 60 Hz • Maximum power consumption: 100W • Dimensions: 19" W x 11.93" D x 3.466" H (484 x 303 x 88 mm) • Weight: 17.2 lbs. (7.8 kg).
Speaker Specifications: • 6-1/2" mineral-filled polypropylene woofer with rubber surround • 1" metalized Mylar dome tweeter • Power handling: 50 watts RMS/85 watts max • Frequency response: 45-20,000 Hz • Sensitivity: 87 dB 1W/1m • Tap settings: 4W, 8W, 16W, 30W, 8 ohm • Dimensions: 11" H x 8.25" W x 8.75".
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
