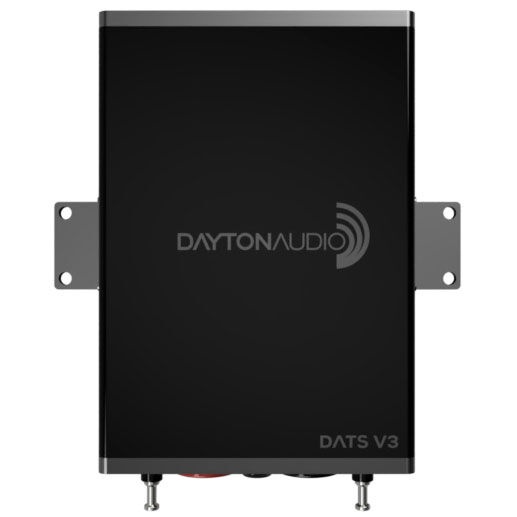

Dayton Audio DATS V3 is a computer-based speaker and audio component test system designed for accurate impedance and parameter measurement.

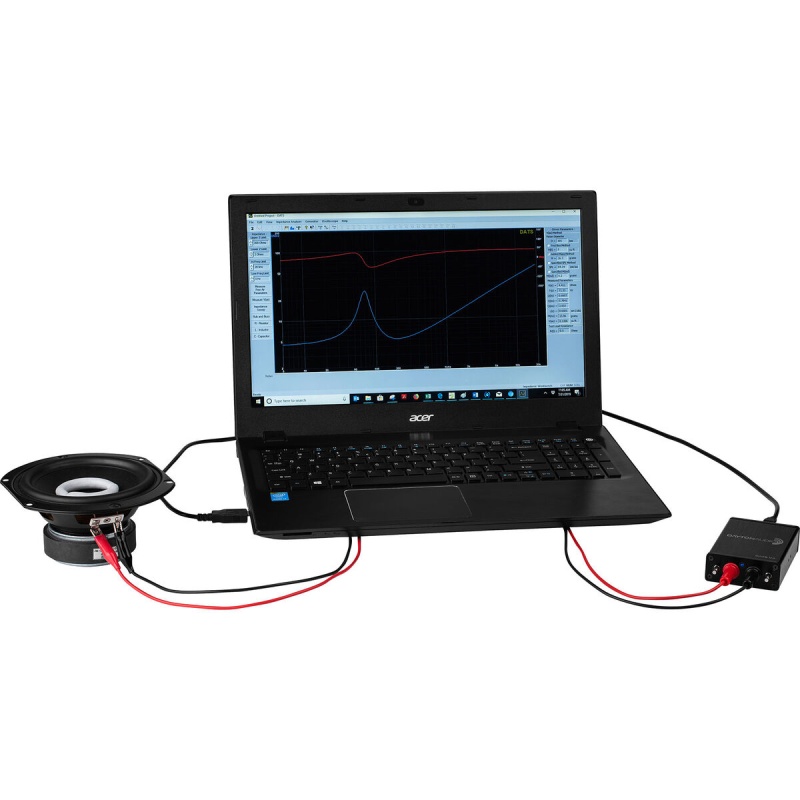

Use it to measure loudspeaker drivers, crossover networks, and complete audio systems. The software measures Thiele/Small parameters, supports the Linearity Test, and provides high-resolution impedance graphs with 30,000 data points from 1 Hz to 20,000 Hz.

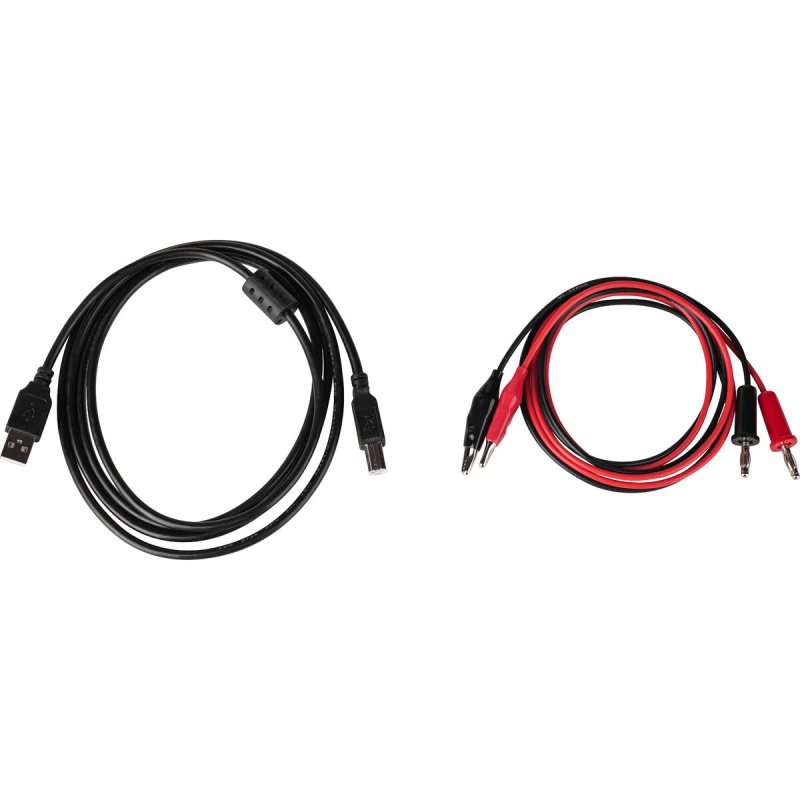

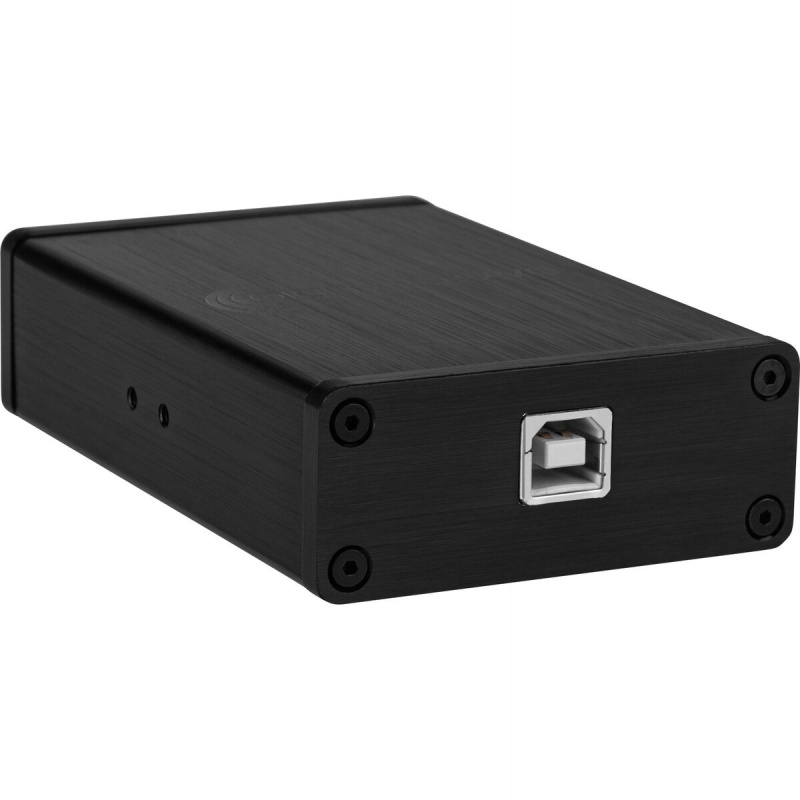

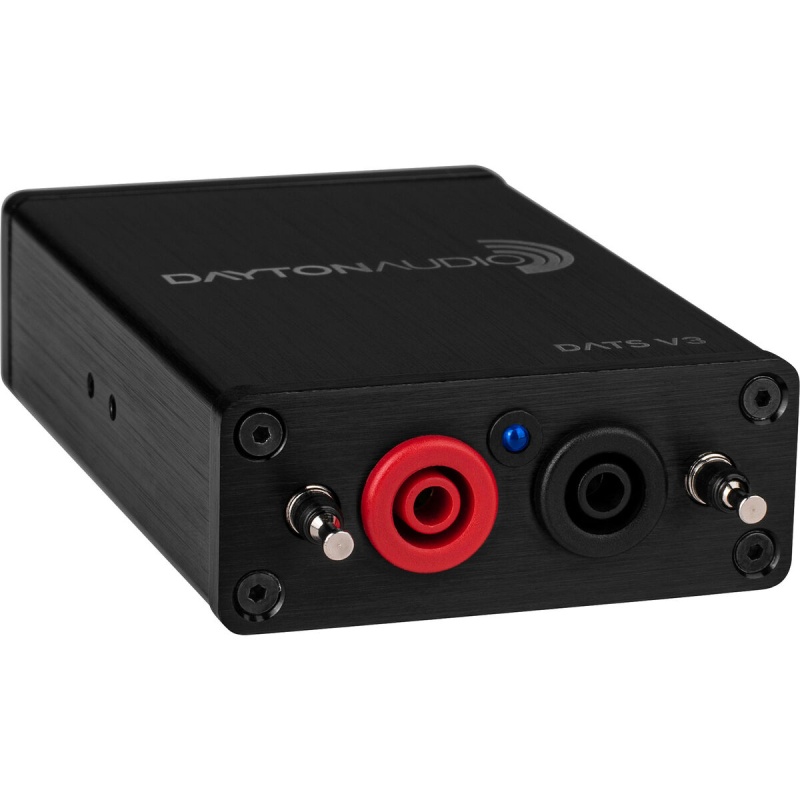

The rugged extruded aluminum housing includes detachable test leads, a built-in precision calibration resistor, and a USB-B jack with a USB A to B cable included. DATS V3 also works as a signal generator and oscilloscope, and it can measure capacitors from 0.002 uF to 10,000 uF, inductors from 0.05 mH to 100 mH, and resistors from 0.002 ohms up to 10,000 ohms.
Minimum system requirements: Windows Vista, 7, 8, or 10; 500 MHz Pentium III or equivalent processor; 64 MB RAM; one available USB 1.1 or 2.0 port. Not compatible with macOS.
