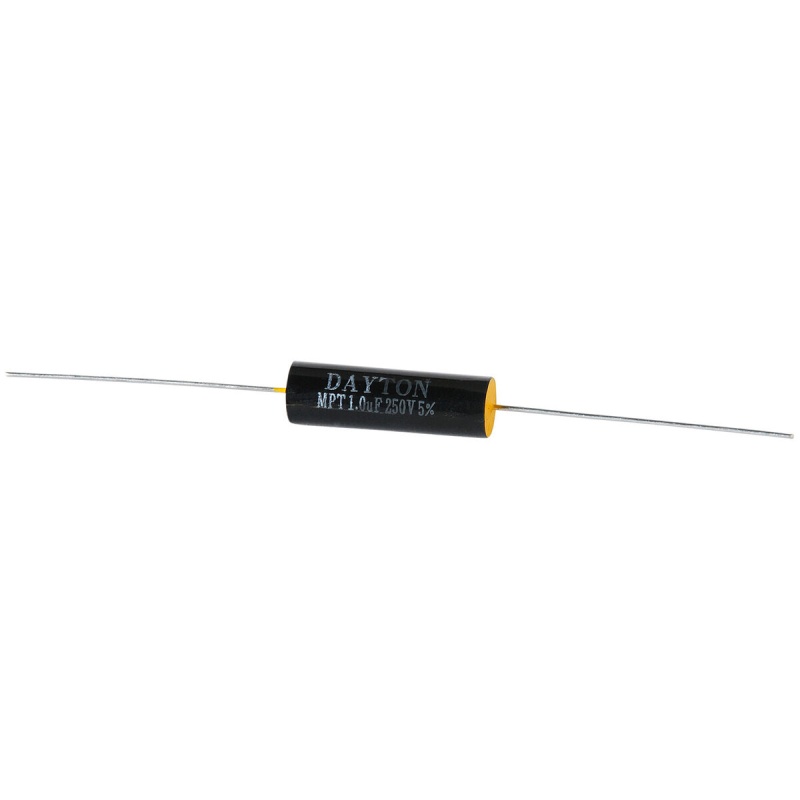

The Dayton Audio DMPC-1.0 is a 1.0 µF metallized polypropylene capacitor for loudspeaker crossover networks, bypassing large-value non-polarized electrolytics, and coupling in audio power amplifier or preamplifier signal paths.
It is rated at 250 VDC with ±5% tolerance. Dissipation factor: max 0.001 (0.1%) @ 1 KHz. Operating range: -55°C to 105°C. Dielectric strength: 150%. Insulation resistance: 10,000 M? x µF. Life test: 1,000 hours @ 85°C, 150% rated voltage. Dimensions: 10 mm Dia. x 30 mm L.
