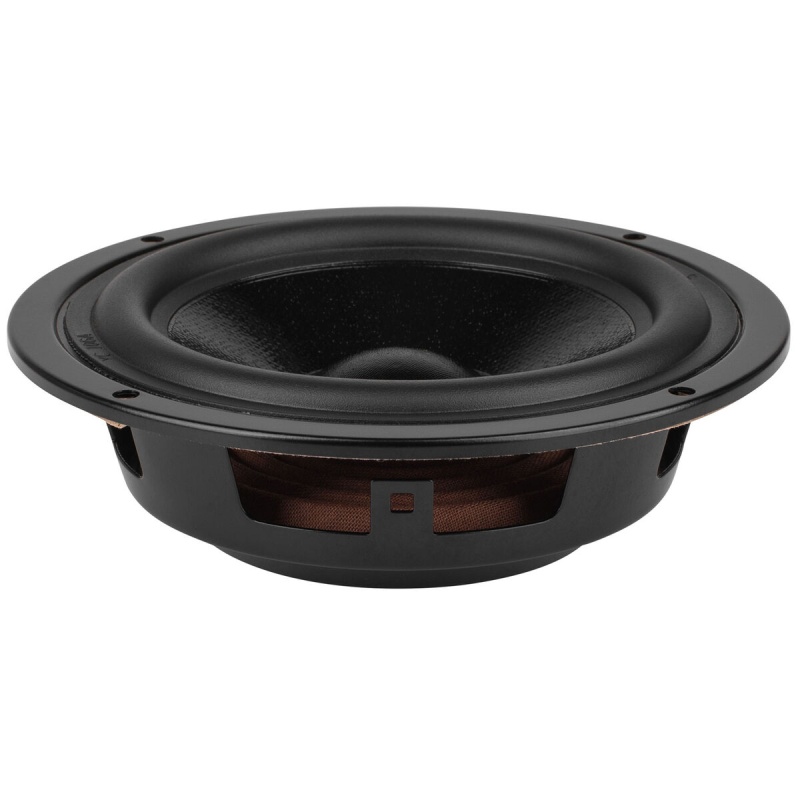

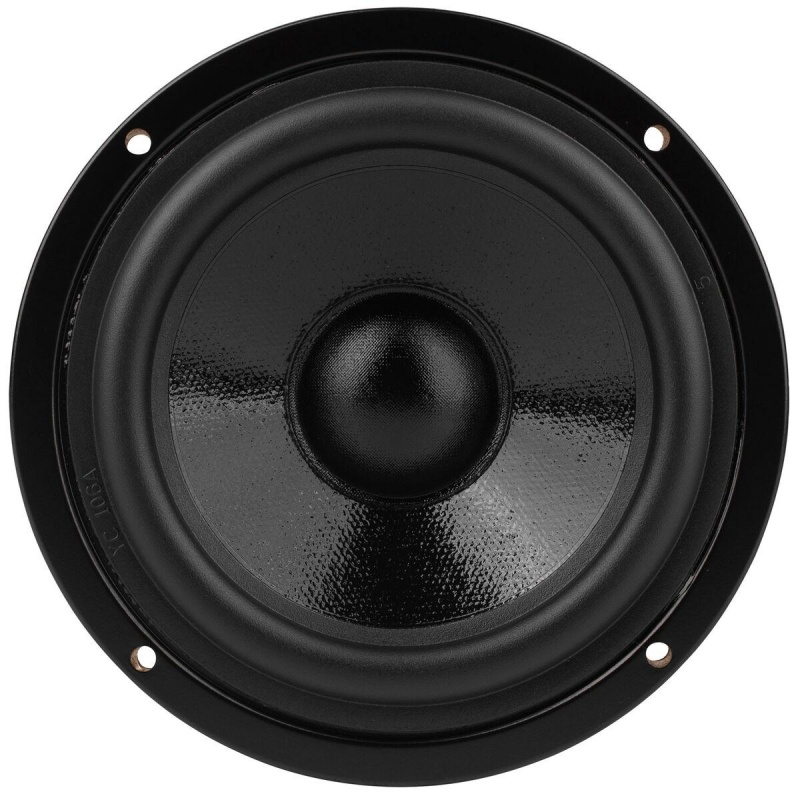

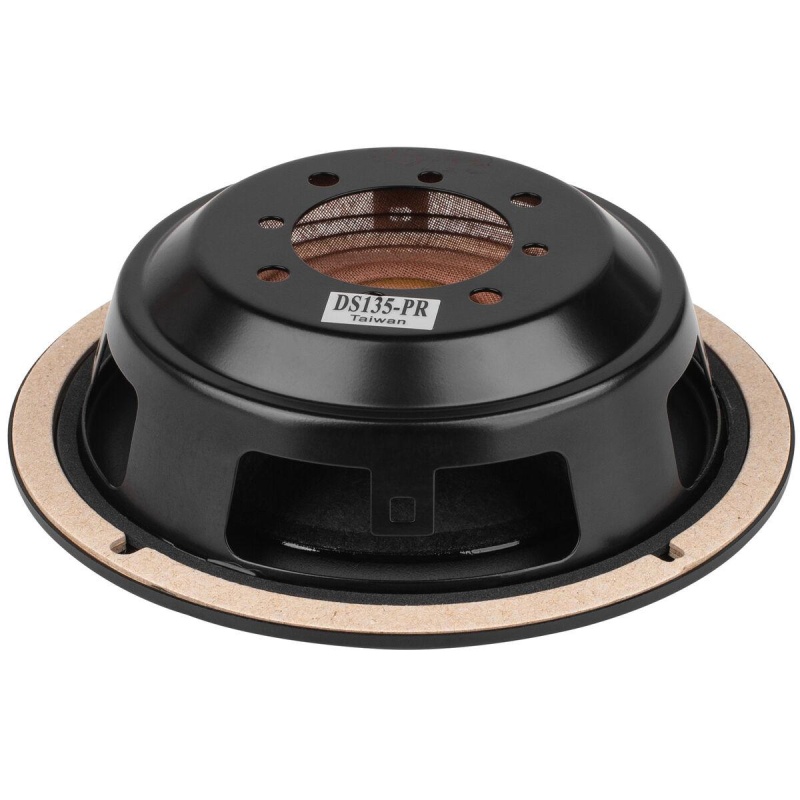

The Dayton Audio Designer Series passive radiator is a general-purpose 5-inch driver for replacement or new speaker construction. It matches Dayton Audio's Designer Series drives and has a poly coated paper cone with a medium-roll rubber surround for clean excursion and long life.

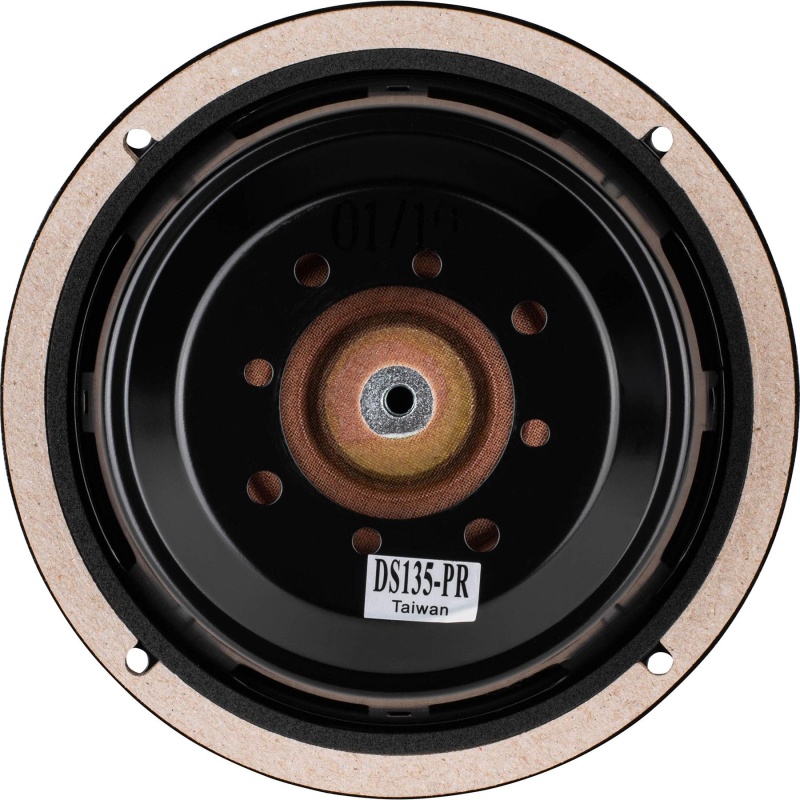

A built-in mass disc provides a starting point for many designs. The M5 threaded hole allows different types of weights to be added if desired, and a screw is included. Adding mass will decrease Fs and increase Qms. Overall diameter: 5.31", cutout diameter: 4.39", depth: 1.5".
Specifications: Fs: 27.7 Hz; Vas: 0.43 cu. ft.; Qms: 3.93; Cms: 1.52 mm/N; Rms: 1.0 kg/s; Mms: 21.8 g; Sd: 75.4 sq. cm.; Xmax: 8 mm. As a general rule, passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. Calculate Vd as Sd x Xmax = Vd.
