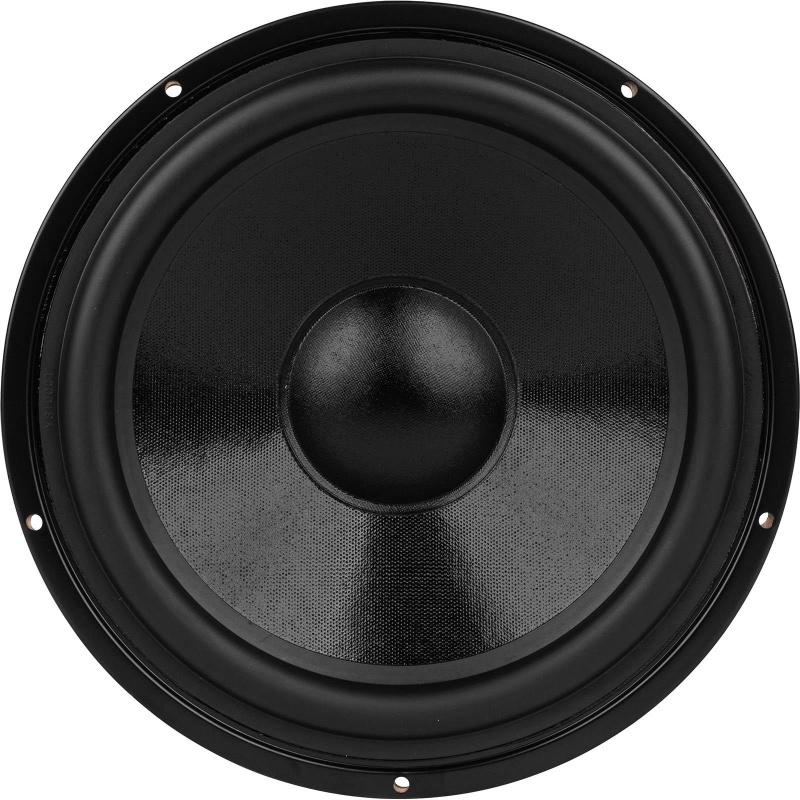

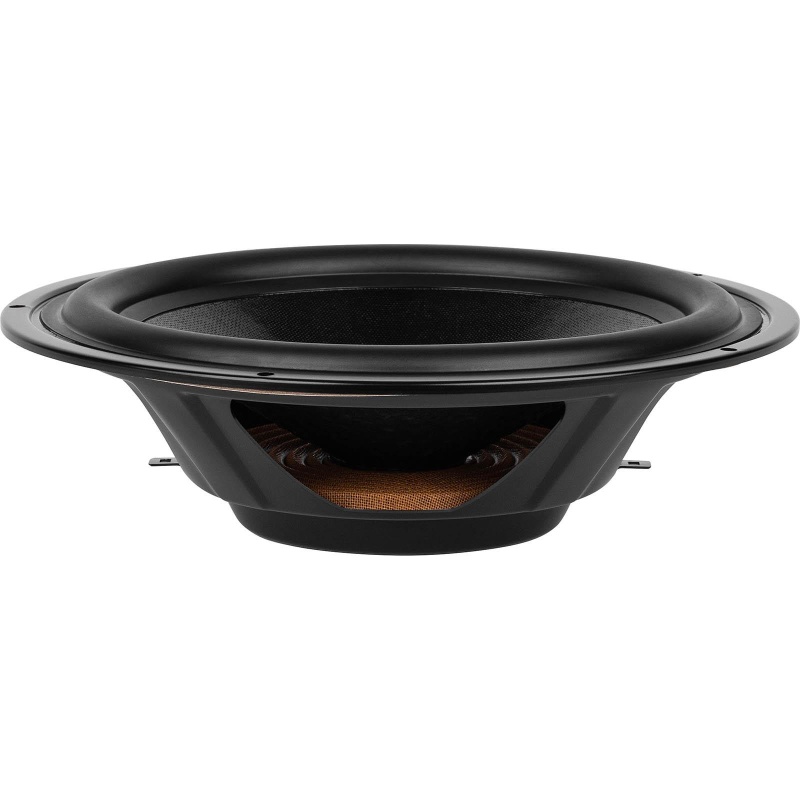

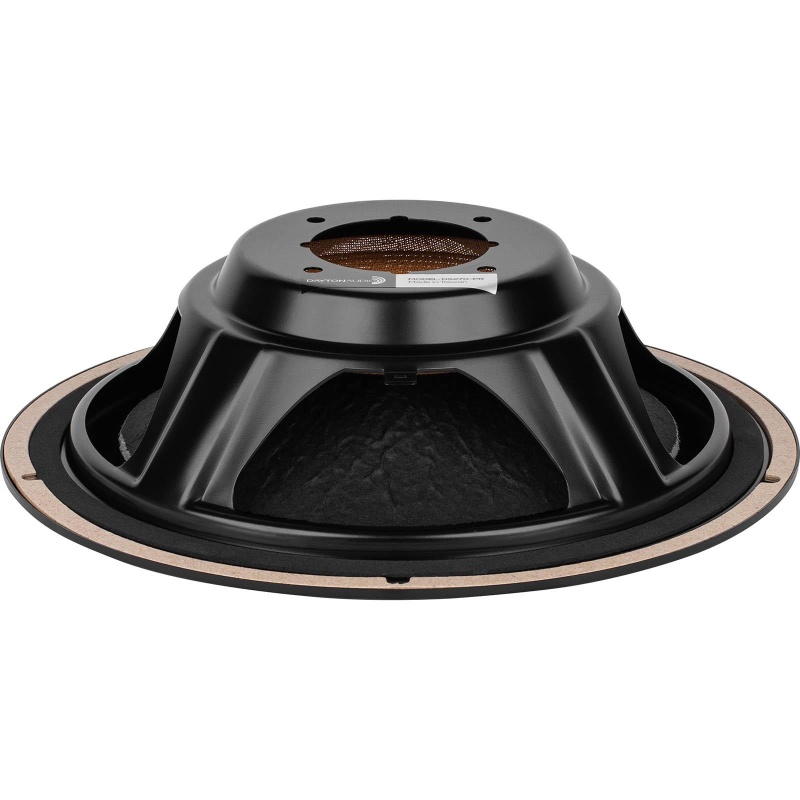

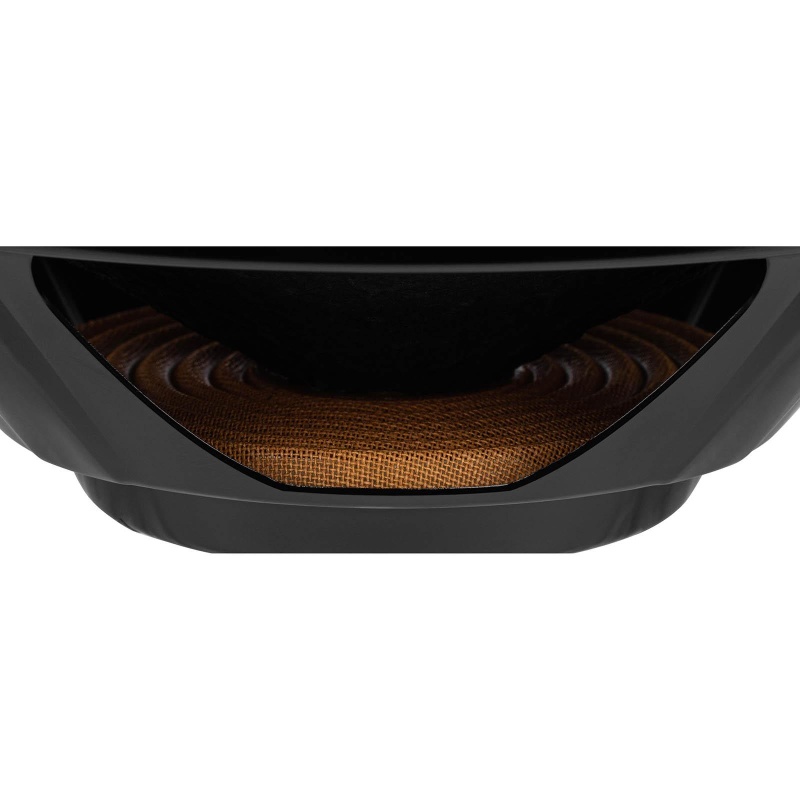

The Dayton Audio Designer Series passive radiator is a general-purpose option for replacement or new construction. Its built-in mass disc offers a starting point for many designs, and an M5 threaded hole with screw included allows weights to be added if desired.
It has a poly coated paper cone and medium-roll rubber surround, and matches the Shielded DVC line of subwoofers. Specifications: Fs: 21.9 Hz; Vas: 3.73 cu. ft.; Qms: 3.98; Cms: 0.60 mm/N; Rms: 3.1 kg/; Mms: 88.4 g; Sd: 353 sq. cm.; Xmax: 11 mm. Dimensions: Overall diameter: 10.63", Cutout diameter: 8.94", Depth: 2.81".
Adding mass to the passive radiator will decrease Fs and increase Qms. As a general rule, passive radiators should be able to move double the volume of air as the active woofer(s)/subwoofer(s). For example, a passive radiator system for a 10" woofer/subwoofer with 10mm of X-max would require 2-10" passive radiators with 10mm of X-max. Single passive radiator systems commonly use a passive radiator larger than the active woofer(s)/subwoofer(s).
