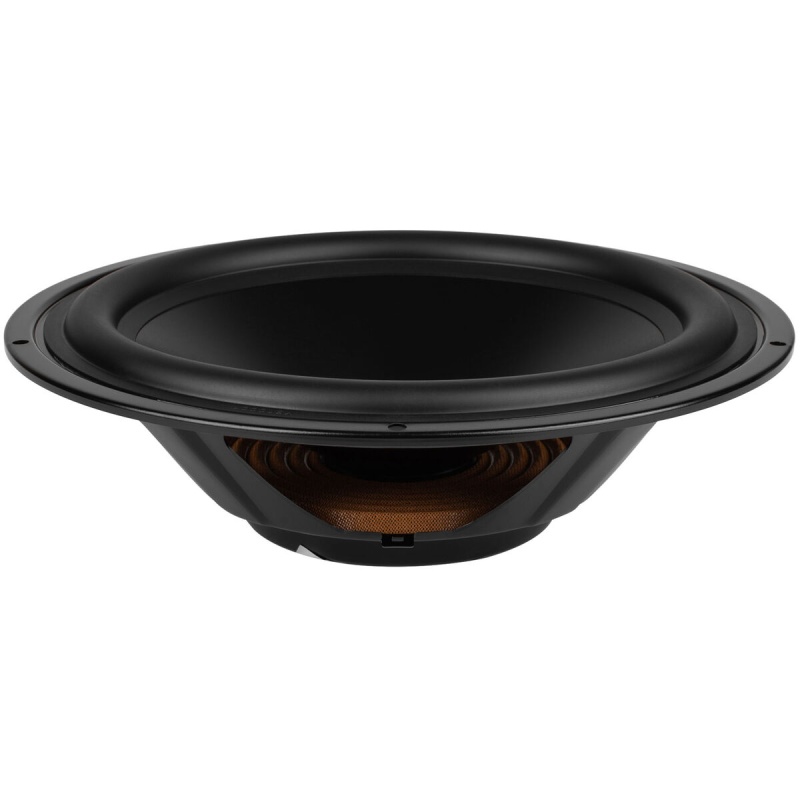

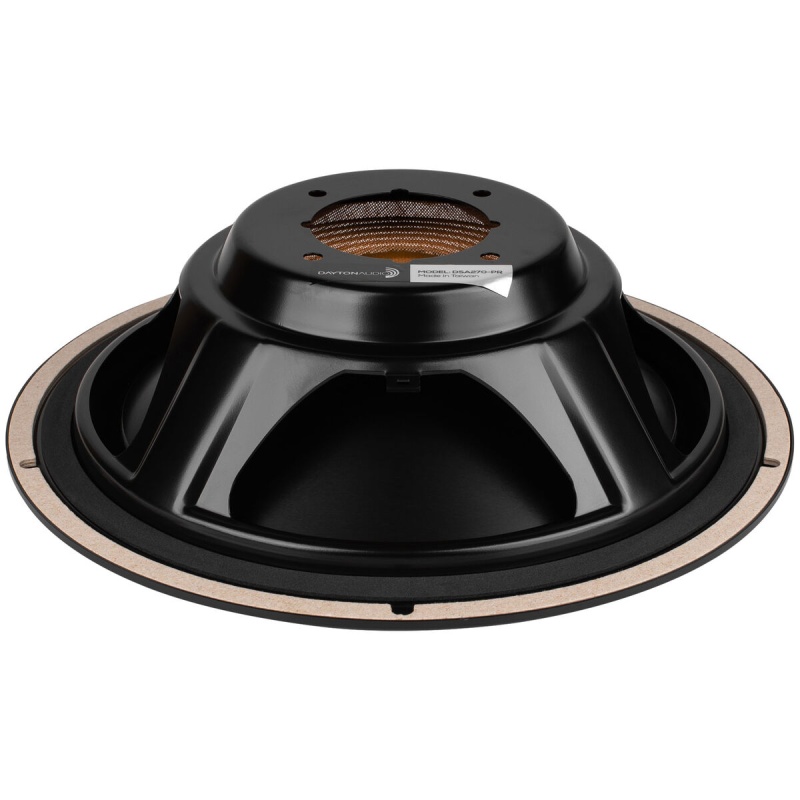

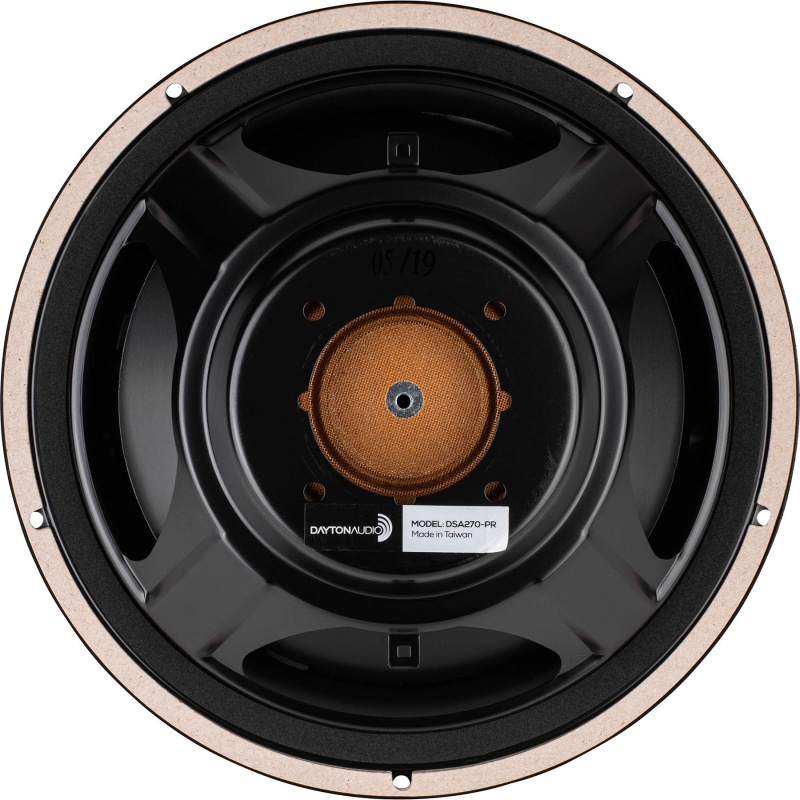

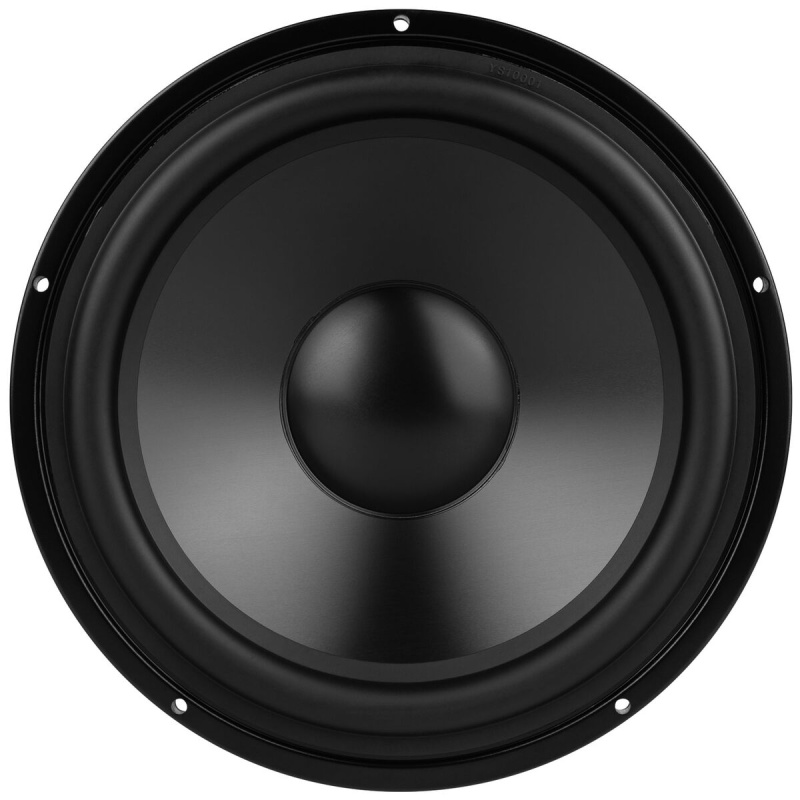

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from full size tower designs to compact subwoofer systems.
Specifications: • Fs: 21.9 Hz • Vas: 3.74 ft³ • Qms: 5.26 • Cms: 0.60 mm/N • Rms: 2.3 kg/s • Mms: 88.4 g • Sd: 353 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 10.63", Cutout diameter: 8.94", Depth: 2.87".
Note: Adding mass to the passive radiator will decrease Fs and increase Qms.
Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
